Headlight Assembly: Removal

WARNING: This page is about a different car, the 2004 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground cable from battery.
  2. Remove the air intake duct (when right side headlight is removed).
  3. Remove the front grille and headlight side cover < Ref. to REMOVAL , Front Grille . > < Ref. to REMOVAL , Front Bumper .>
  4. Disconnect the headlight bulb connector.

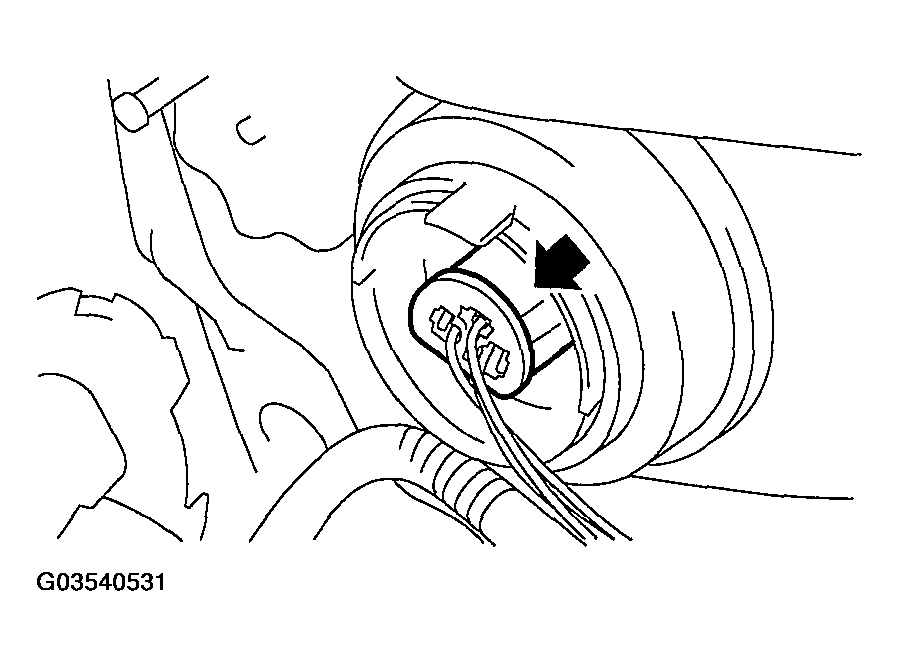

    Fig 1: Disconnecting Headlight Bulb Connector
    G03540531Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the three bolts and disconnect connectors, and then detach the headlight assembly.

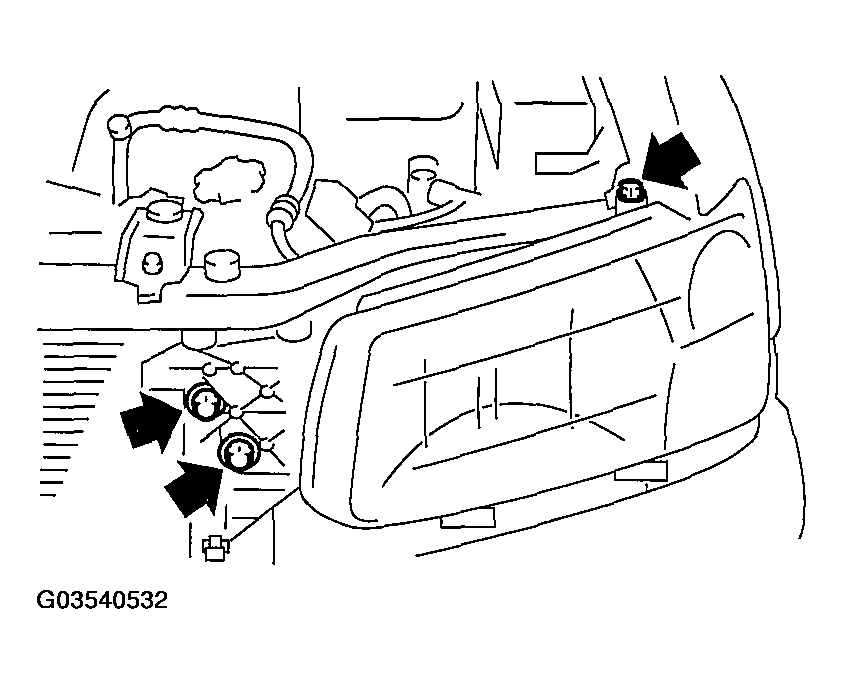

    Fig 2: Identifying Bolts
    G03540532Courtesy of SUBARU OF AMERICA, INC.
