Spot Map Light: Removal

WARNING: This page is about a different car, the 2004 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground cable from battery.
  2. Insert a flat tip screwdriver to slot of lens, and then pry the lens to remove.
    Fig 1: Inserting A Flat Tip Screwdriver To Slot Of Lens
    G03540553Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the spot map light installation screws.

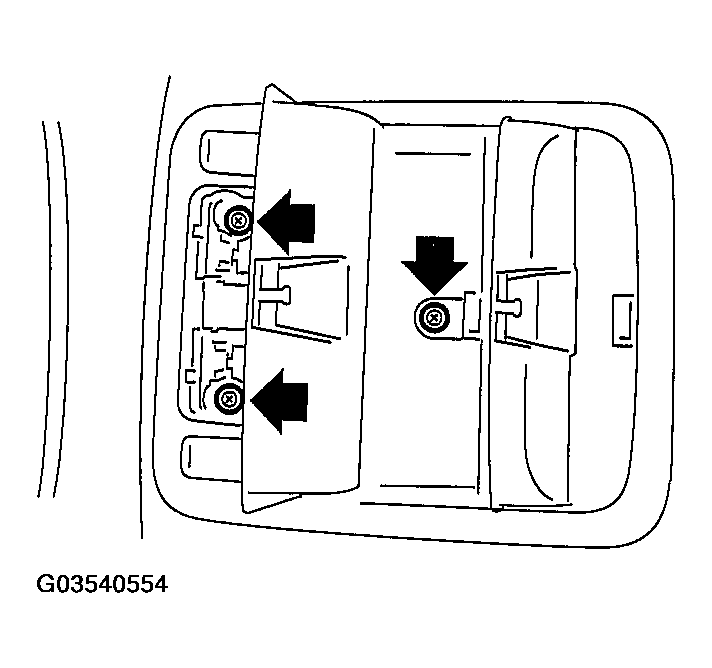

    Fig 2: Identifying Spot Map Light Installation Screws
    G03540554Courtesy of SUBARU OF AMERICA, INC.
  4. Disconnect the harness connectors and remove the spot map light.
