Differential Case Assembly

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Using a press and ST, remove the taper roller bearing.
ST 498077000 REMOVER

Fig 1: Removing Taper Roller Bearing Using Press & ST
Courtesy of SUBARU OF AMERICA, INC.

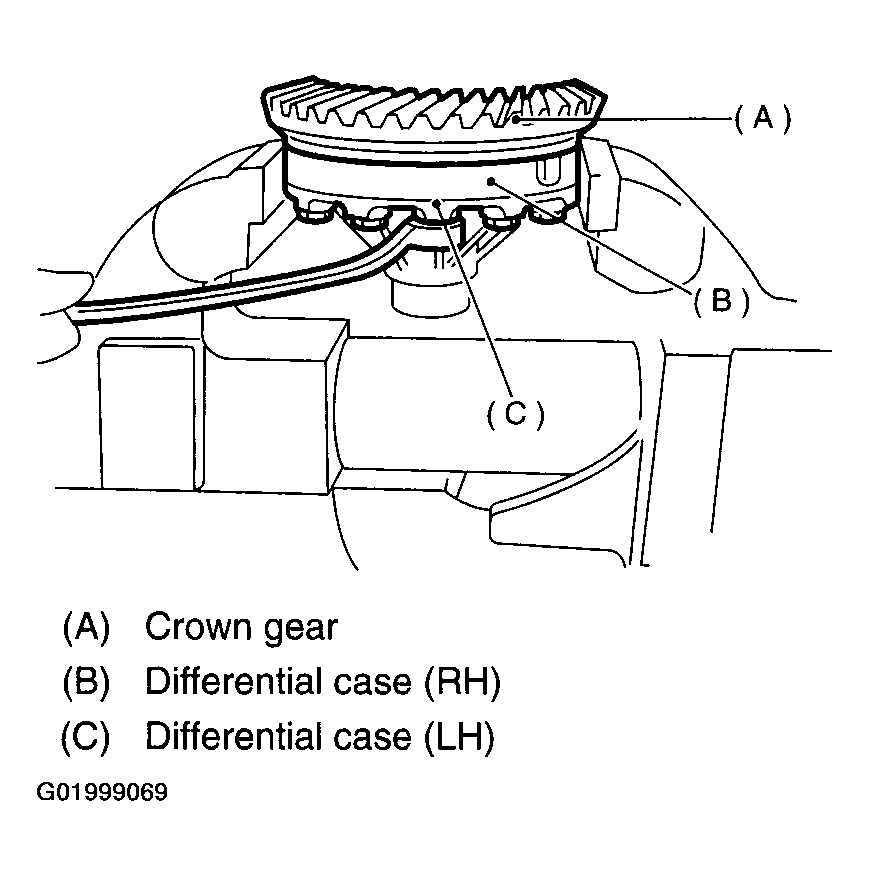

Secure the case in a vise and remove the crown gear tightening bolts, then separate the crown gear into case (RH) and case (LH).

Fig 2: Removing Crown Gear
Courtesy of SUBARU OF AMERICA, INC.
Pull out the straight pin and shaft, and remove the differential bevel gear, washer, and differential bevel pinion.

Fig 3: Removing Differential Bevel Gear, Washer & Pinion
Courtesy of SUBARU OF AMERICA, INC.
