Steering Angle: Adjustment

WARNING: This page is about a different car, the 2003 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the tie-rod to adjust steering angle of both inner and outer wheels.
  2. Check the toe-in.
NOTE: Correct the boot if it is twisted.

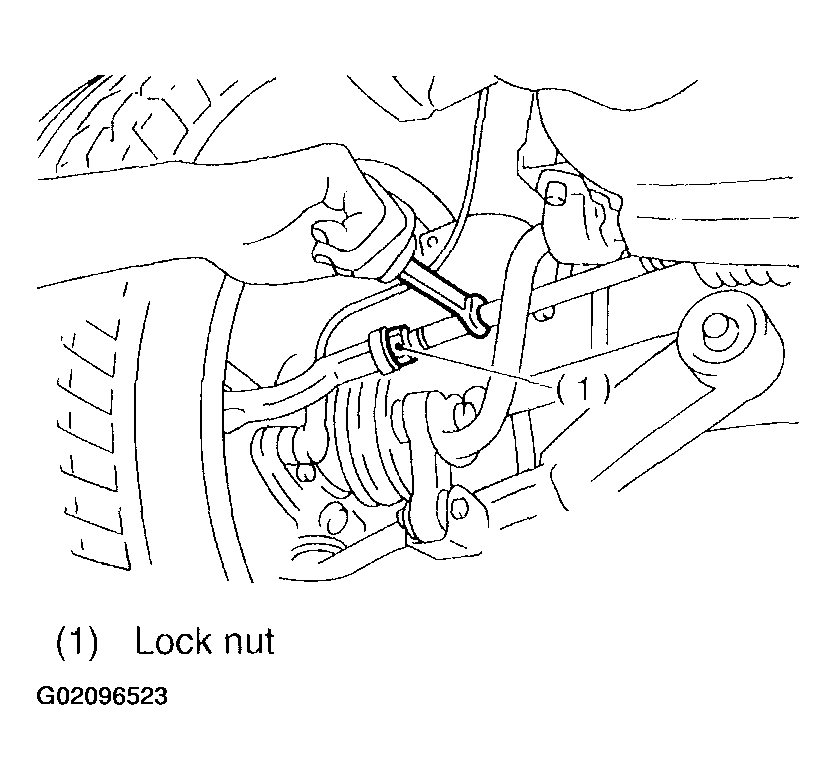

Fig 1: Turning Tie-Rod To Adjust Steering Angle Of Both Inner & Outer Wheels
G02096523Courtesy of SUBARU OF AMERICA, INC.
