Transfer Case
WARNING: This page is about a different variant/trim than selected.
Neutral position adjustment
TRANSFER CASE ADJUSTING SHIM THICKNESS SPECIFICATIONS
| Part No. |
Thickness mm (in) |
| 32190AA000 |
0.15 (0.0059) |
| 32190AA010 |
0.30 (0.0118) |
Courtesy of SUBARU OF AMERICA, INC.

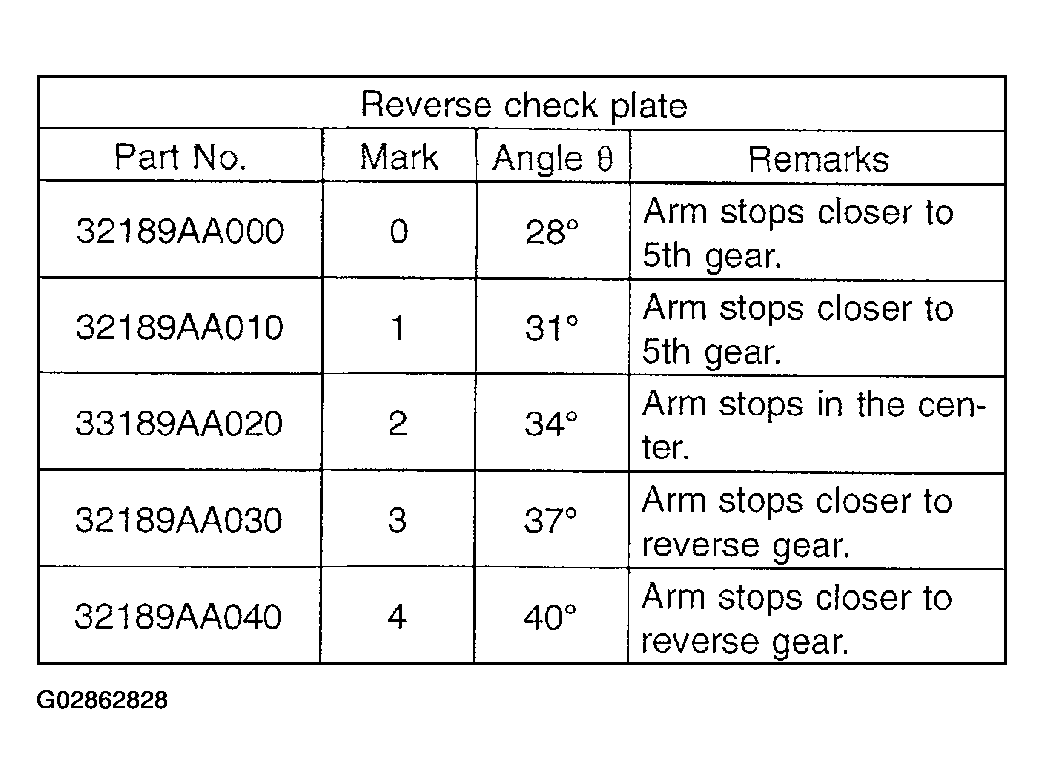

Reverse check plate adjustment
Courtesy of SUBARU OF AMERICA, INC.
