Section 2 (Clutch System): Flywheel: Removal

WARNING: This page is about a different variant/trim than selected.

Remove transmission assembly. Refer to REMOVAL under MANUAL TRANSMISSION ASSEMBLY .
Install ST on flywheel.
ST 498497100: CRANKSHAFT STOPPER

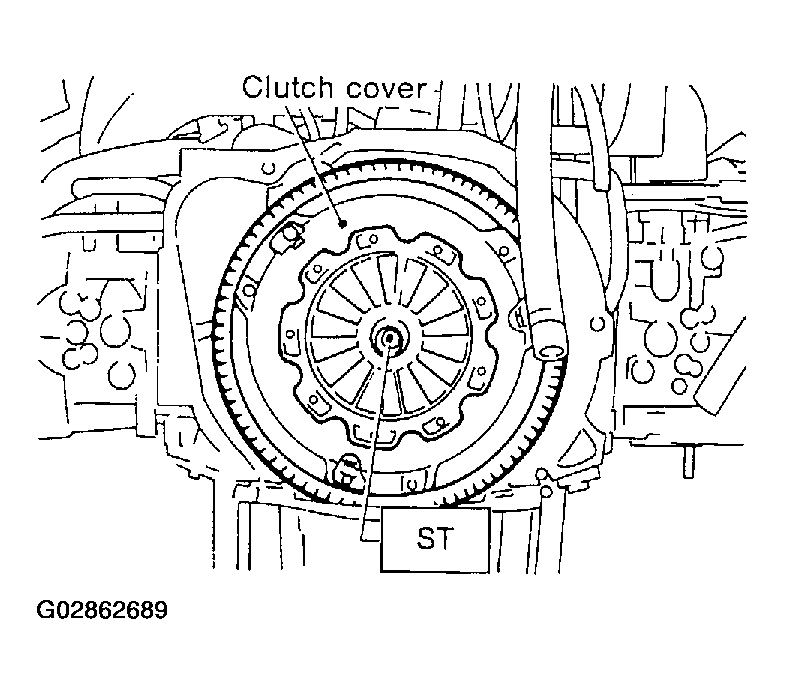

Fig 1: Removing Clutch Cover And Clutch Disc
Courtesy of SUBARU OF AMERICA, INC.
Remove clutch cover and clutch disc. Refer to REMOVAL under CLUTCH DISC AND COVER .
CAUTION:
- Take care not to allow oil on the clutch disc facing.
- Do not disassemble either clutch cover or clutch disc.
Using ST, remove flywheel.
ST 498497100: CRANKSHAFT STOPPER

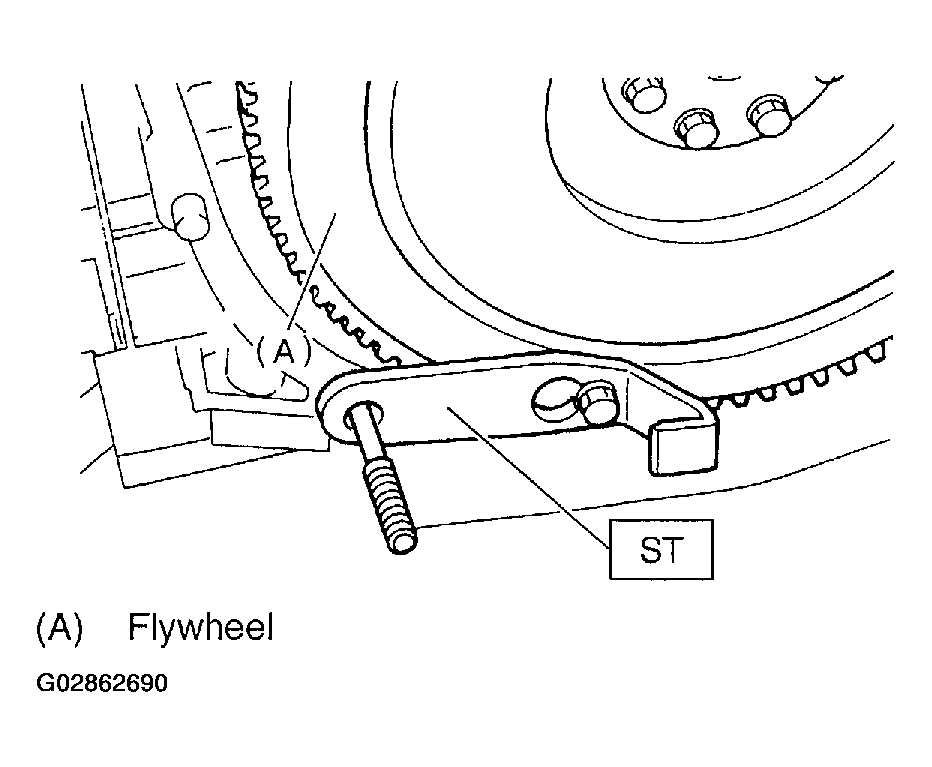

Fig 2: Removing Flywheel

Courtesy of SUBARU OF AMERICA, INC.
