Master Cylinder: Installation

WARNING: This page is about a different variant/trim than selected.

Install master cylinder to body, and install clutch pipe to master cylinder.
CAUTION: Check that pipe is routed properly.

Tightening torque:
1. T1: 15 N.m (1.5 kgf-m, 10.8 ft-lb)
2. T2: 18 N.m (1.8 kgf-m, 13.0 ft-lb)

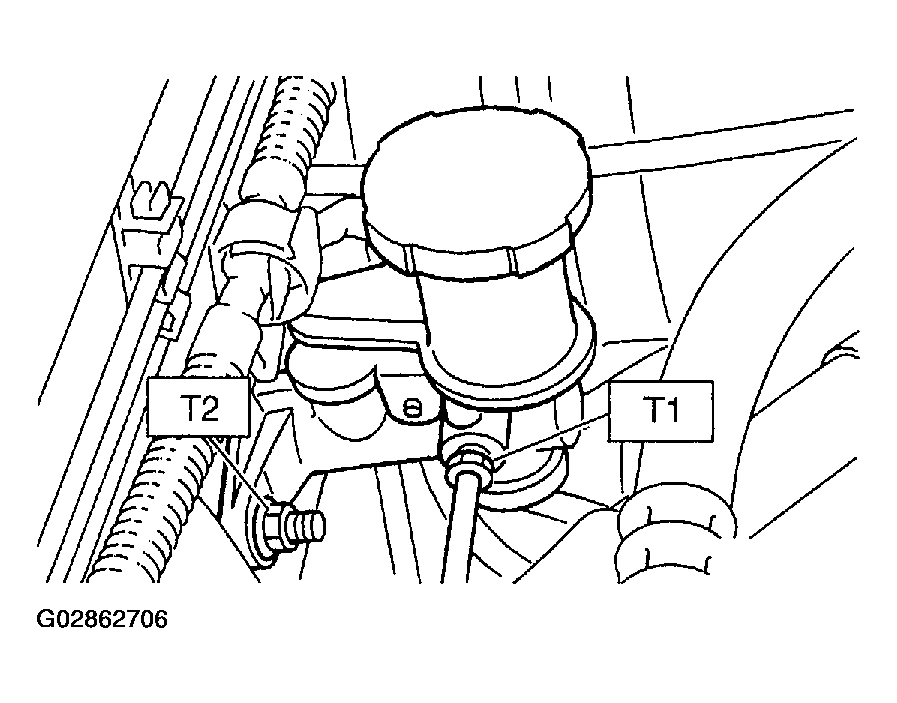

Fig 1: Installing Clutch Pipe To Master Cylinder
Courtesy of SUBARU OF AMERICA, INC.
Connect push rod of master cylinder to clutch pedal, and install clevis pin and snap pin.
NOTE: Apply grease to clevis pin.

Fig 2: Installing Snap Pin, Clevis Pin And Push Rod Of Master Cylinder To Clutch Pedal
Courtesy of SUBARU OF AMERICA, INC.
After bleeding air from operating cylinder, ensure that clutch operates properly. Refer to CLUTCH FLUID AIR BLEEDING .
Install air cleaner case. Refer to INSTALLATION under AIR CLEANER CASE . . >
