Operating Cylinder: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove air cleaner case. Refer to REMOVAL under AIR CLEANER CASE .
  2. Remove clutch hose from operating cylinder.
    CAUTION: Cover hose joint to prevent clutch fluid from flowing out.

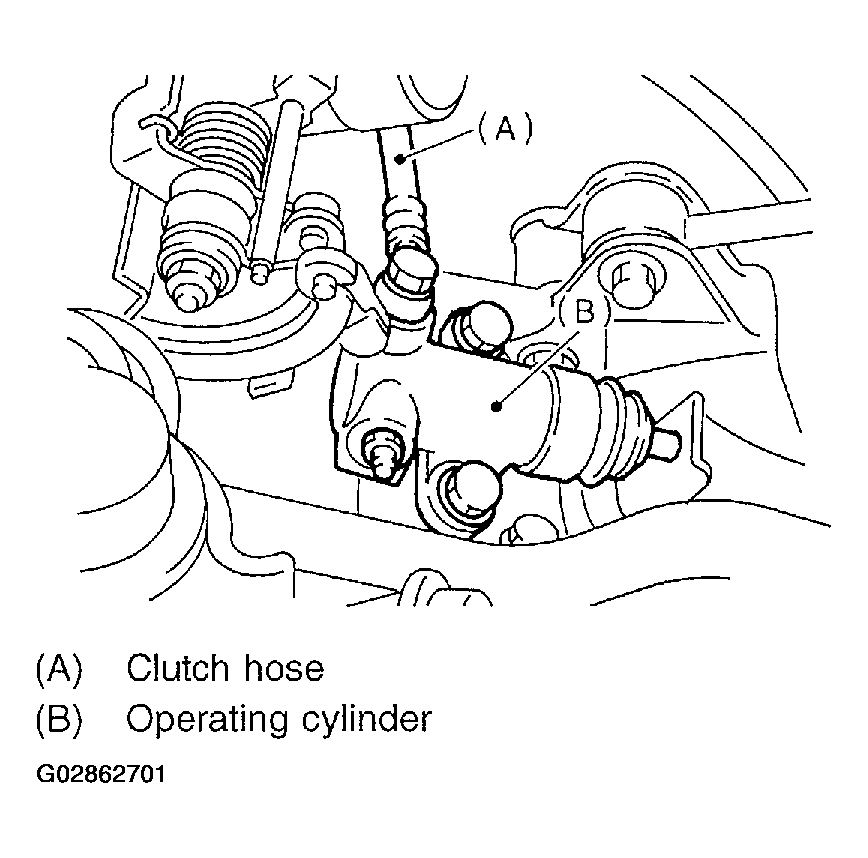

    Fig 1: Removing Clutch Hose From Operating Cylinder
    G02862701Courtesy of SUBARU OF AMERICA, INC.
  3. Remove operating cylinder from transmission.

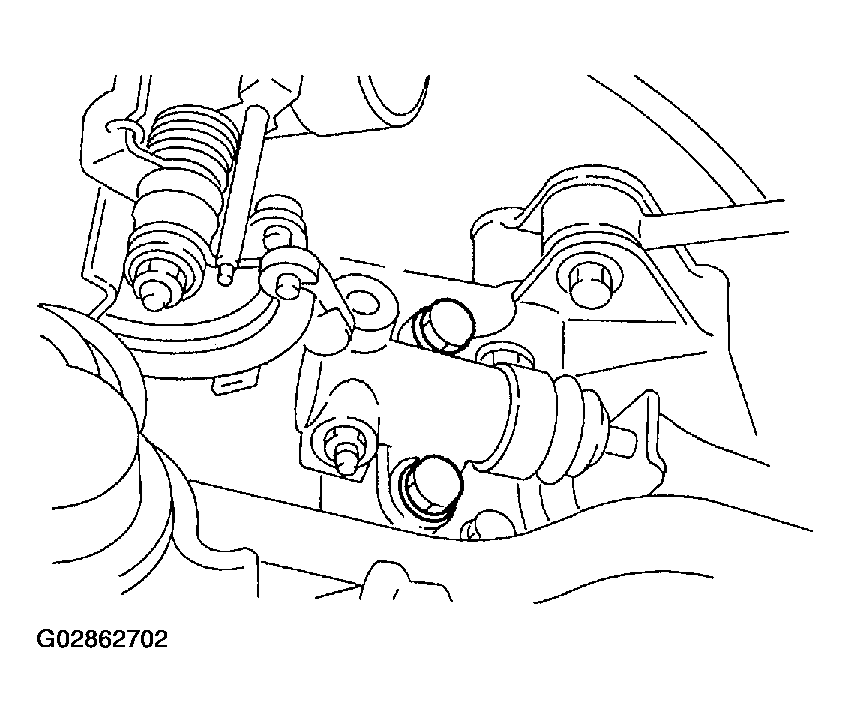

Fig 2: Removing Operating Cylinder From Transmission
G02862702Courtesy of SUBARU OF AMERICA, INC.
