Front Suspension: Overhaul: Knuckle/Hub: Reassembly

  1. Attach hub to hub stand. See Fig 1.
    CAUTION: Be sure to press hub bolts until their seating surfaces contact the hub.
    NOTE: Use .47" (12 mm) diameter holes in hub stand to prevent bolts from tilting.
  2. Using a hydraulic press, press new hub bolts into place.
  3. Clean dust or foreign particles from inside the housing.
    CAUTION:
    • Always press outer race when installing bearing.
    • Be careful not to remove plastic lock from inner race when installing bearing.
    • Charge bearing with new grease when outer race is not removed.
  4. Using housing stand and bearing remover, press a new bearing into place. See Fig 2.
    1. Specified grease: SHELL 6459N
    CAUTION: Make sure to install it firmly to groove. Install without scratching axle housing.
  5. Using pliers, install snap ring in its groove. See Fig 3.
  6. Using oil seal installer and housing stand, press inner oil seal until it contacts circlip. See Fig 4.
  7. Invert housing stand.
  8. Using oil seal installer and housing stand, press outer oil seal until it contacts the bottom of housing. See Fig 5.
    CAUTION: If specified grease is not available, remove bearing grease and apply Auto Rex A instead. DO NOT mix different types of grease.
  9. Apply sufficient grease to oil seal lip.
    1. Specified grease: SHELL 6459N
  10. Install disc cover to housing the 3 bolts.
  11. Attach hub to hub stand securely.
  12. Clean dust or foreign particles from the polished surface of hub.
  13. Using hub installer, press bearing into hub by driving inner race. See Fig 6.
Fig 1: Securing Hub To Hub Stand
G00329278Courtesy of SUBARU OF AMERICA, INC.
Fig 2: Pressing New Bearing Into Place
G00329279Courtesy of SUBARU OF AMERICA, INC.

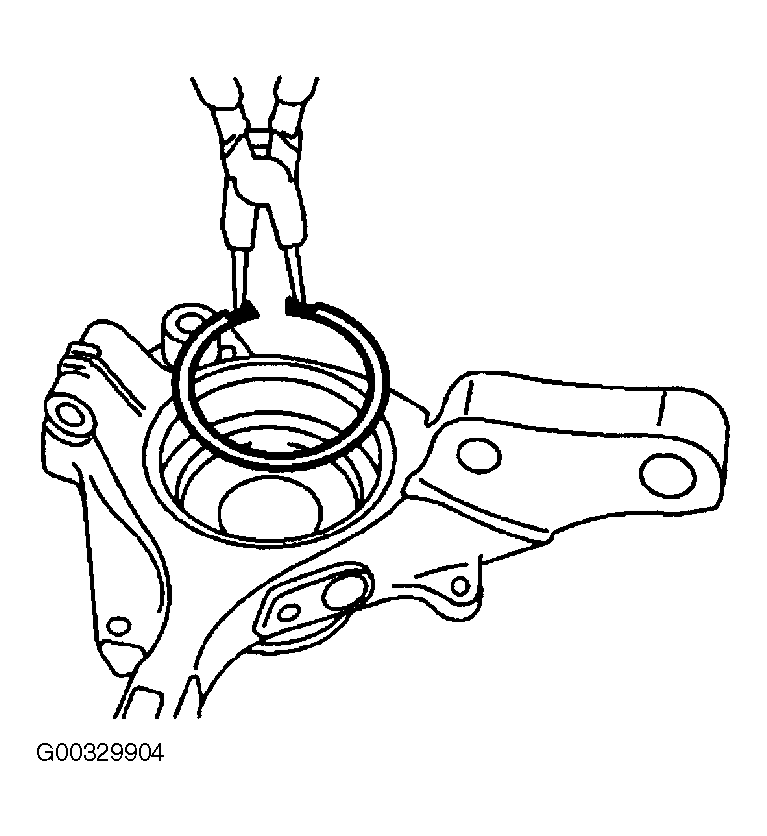

Fig 3: Installing Snap Ring In Groove
G00329904Courtesy of SUBARU OF AMERICA, INC.
Fig 4: Pressing Inner Oil Seal Until It Contacts Circlip
G00329905Courtesy of SUBARU OF AMERICA, INC.
Fig 5: Pressing Outer Oil Seal
G00329906Courtesy of SUBARU OF AMERICA, INC.

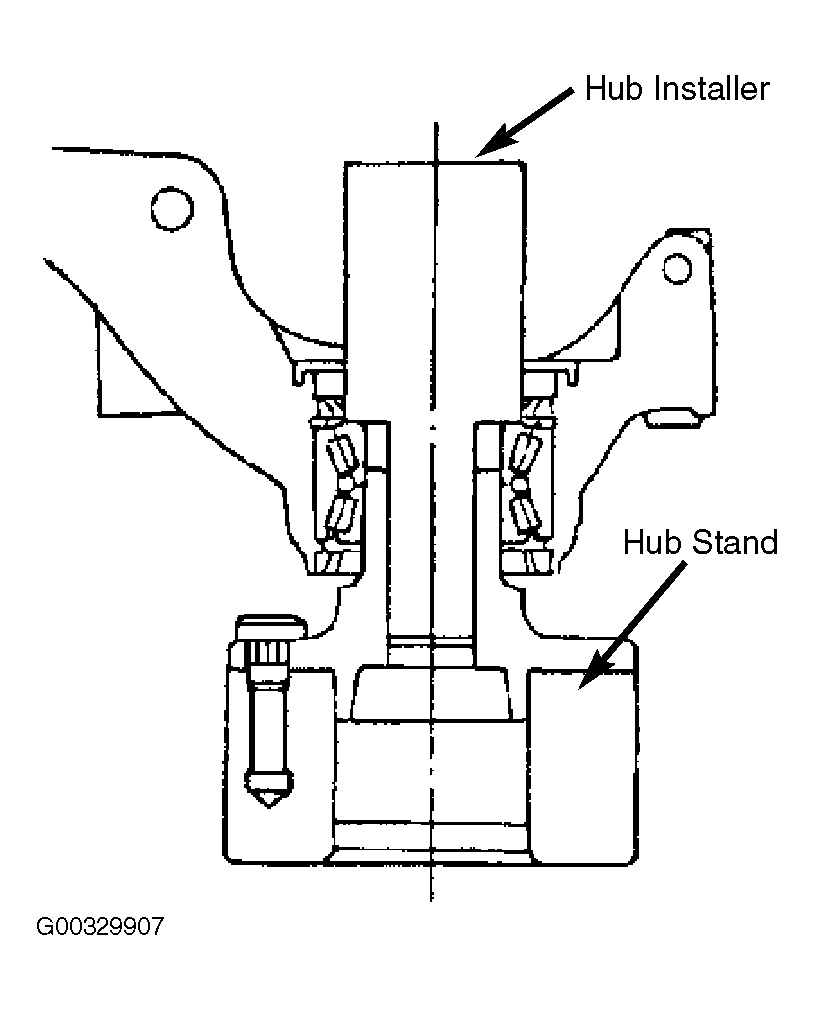

Fig 6: Pressing Bearing Into Hub By Driving Inner Race
G00329907Courtesy of SUBARU OF AMERICA, INC.
