AT Shift Lock System: Inspection: Notes

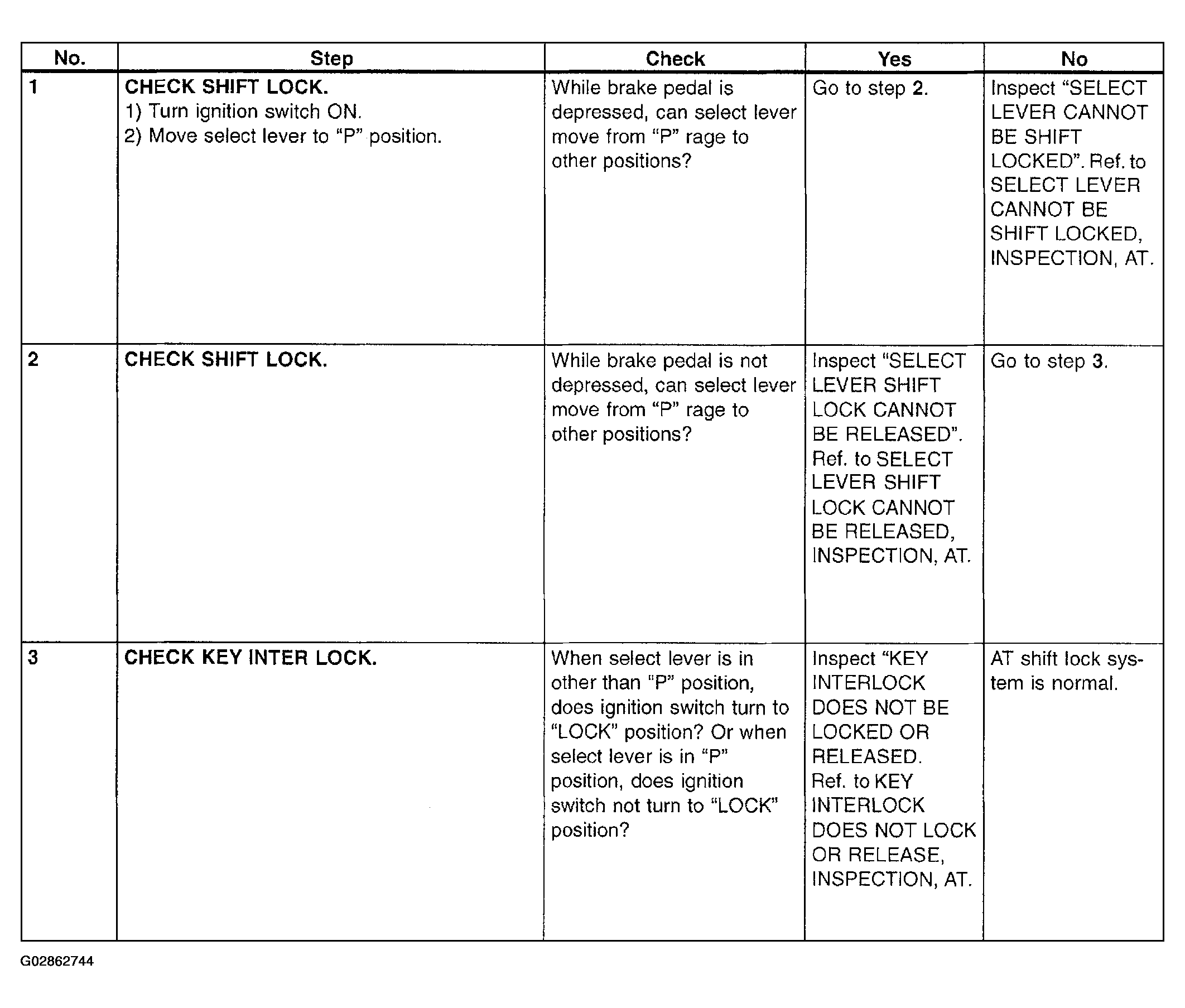

Fig 1: AT Shift Lock System Inspection Procedure Chart
G02862744Courtesy of SUBARU OF AMERICA, INC.
