System Diagram

COMPONENT





1. FRONT DISC BRAKE

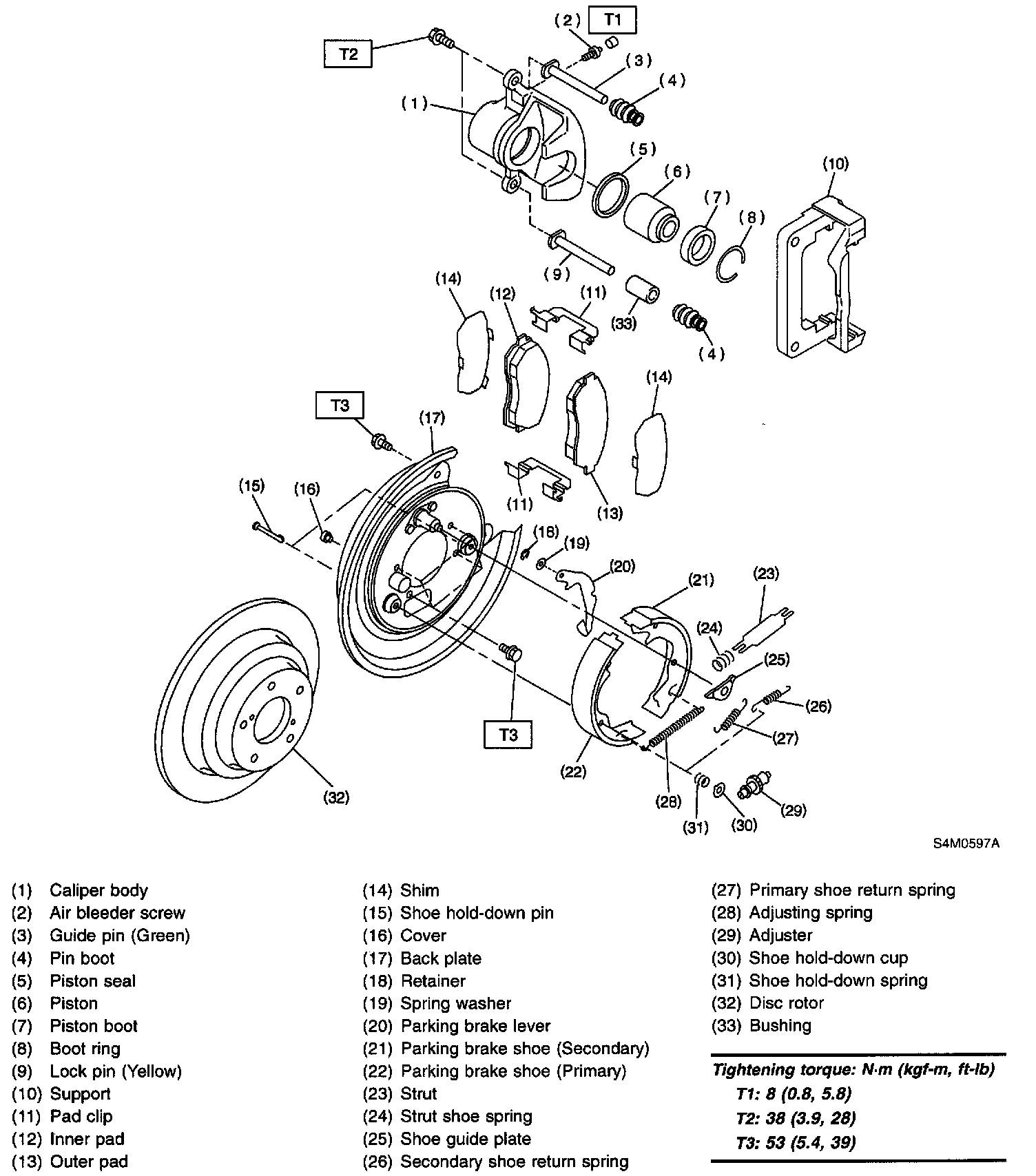

2. REAR DISC BRAKE

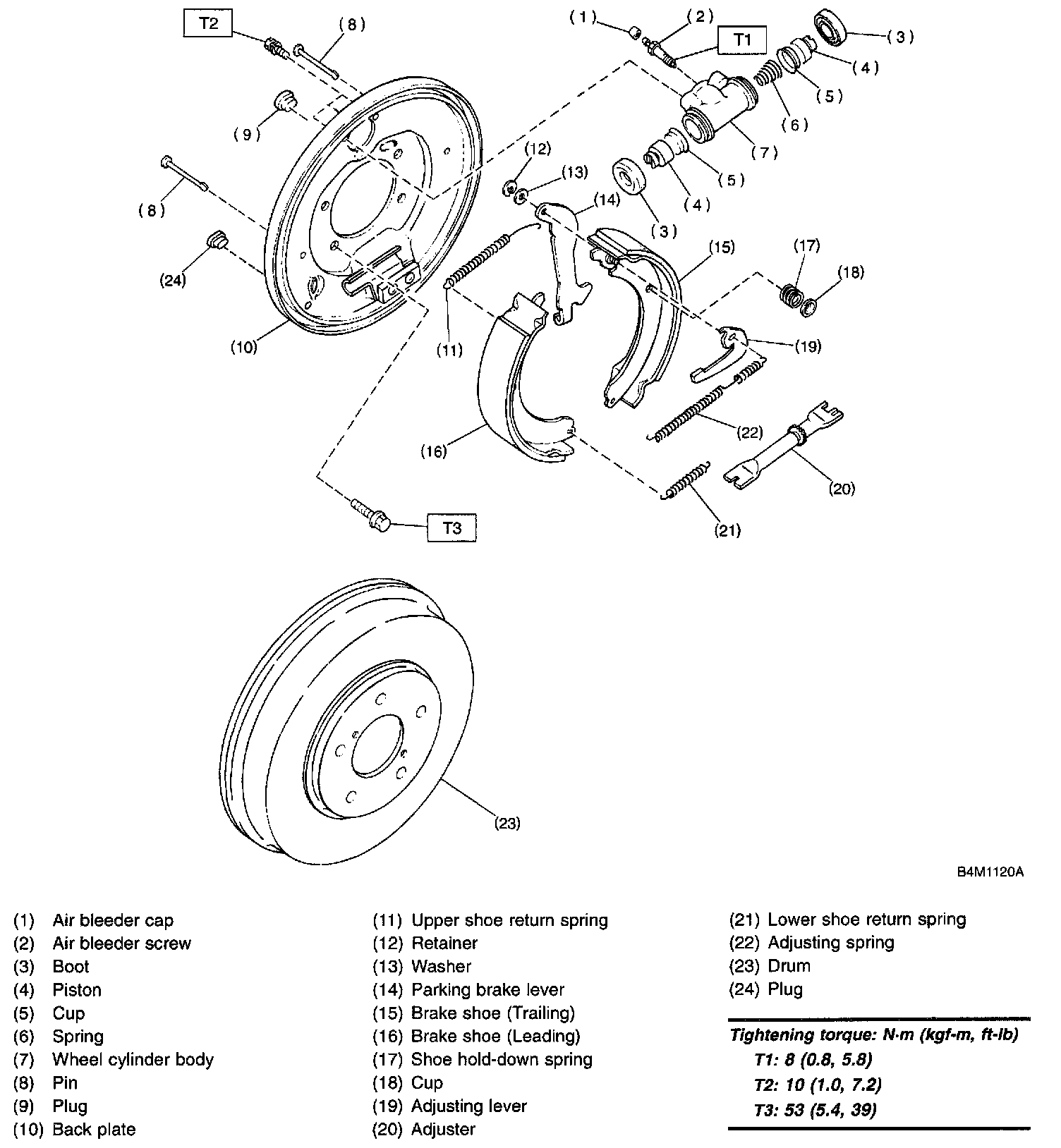

3. REAR DRUM BRAKE

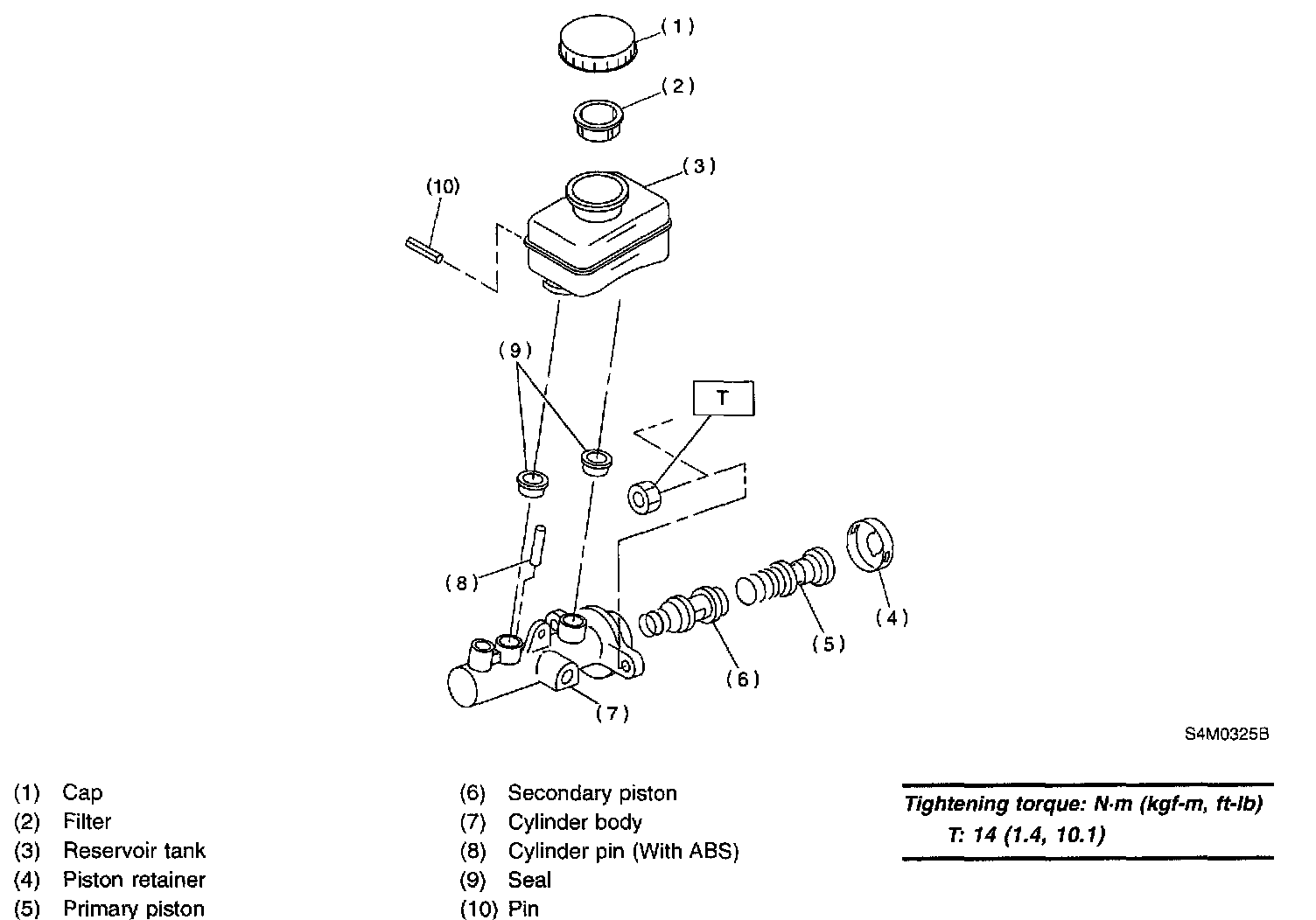

4. MASTER CYLINDER

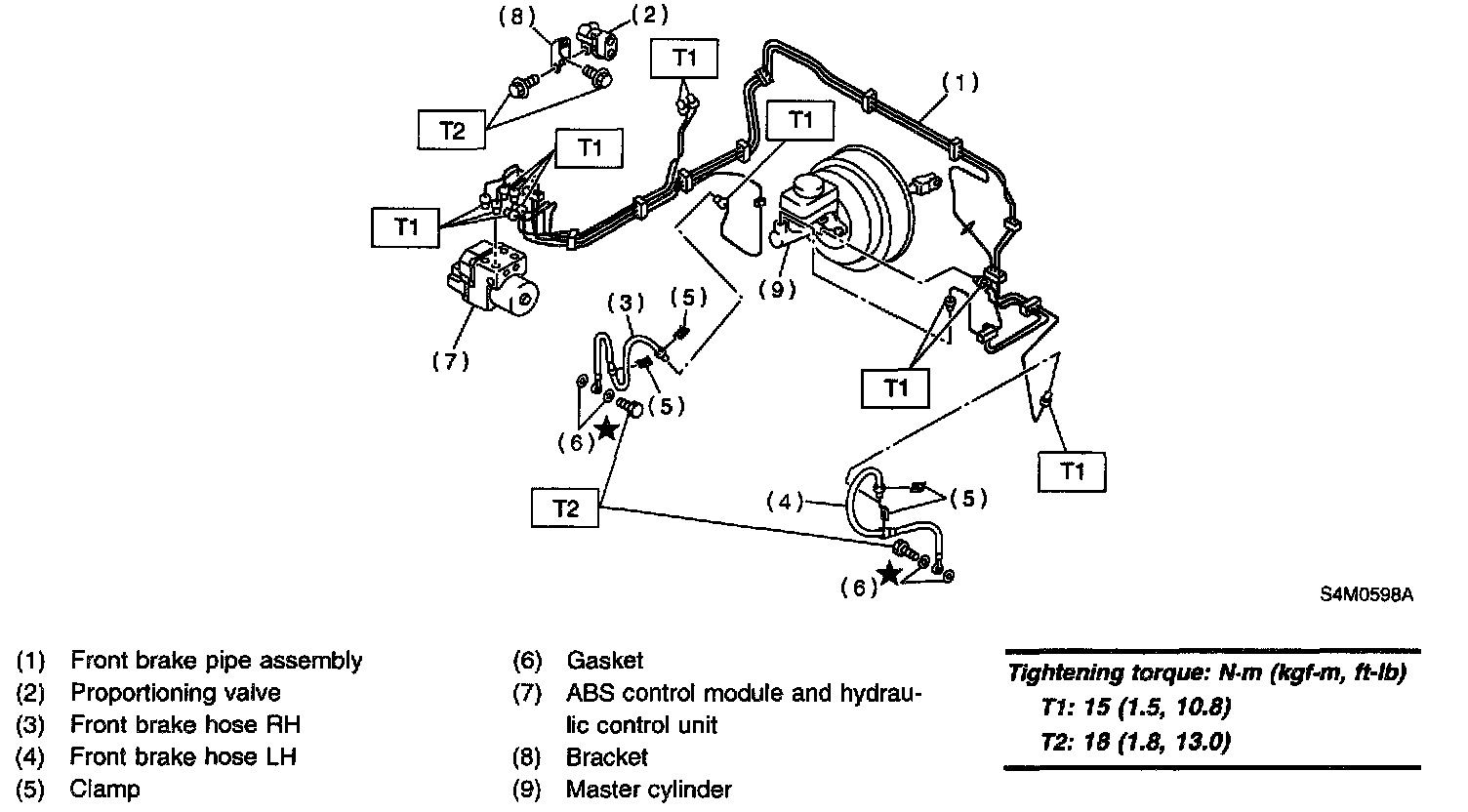

5. FRONT BRAKE PIPES AND HOSE

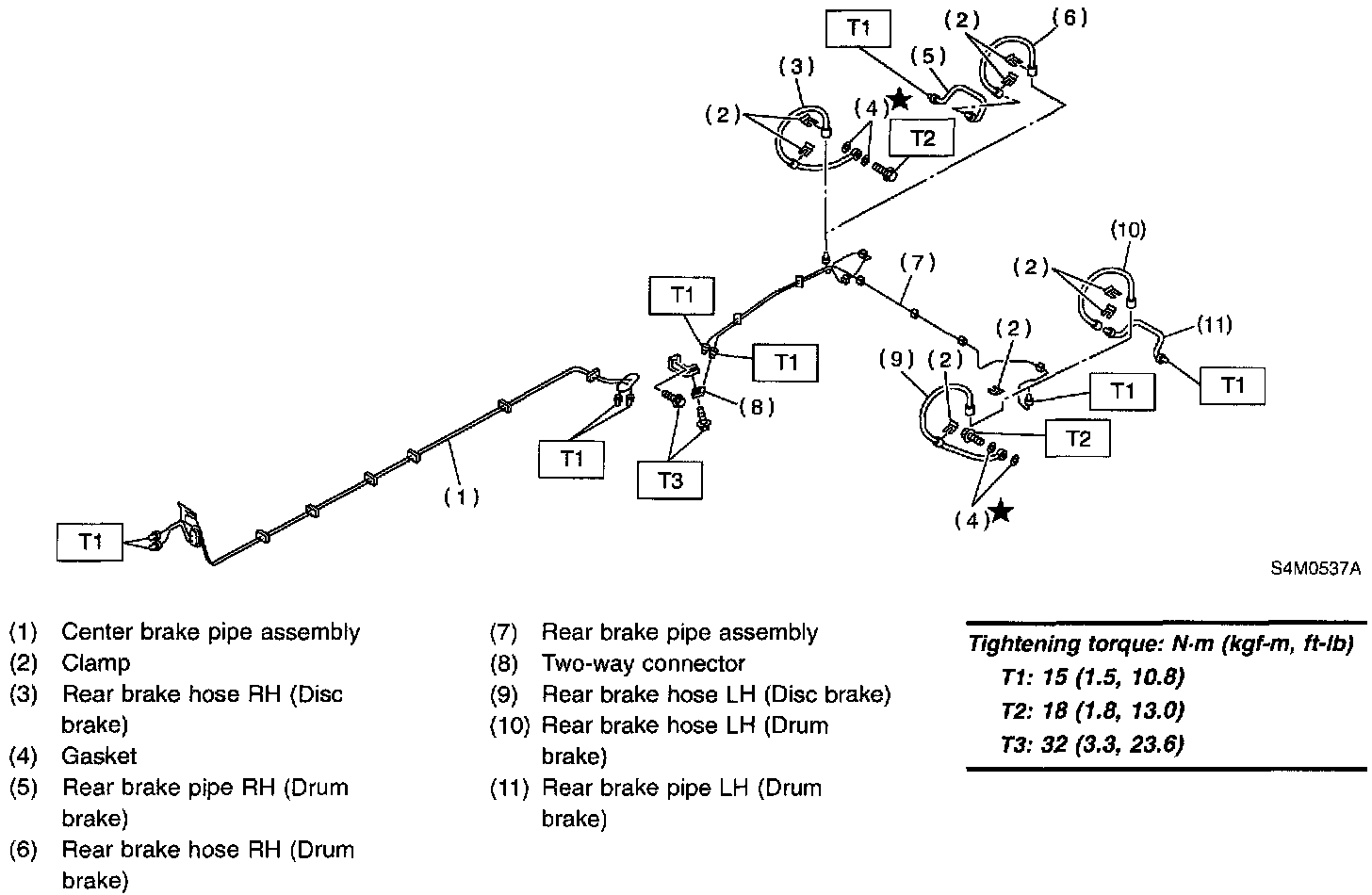

6. CENTER AND REAR BRAKE PIPES AND HOSE

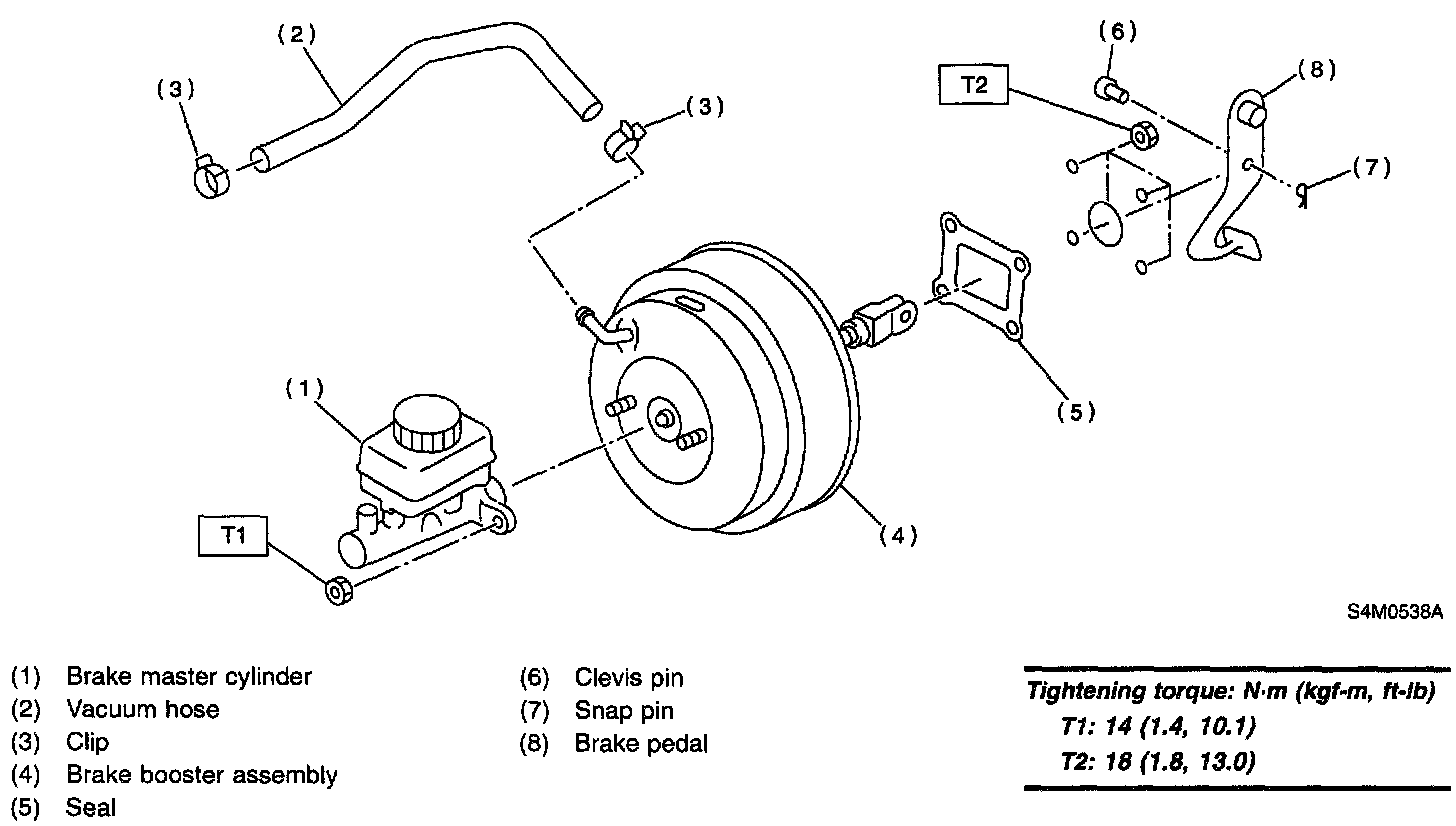

7. BRAKE BOOSTER

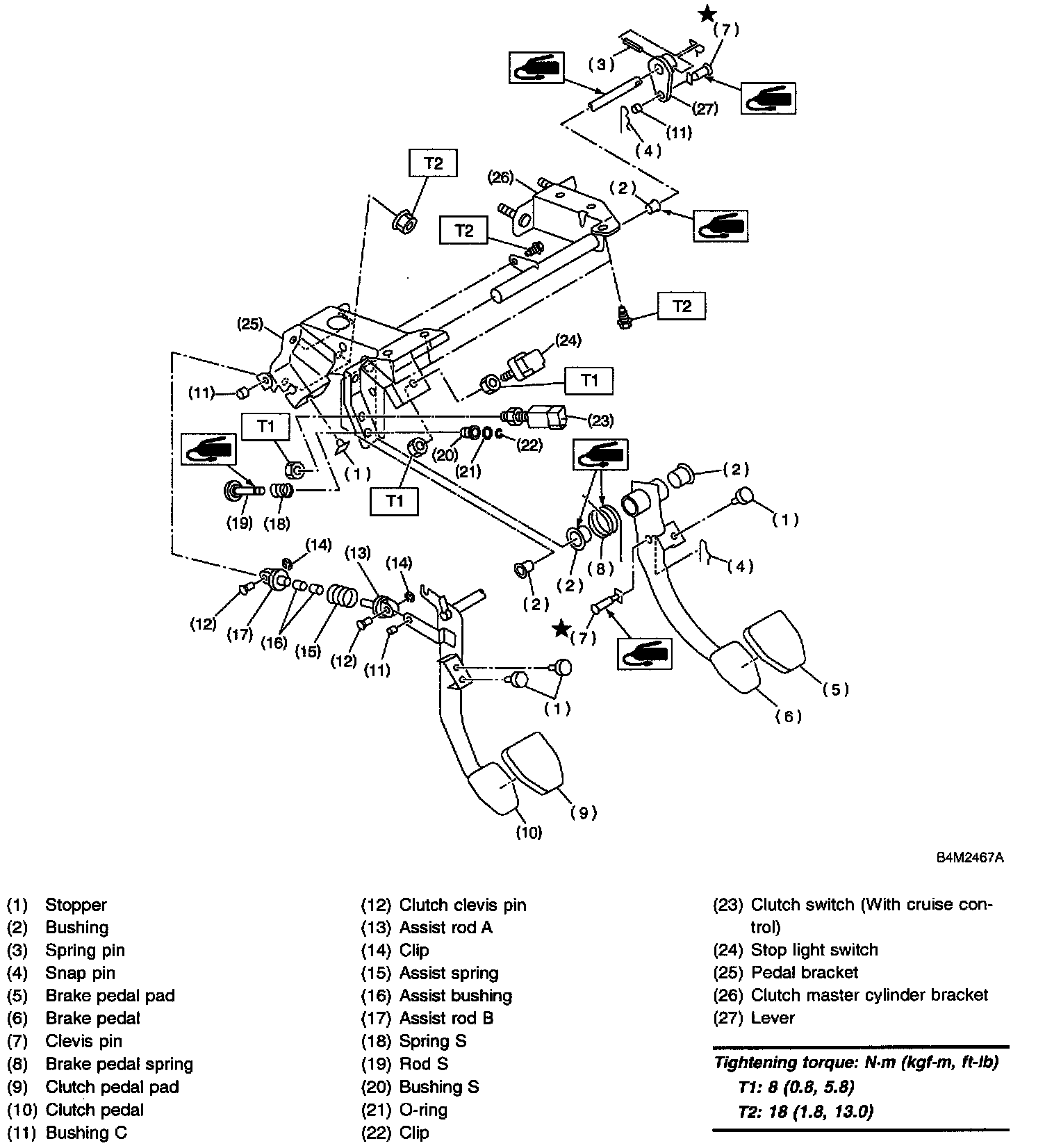

8. BRAKE PEDAL FOR MT MODEL

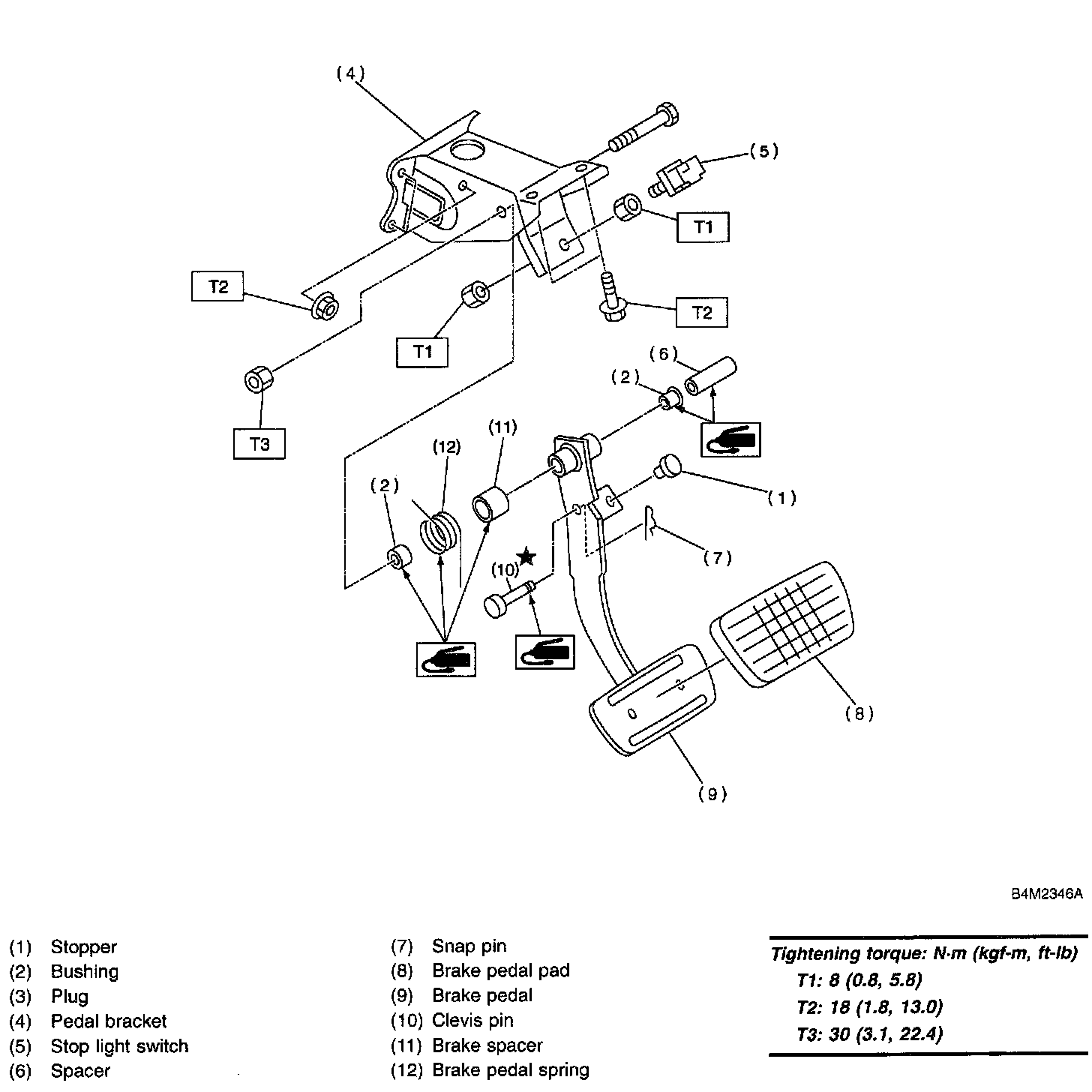

9. BRAKE PEDAL FOR AT MODEL
