System Specifications

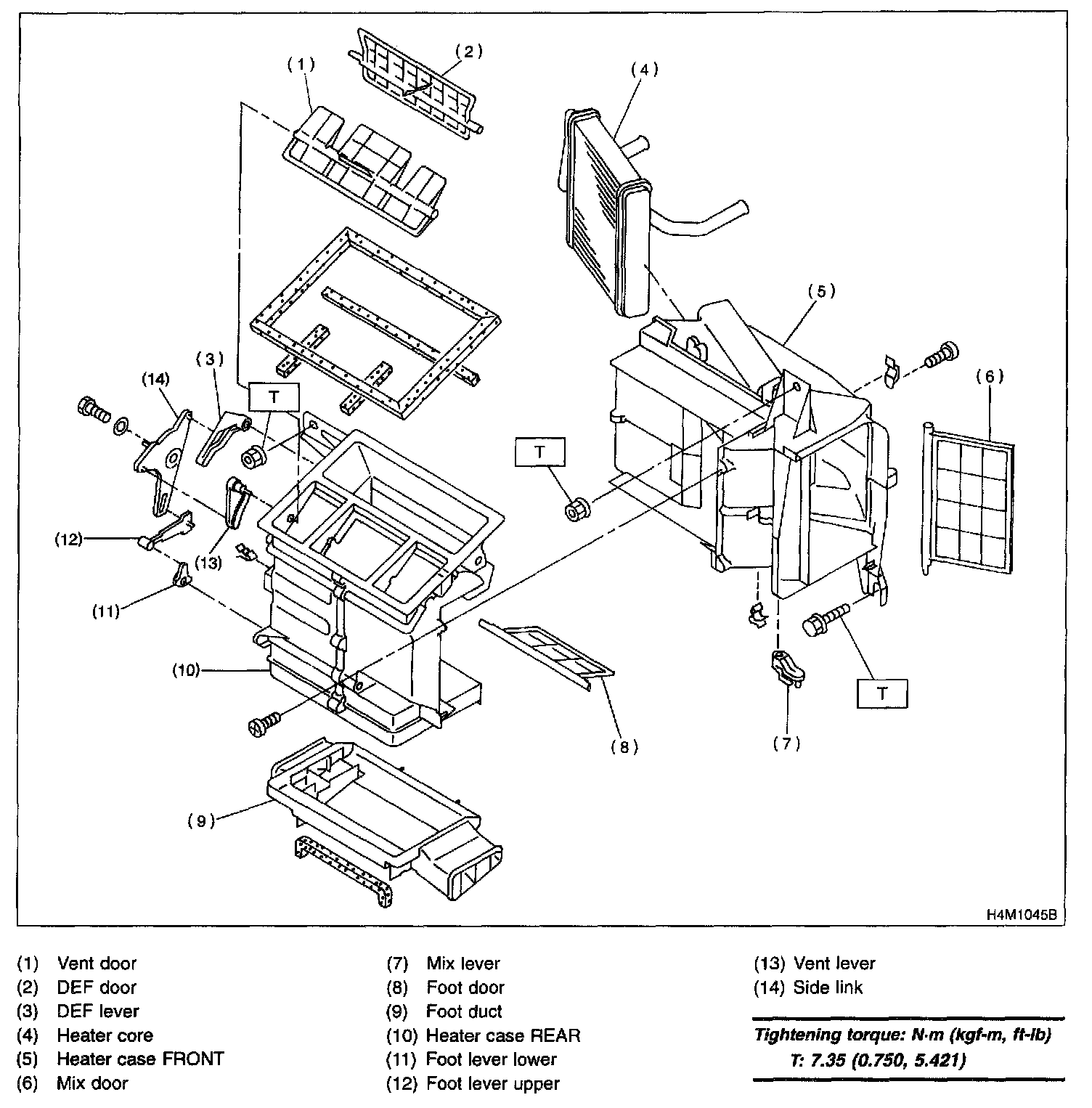

Heater Unit:

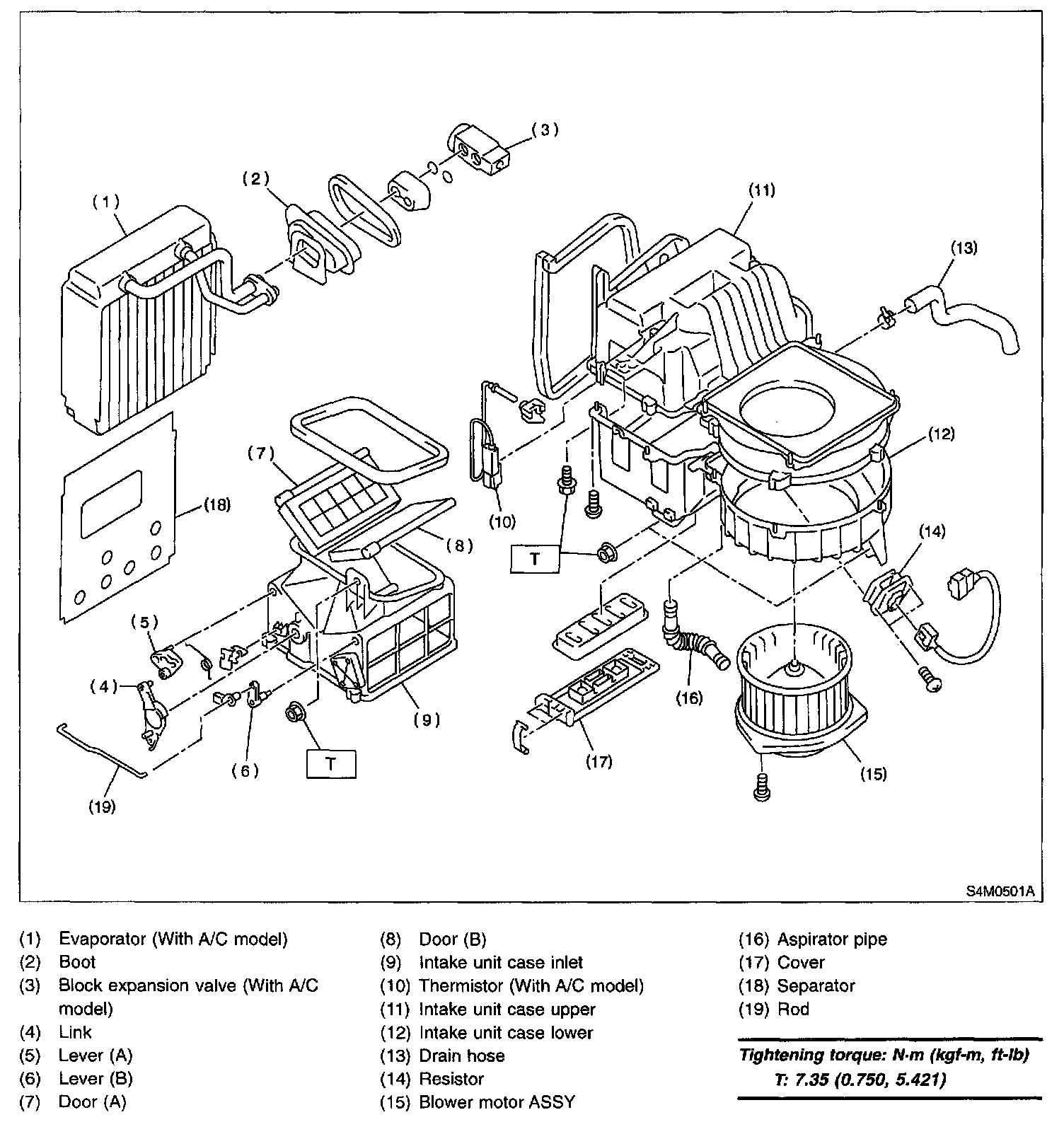

Intake Unit With Evaporator:

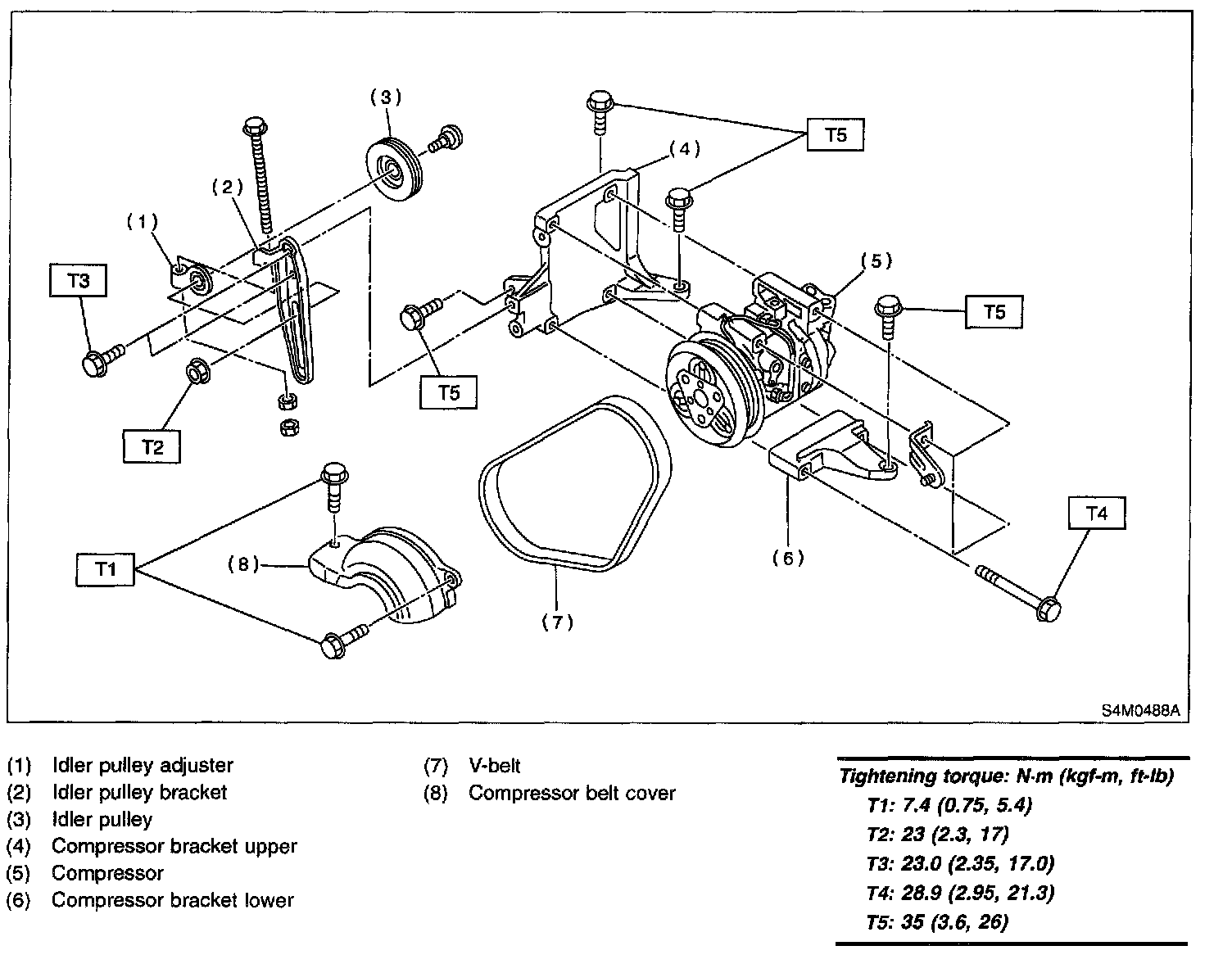

Compressor:



Heater System:



Air Conditioning Unit:

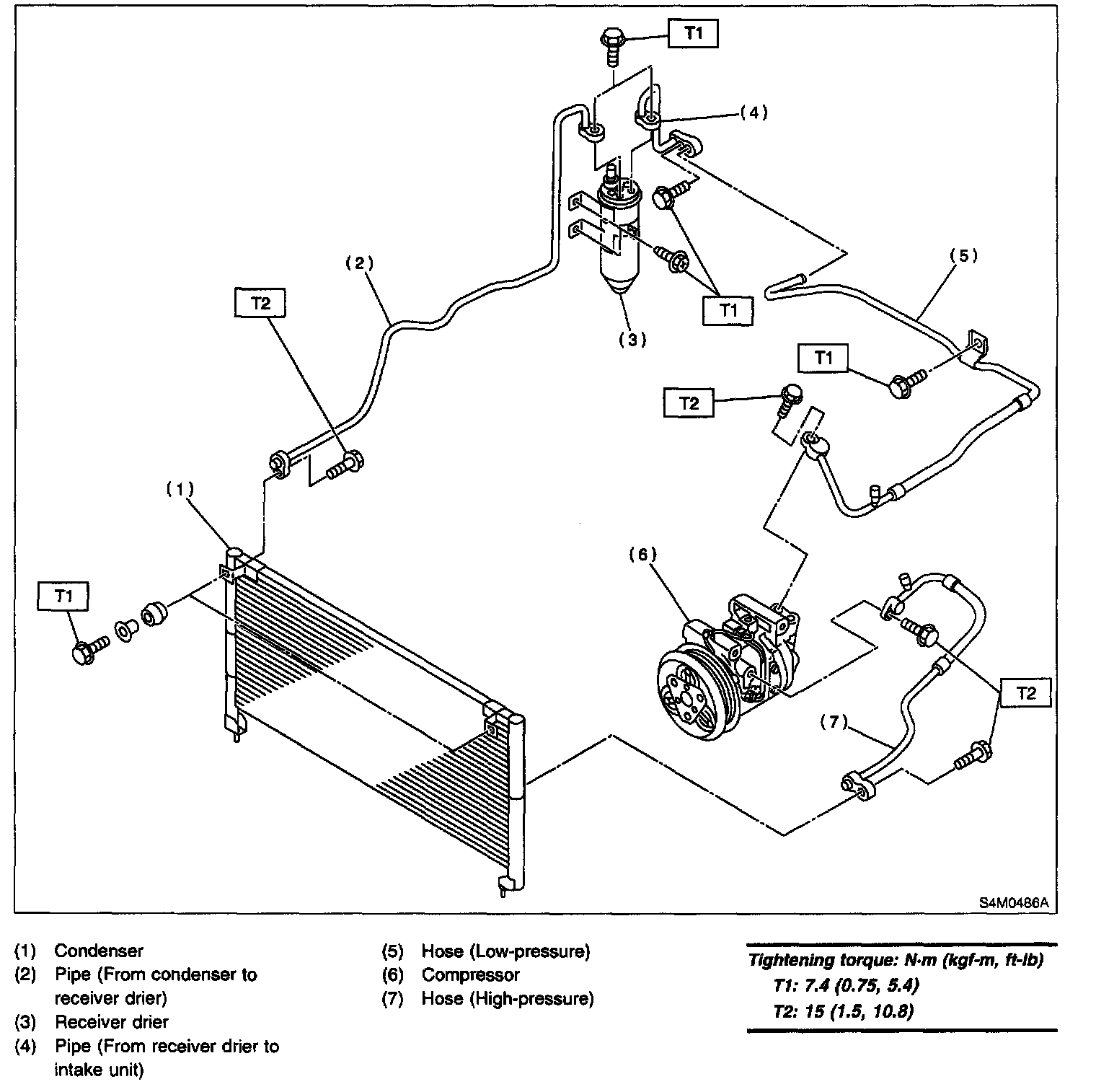

A/C System:
