Clutch System

CLUTCH SYSTEM

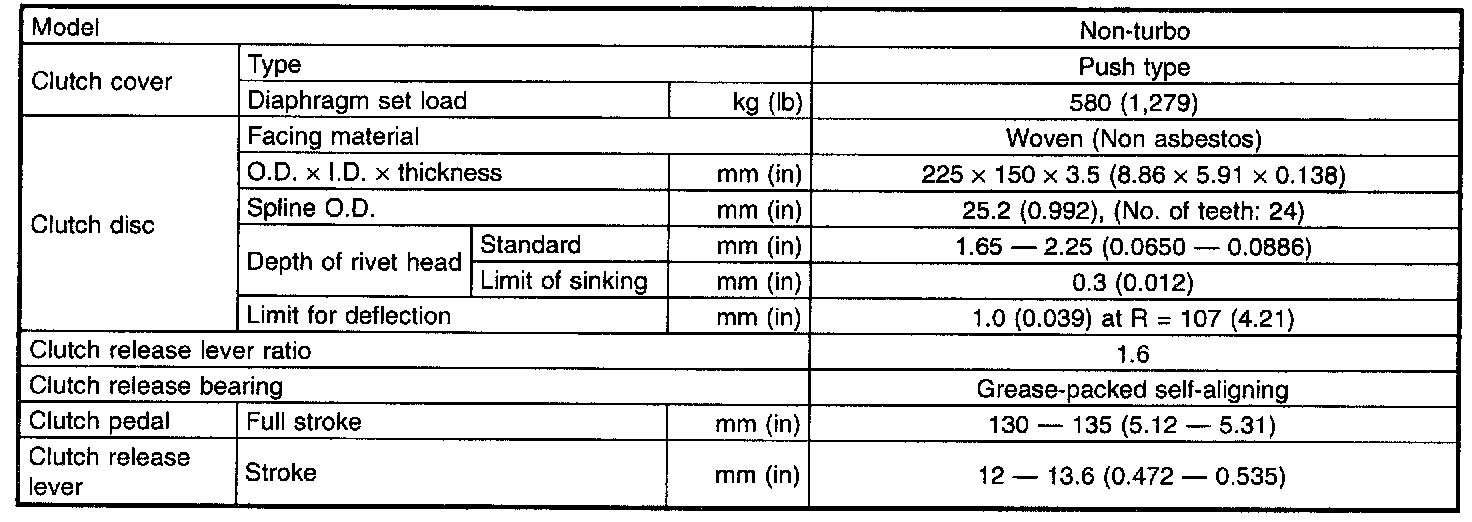

SPECIFICATIONS





CLUTCH ASSEMBLY





CLUTCH PIPE AND HOSE





MASTER CYLINDER





CLUTCH PEDAL
