Window Glass: Service and Repair

SUNROOF:

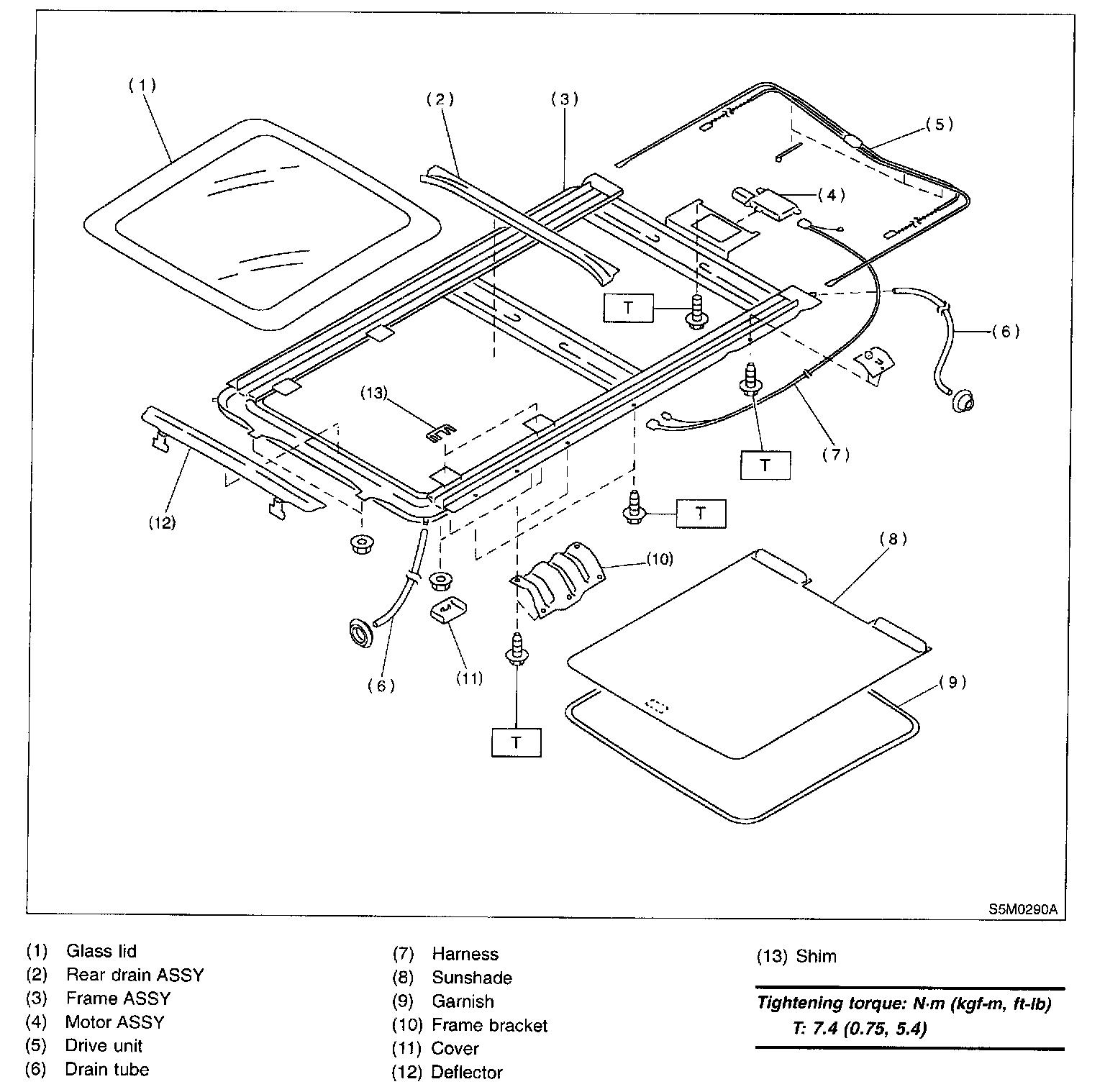

Sunroof Lid / REMOVAL
1. Completely close glass lid and open sunshade.






2. Detach the four covers (A) and then remove the eight nuts.
3. Carefully remove glass lid.


INSTALLATION
Install in the reverse order of removal.
