Rear Abs Sensor: Removal

  1. Disconnect the ground terminal from battery.
  2. Jack-up the vehicle, support it with rigid racks, and remove the wheel.
  3. Remove the rear seat and disconnect the rear ABS sensor connector.
  4. Remove the rear sensor harness bracket from rear trailing link and bracket.
  5. Remove the rear ABS sensor from back plate.

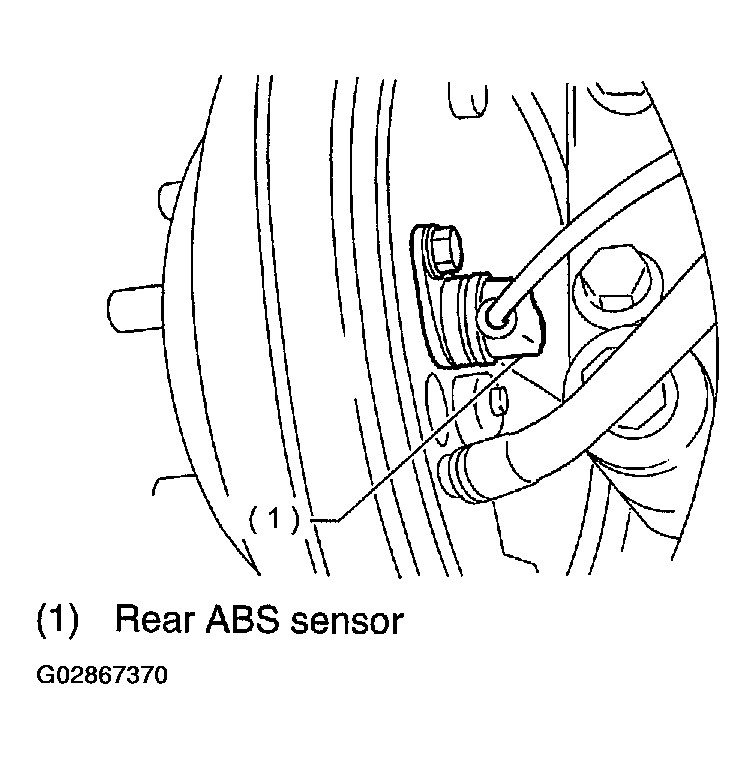

    Fig 1: Removing Rear ABS Sensor From Back Plate
    G02867370Courtesy of SUBARU OF AMERICA, INC.
