ATF Temperature Sensor

This sensor is located in the hydraulic control valve of the transmission. It detects the temperature of ATF and outputs it as an electrical resistance signal. The output characteristics of the sensor are shown below.

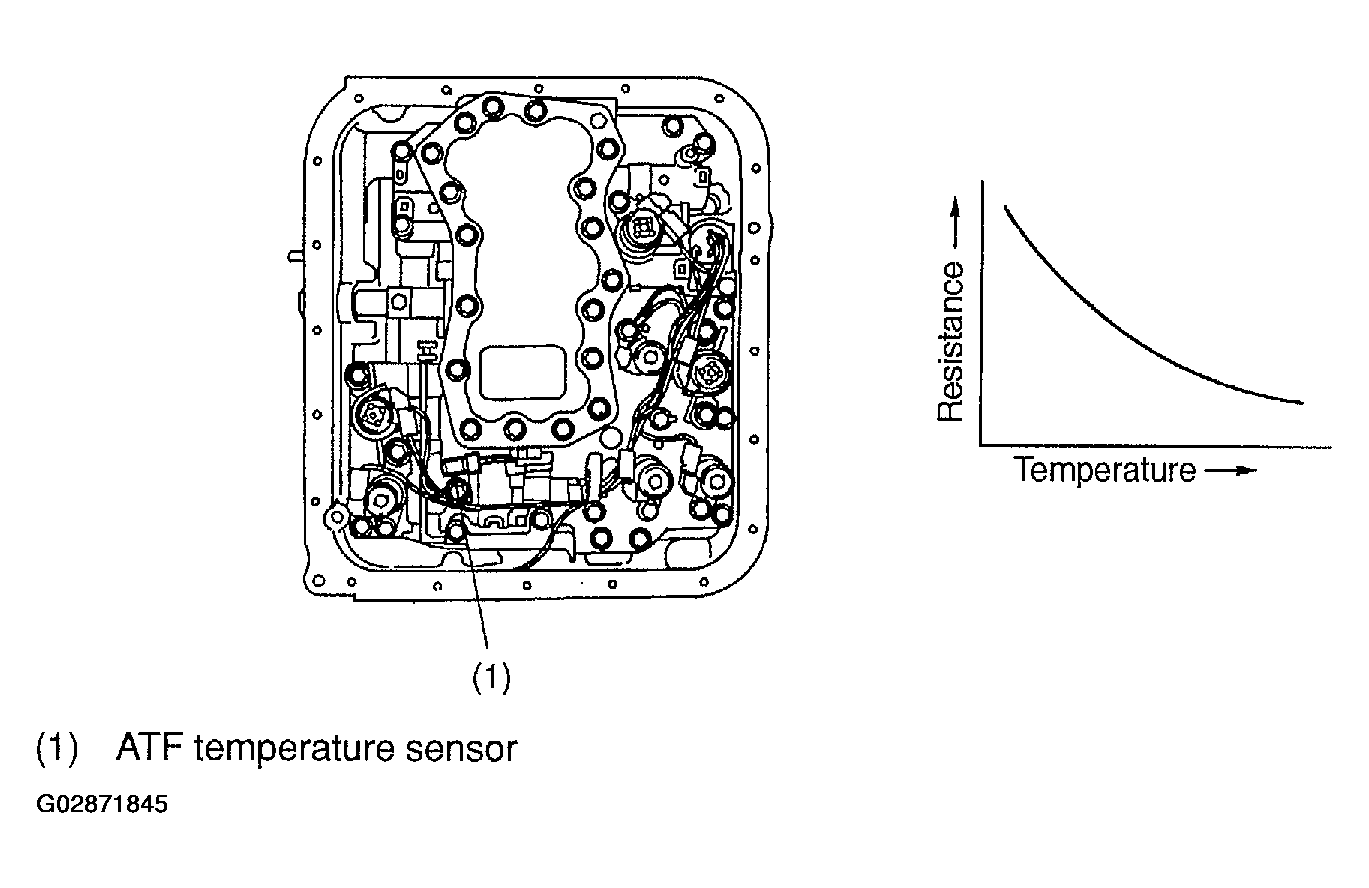

Fig 1: Identifying ATF Temperature Sensor
G02871845Courtesy of SUBARU OF AMERICA, INC.
