AWD Transfer Clutch Control (Non-Turbo Model)

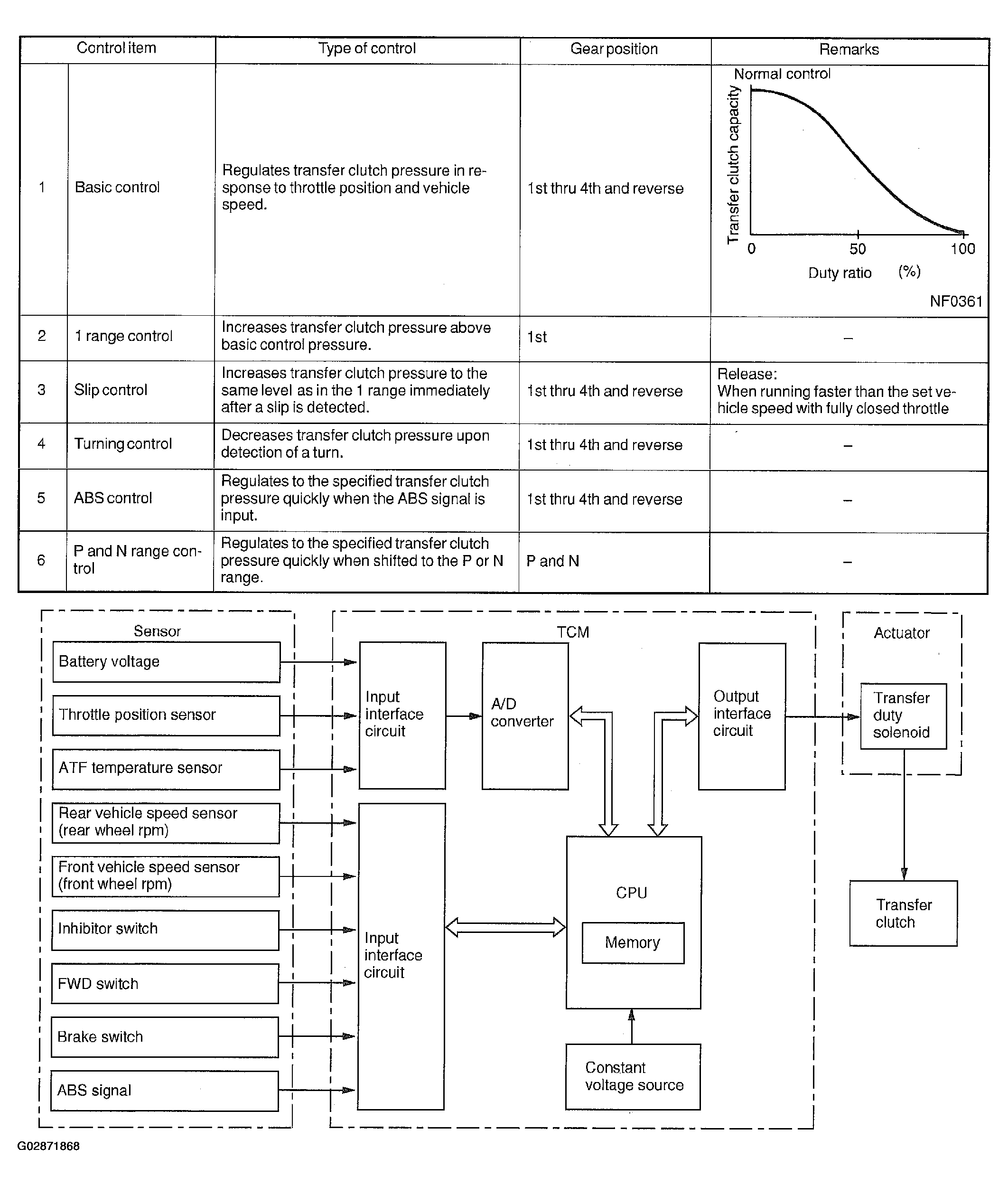

Fig 1: AWD Transfer Clutch Control (Non-Turbo Model) Chart
Courtesy of SUBARU OF AMERICA, INC.
