Main Switch

  1. Disconnect the ground terminal from battery.
  2. Loosen the screw to remove power window main switch.
  3. Disconnect the connector.

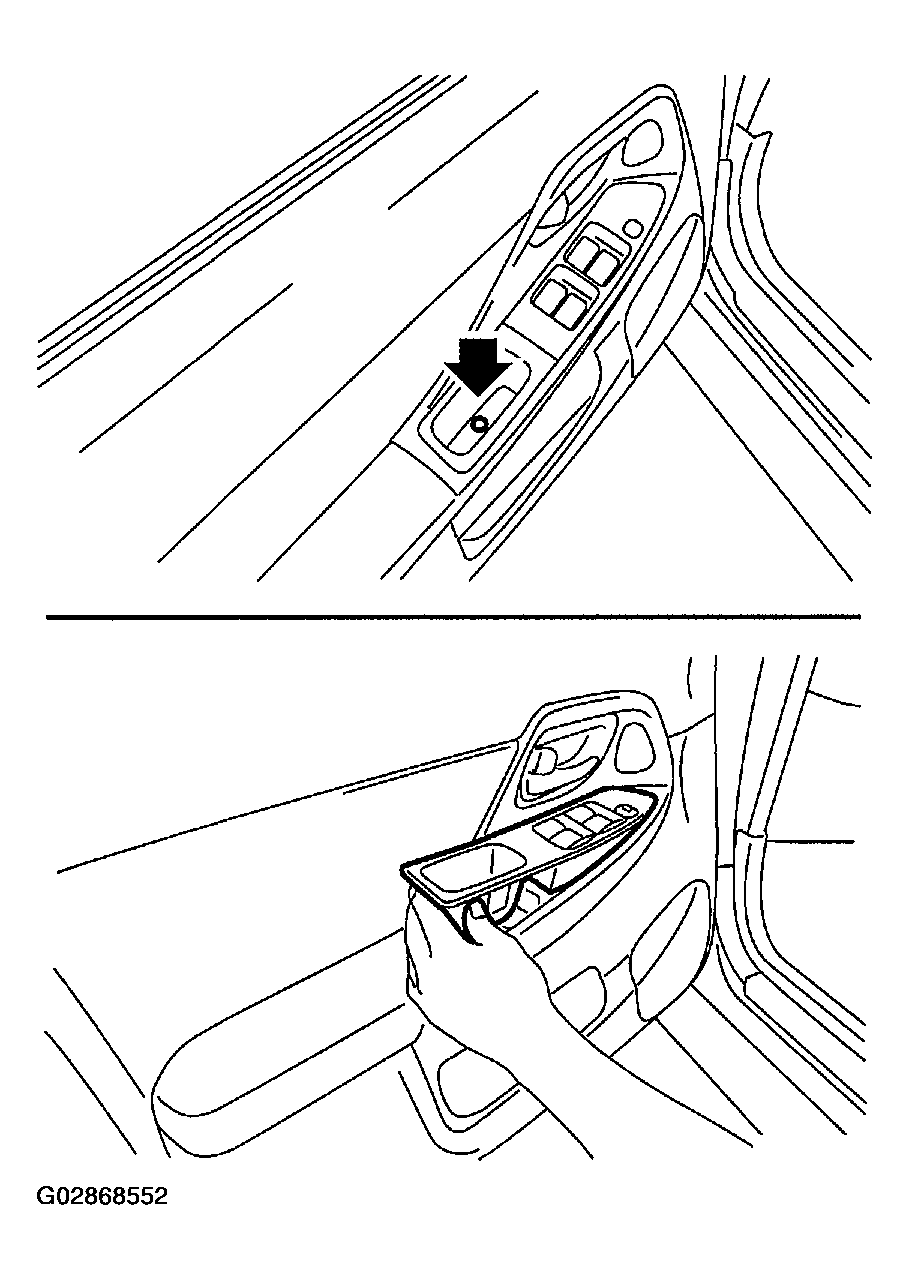

    Fig 1: Removing Power Window Main Switch
    G02868552Courtesy of SUBARU OF AMERICA, INC.
