Check Security Indicator Light Circuit

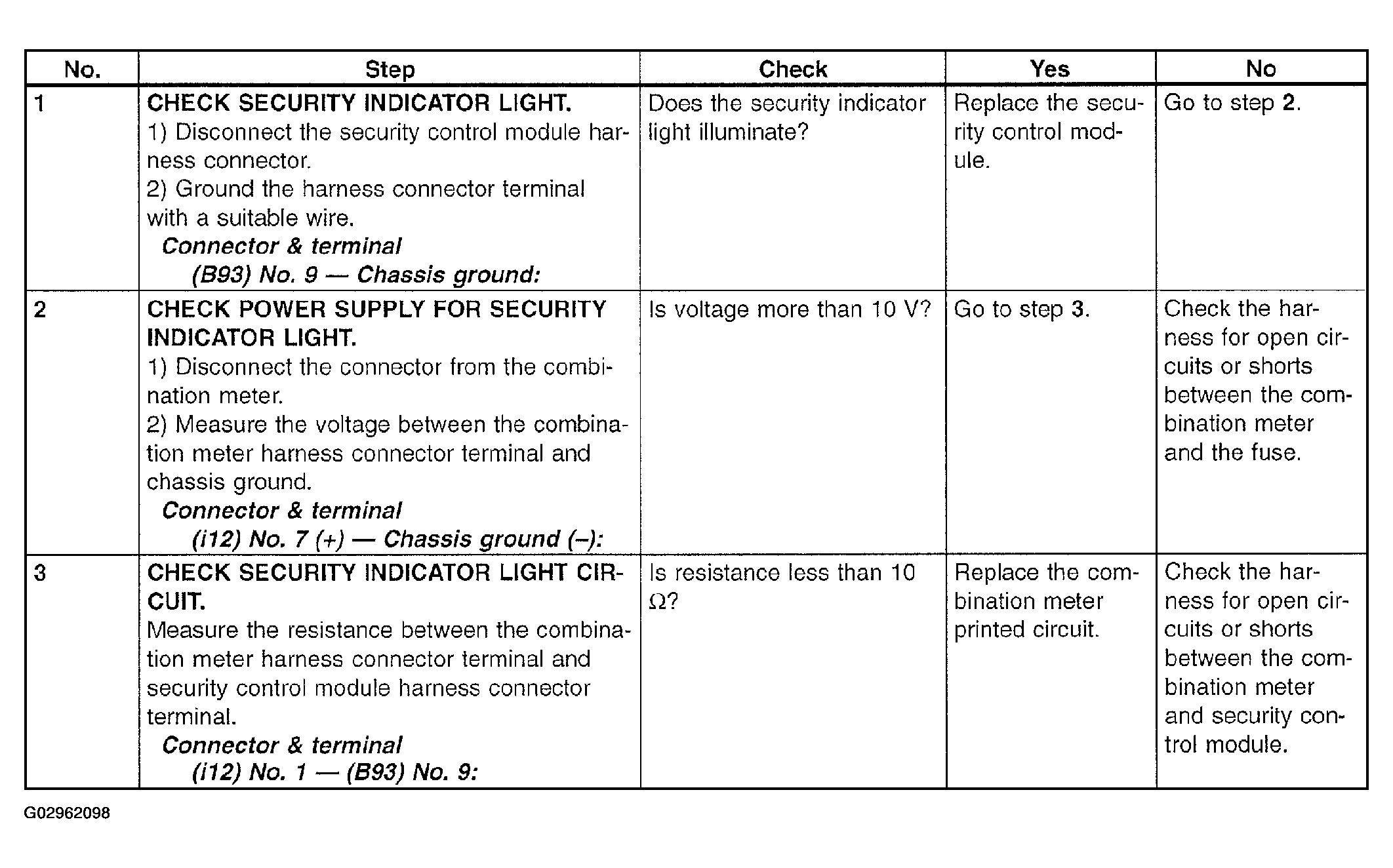

Fig 1: Checking Security Indicator Light Chart
G02962098Courtesy of SUBARU OF AMERICA, INC.
