Dropping Resistor: Inspection

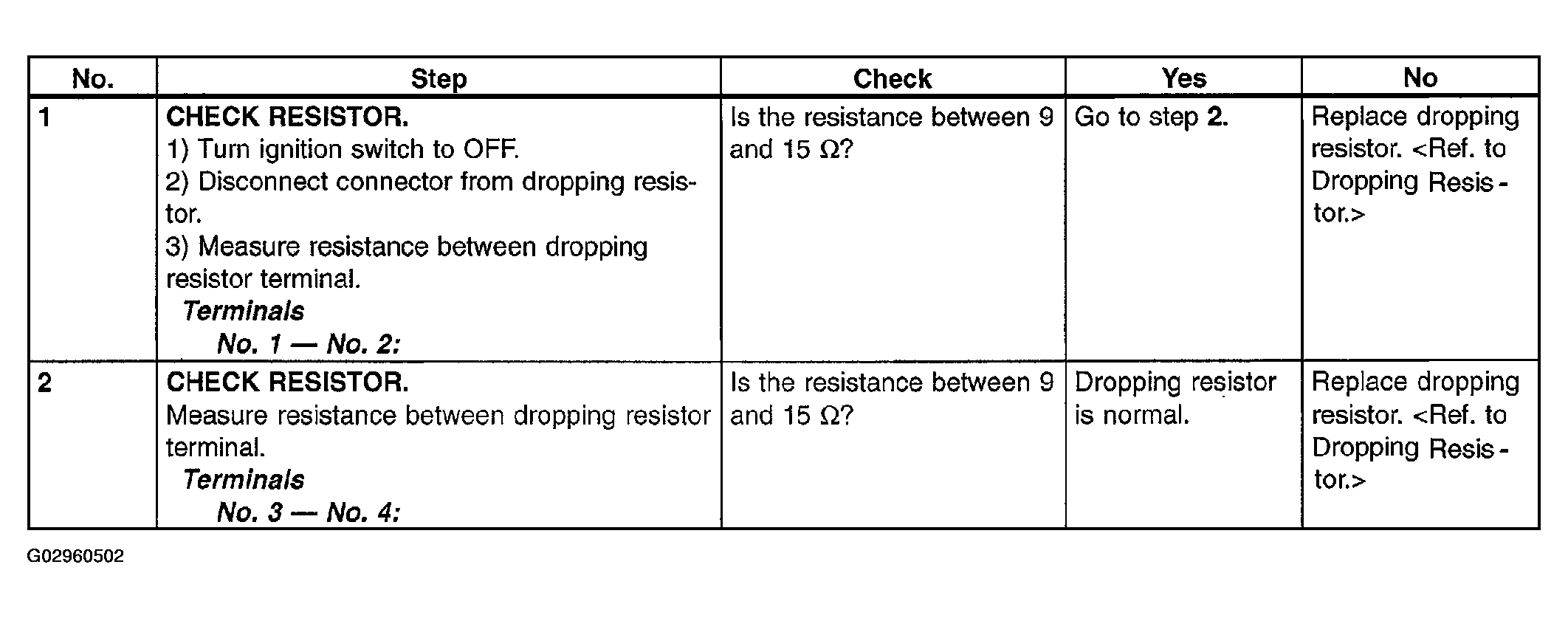

Fig 1: Dropping Resistor Inspection Chart

G02960502

Courtesy of SUBARU OF AMERICA, INC.
