System Diagram

COMPONENT





1. TIMING CHAIN

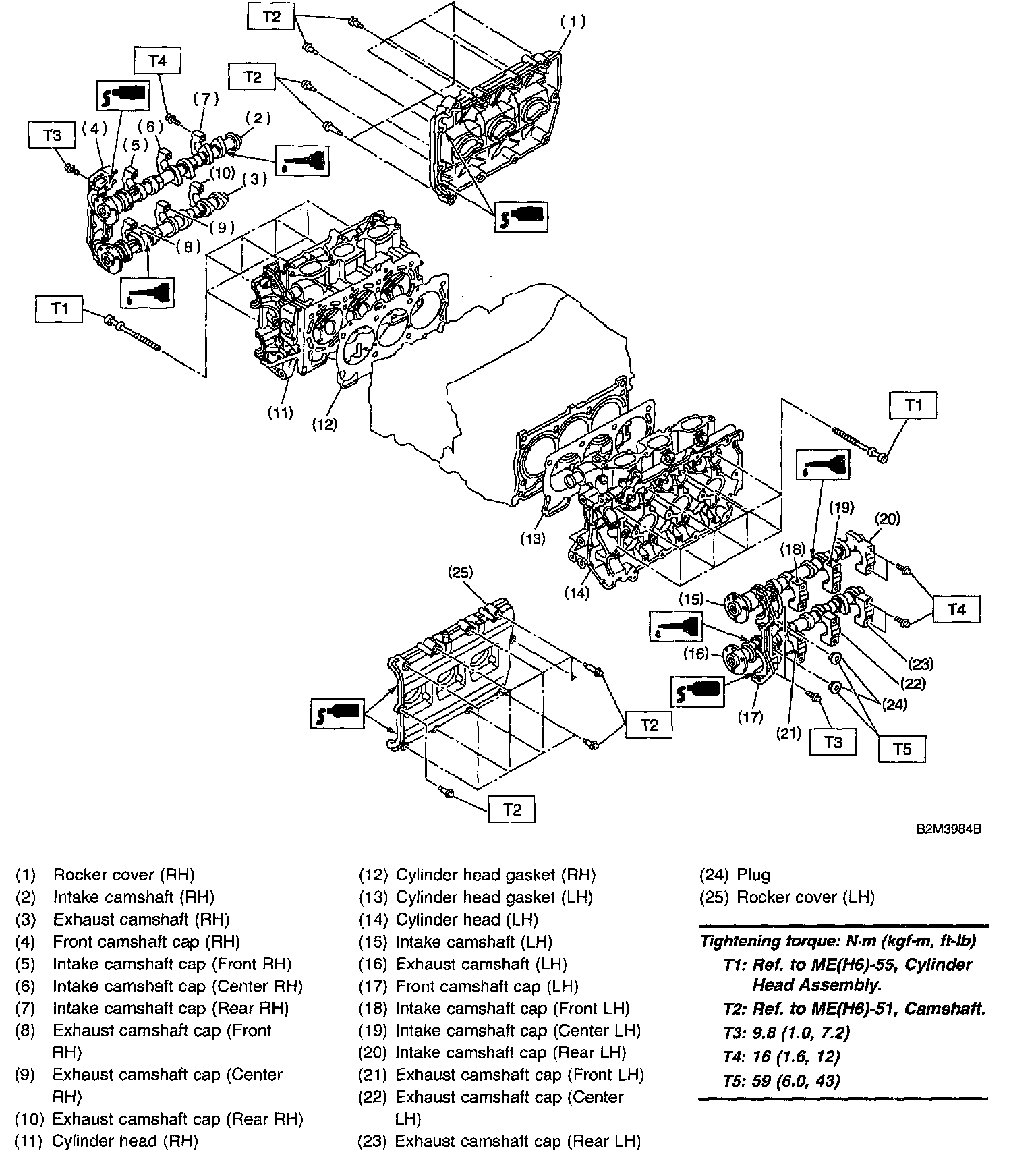

2. CYLINDER HEAD AND CAMSHAFT

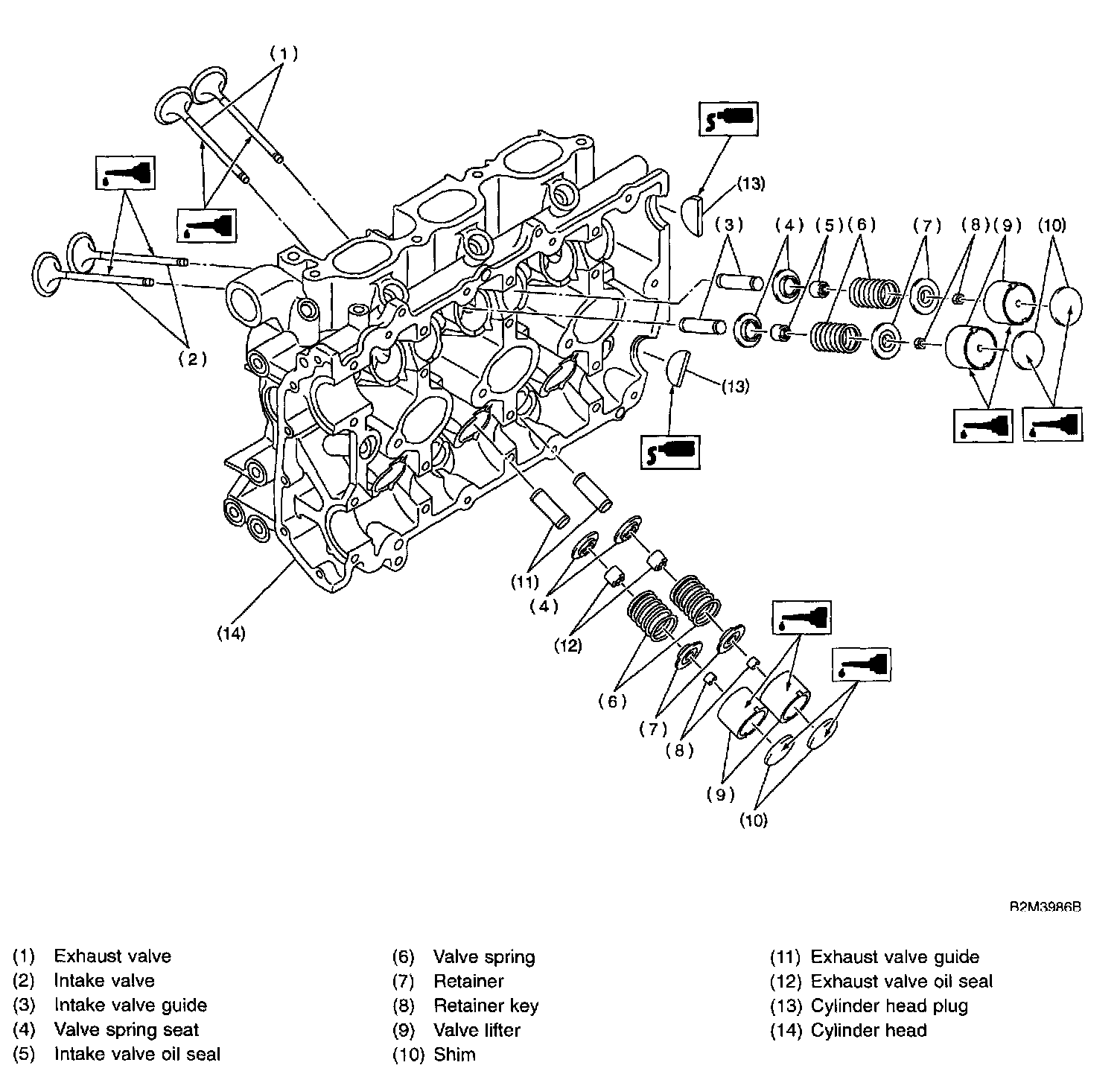

3. CYLINDER HEAD AND VALVE ASSEMBLY

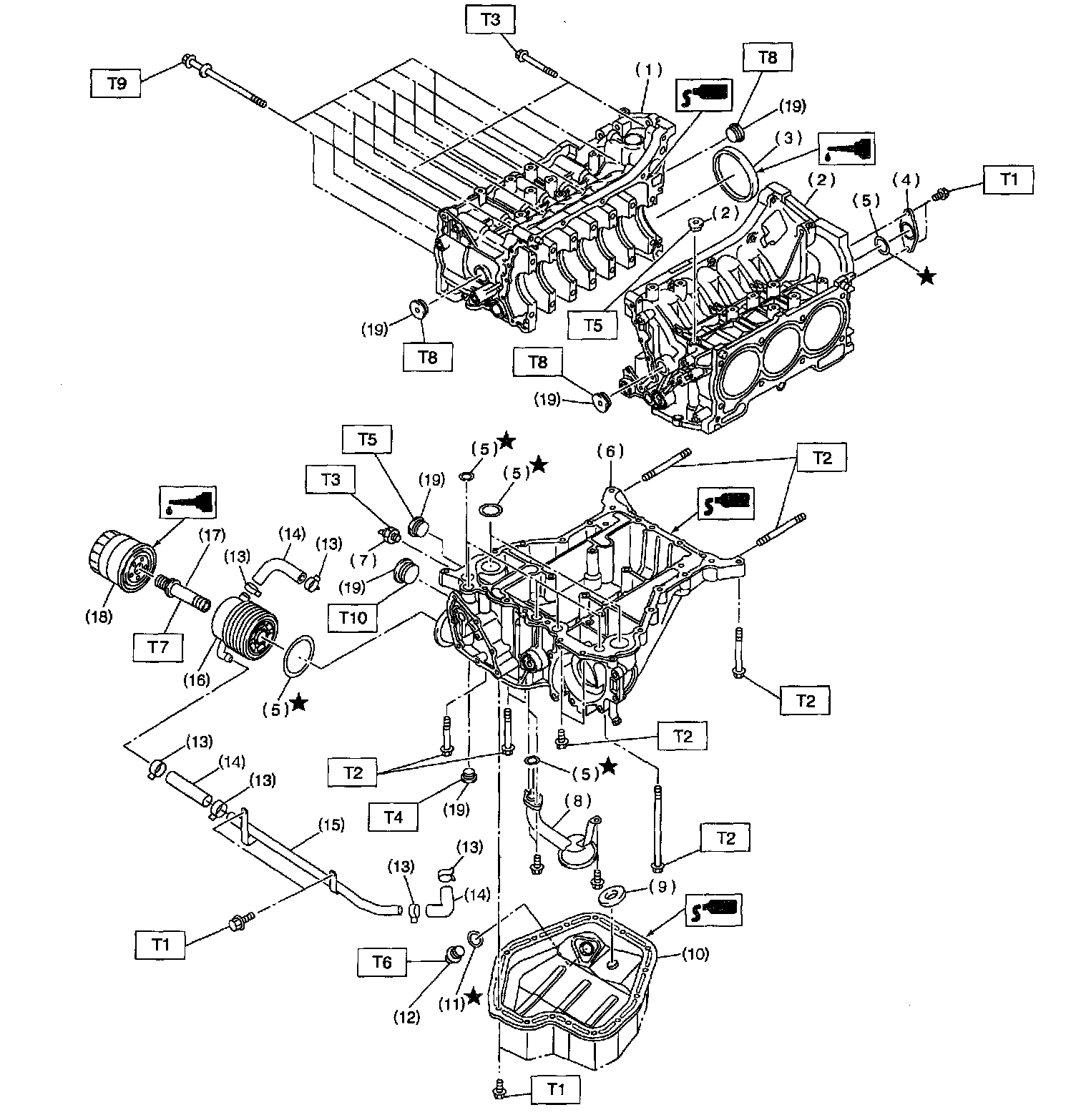

4. CYLINDER BLOCK





Exploded view





Legend





5. CRANKSHAFT AND PISTON

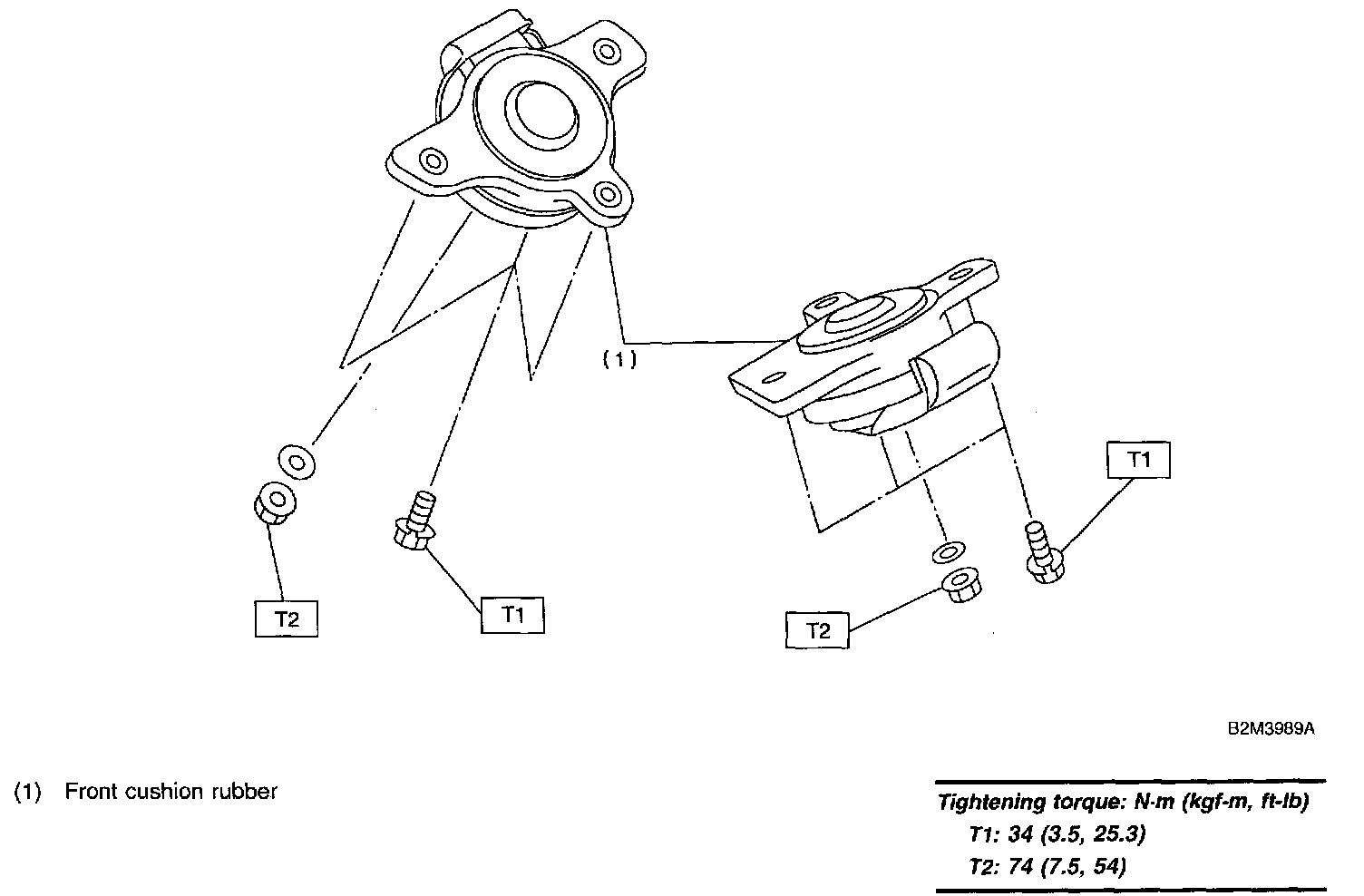

6. ENGINE MOUNTING
