Drive Belt: Testing and Inspection

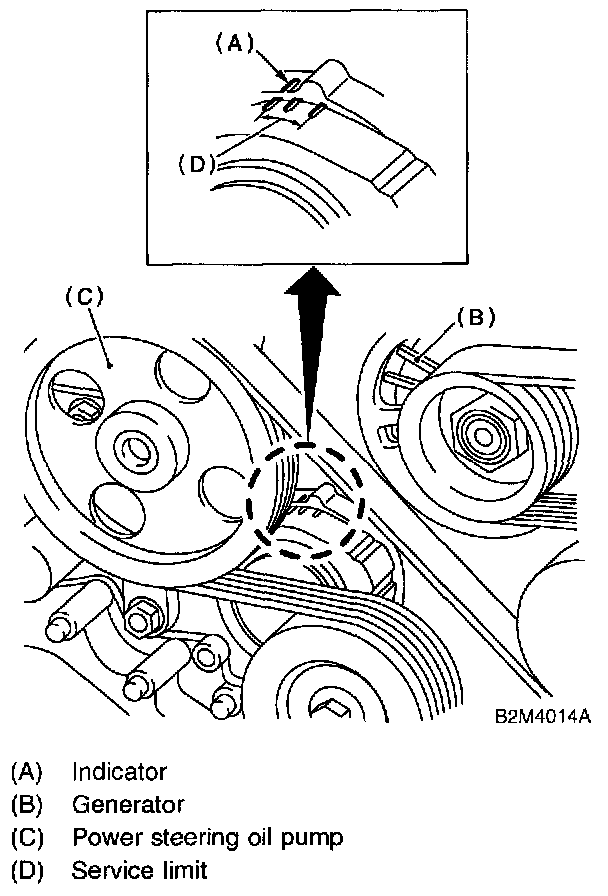

INSPECTION1) Replace belts, if cracks, fraying or wear is found.
2) Check that the V-belt automatic tensioner indicator is within the range (D).
1) Replace belts, if cracks, fraying or wear is found.
2) Check that the V-belt automatic tensioner indicator is within the range (D).
