Front Oxygen (A/F) Sensor

REMOVAL




1. Disconnect battery ground cable.

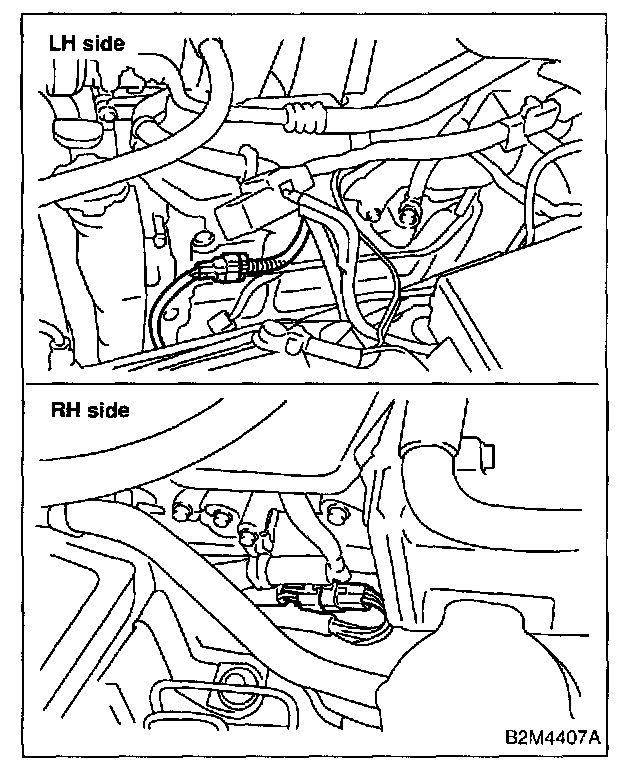

2. Disconnect connector from front oxygen (A/F) sensor.
3. Lift-up the vehicle.
4. Remove under cover.
5. Separate harness from clip (A).




- RH side




- LH side

6. Apply SUBARU CRC or its equivalent to threaded portion of front oxygen (A/F) sensor, and leave it for one minute or more.

SUBARU CRC (Part No.004301003)

7. Remove front oxygen (A/F) sensor.









CAUTION: When removing front oxygen (A/F) sensor, do not force front oxygen (A/F) sensor especially when exhaust pipe is cold, otherwise it will damage exhaust pipe.

INSTALLATION
1. Before installing front oxygen (A/F) sensor, apply anti-seize compound only to threaded portion of front oxygen (A/F) sensor to make the next removal easier.

Anti-seize compound: SS-30 by JET LUBE

CAUTION: Never apply anti-seize compound to protector of front oxygen (A/F) sensor.

2. Install front oxygen (A/F) sensor.







Tightening Torque: 21 Nm (2.1 kgf-m, 15.2 ft-lb)

3. Secure harness on clip (A).




- RH side




- LH side

4. Install under cover.
5. Lower the vehicle.

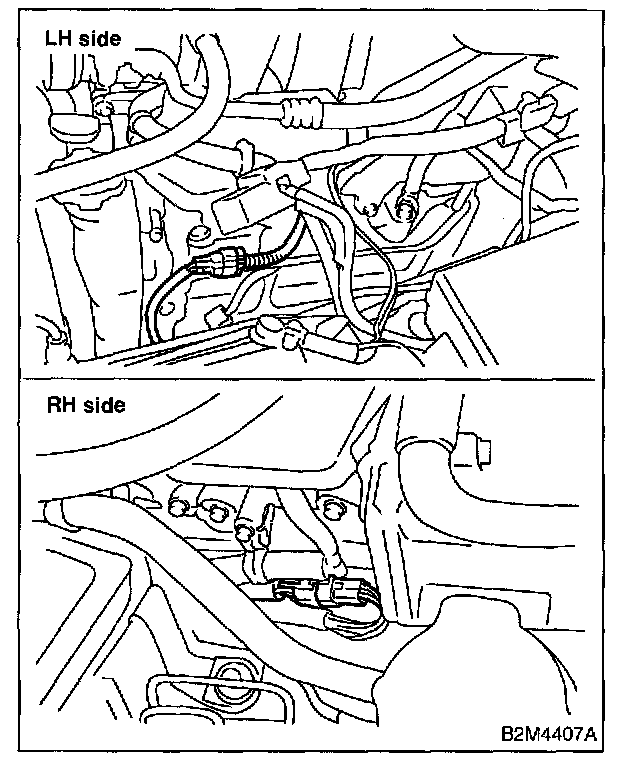

6. Connect connector of front oxygen (A/F) sensor.




7. Connect battery ground cable.
