Ignition Control System
IGNITION CONTROL SYSTEMCAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY MODE and INSPECTION MODE.

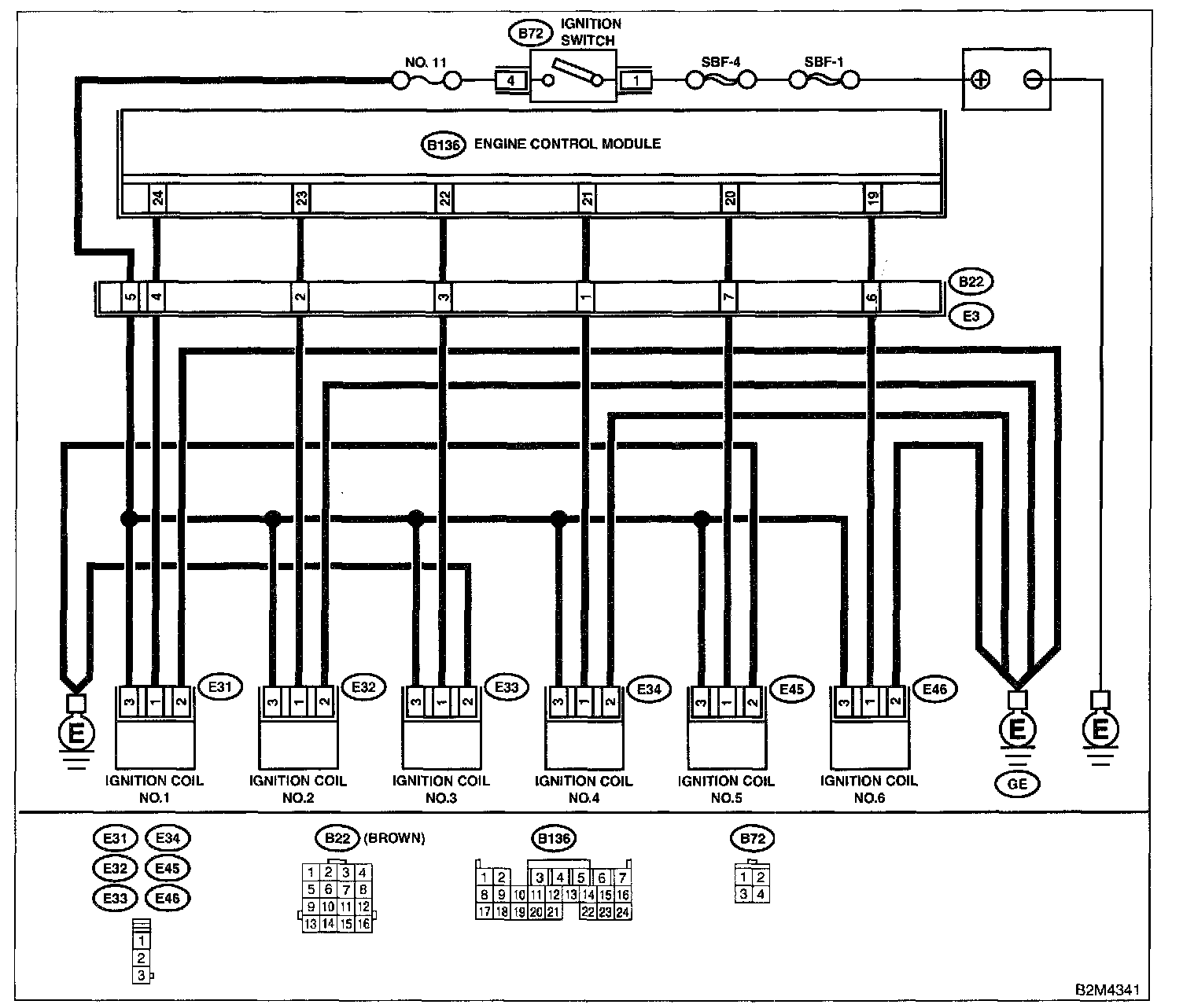

Wiring Diagram:
WIRING DIAGRAM
Step 1:

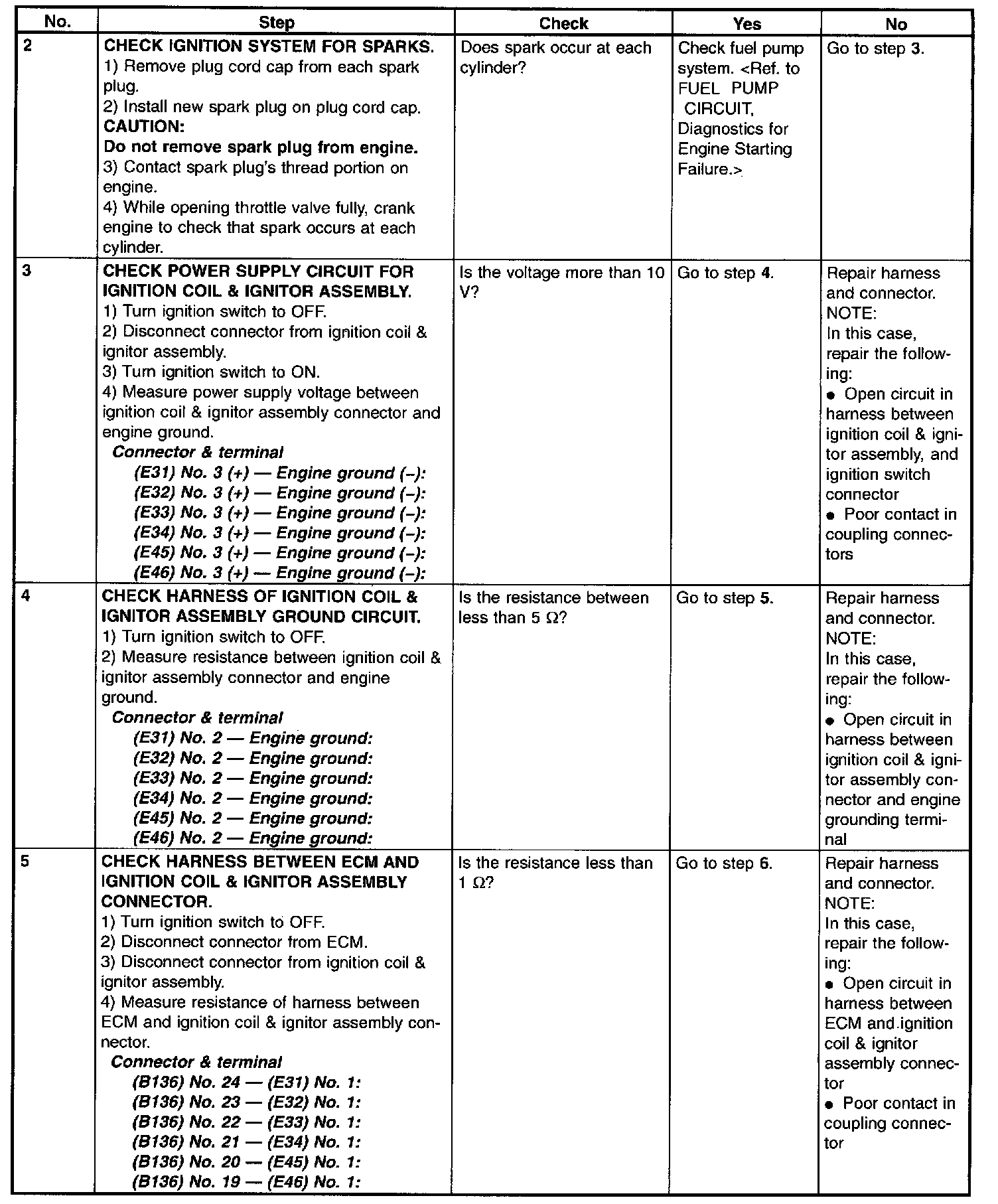

Step 2 - 5:

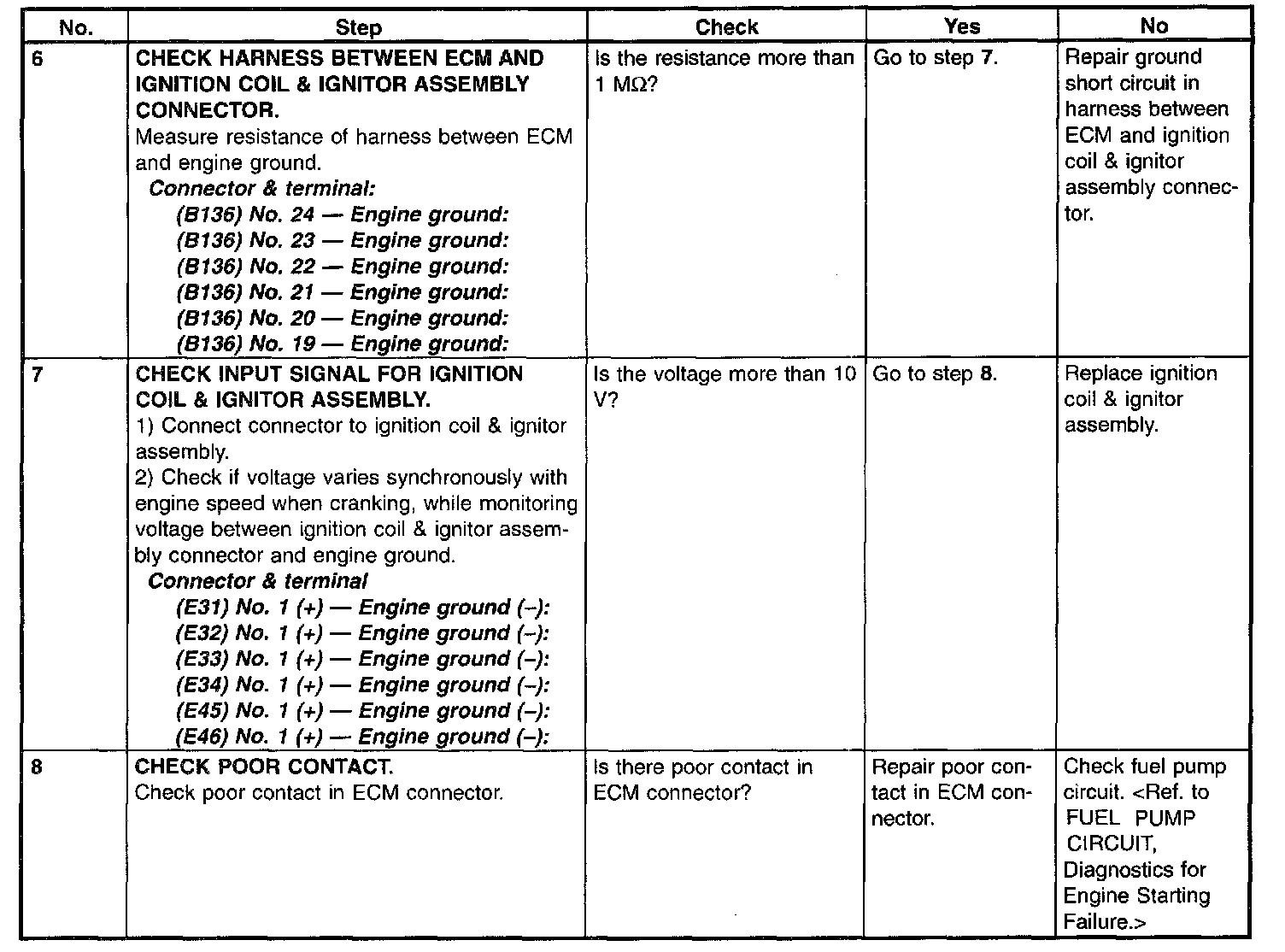

Step 6 - 8:
CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY MODE and INSPECTION MODE.
WIRING DIAGRAM
