Engine Coolant Temperature Sensor: Installation

Install in the reverse order of removal.

1. Tightening torque:  16 N.m (0.16 kgf-m, 1.2 ft-lb)

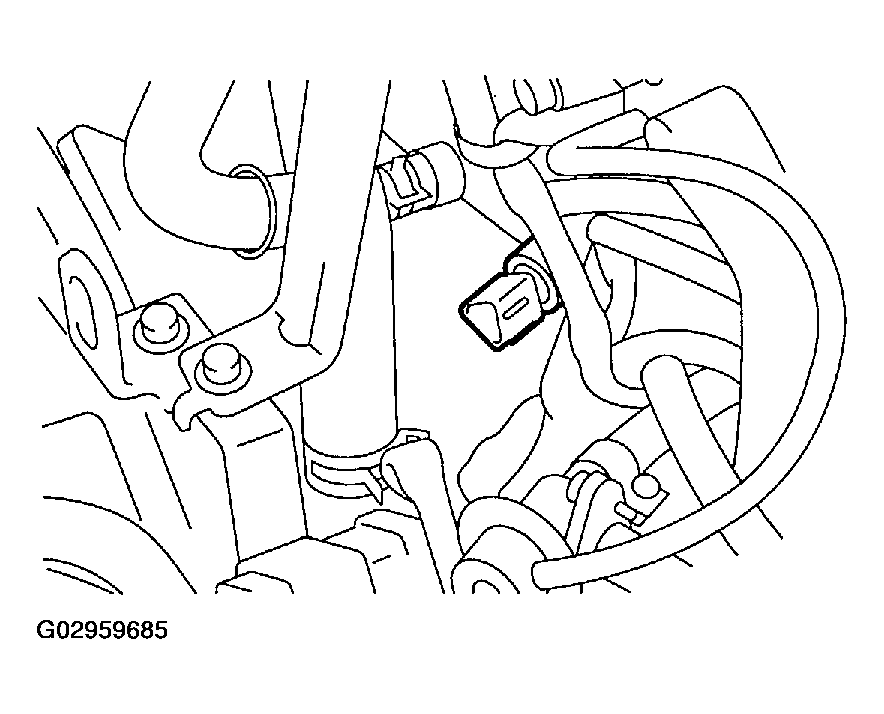

Fig 1: Installing Engine Coolant Temperature Sensor

Courtesy of SUBARU OF AMERICA, INC.
