Engine Coolant Temperature Sensor: Removal

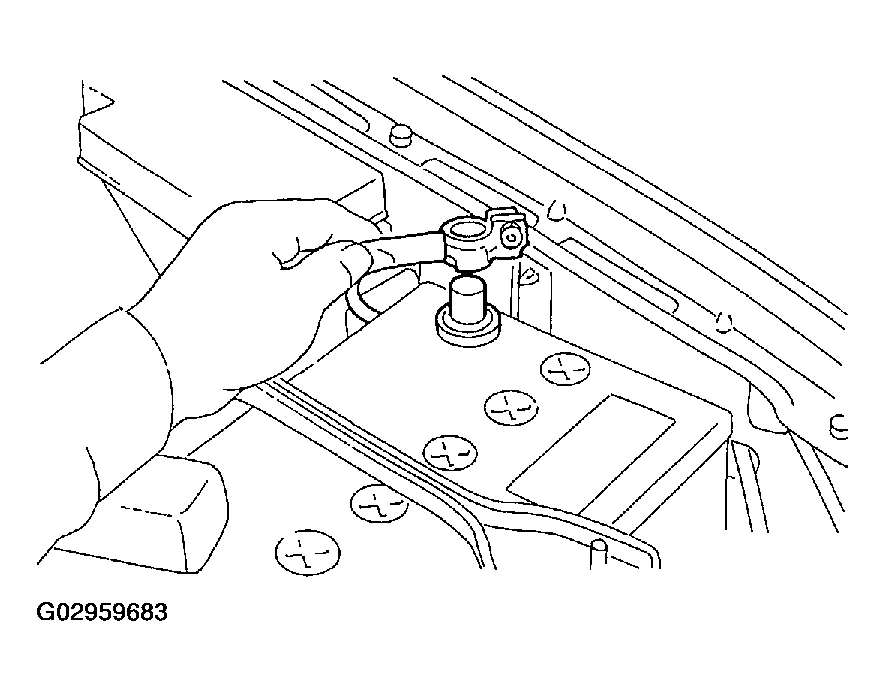

- Disconnect battery ground cable.
Courtesy of SUBARU OF AMERICA, INC.
- Remove air intake duct and air cleaner case. Refer to
REMOVAL
, Air Intake Duct and
REMOVAL
, Air Cleaner Case.

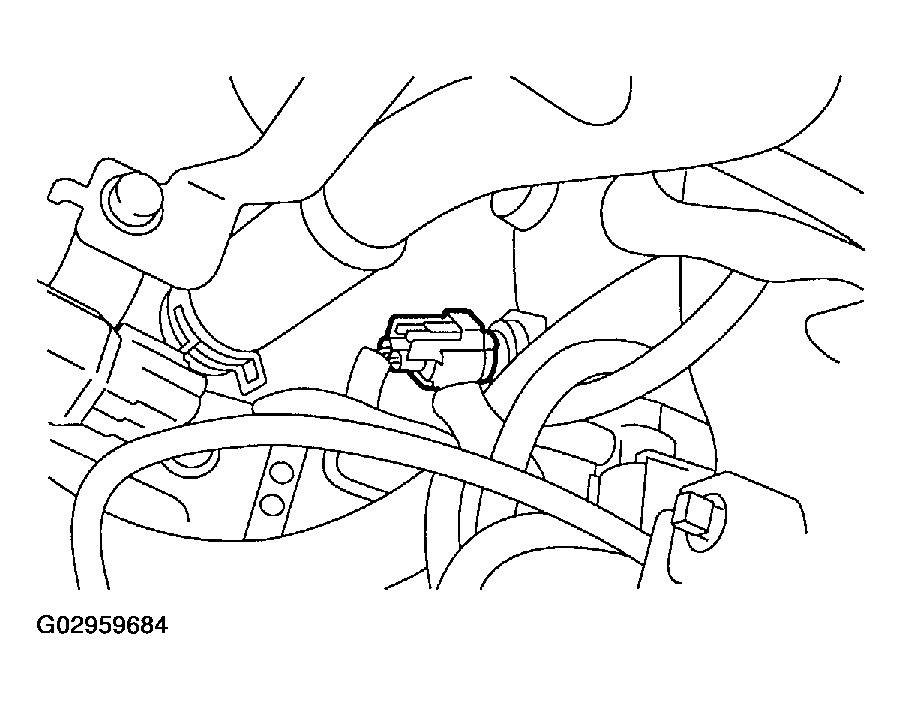

- Disconnect connector from engine coolant temperature sensor.
Courtesy of SUBARU OF AMERICA, INC.
- Remove engine coolant temperature sensor.
