Fuel Line

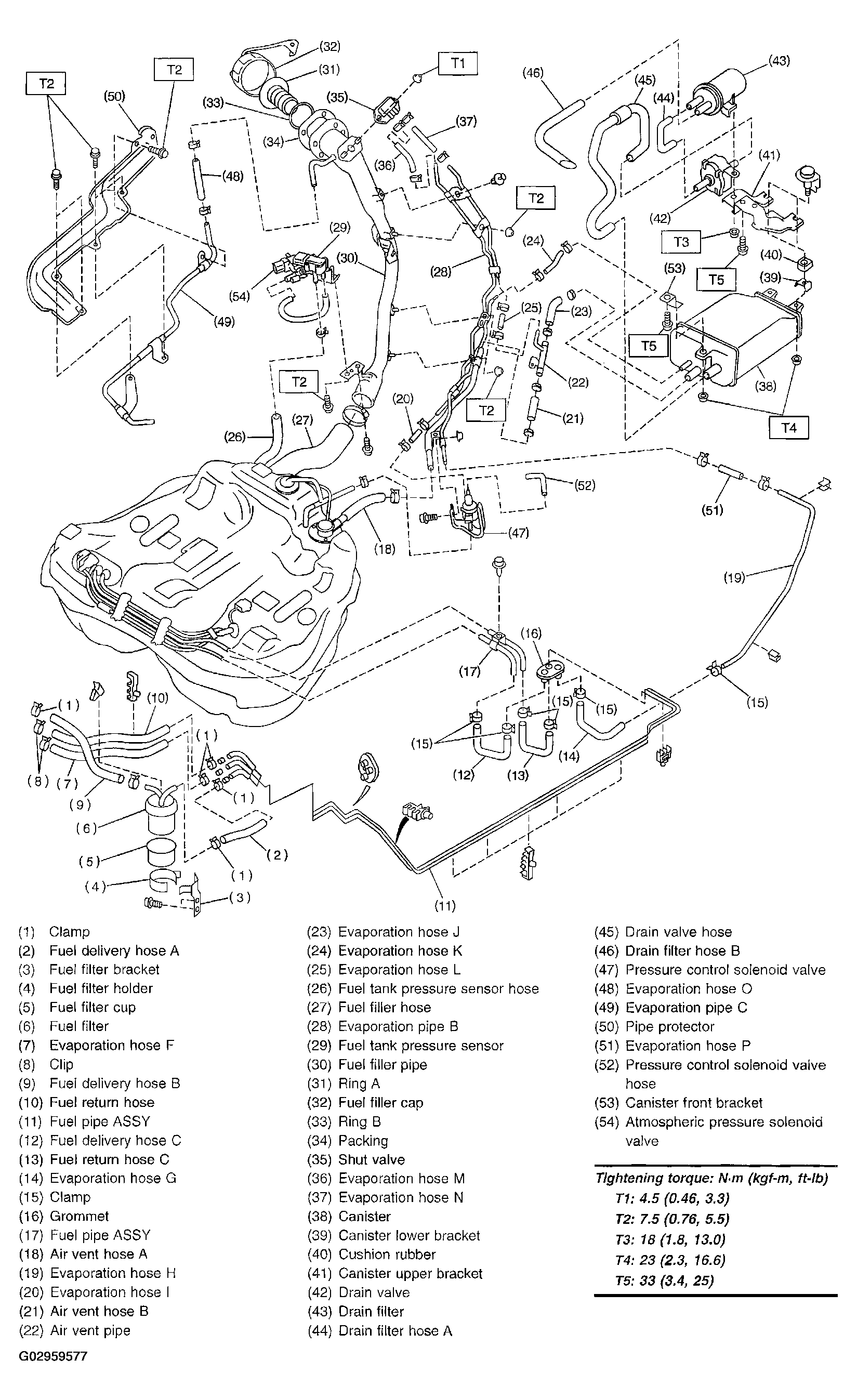

Fig 1: Identifying Fuel Line Components
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
