Intake Manifold: Removal

Release fuel pressure. Refer to OPERATION , Fuel.

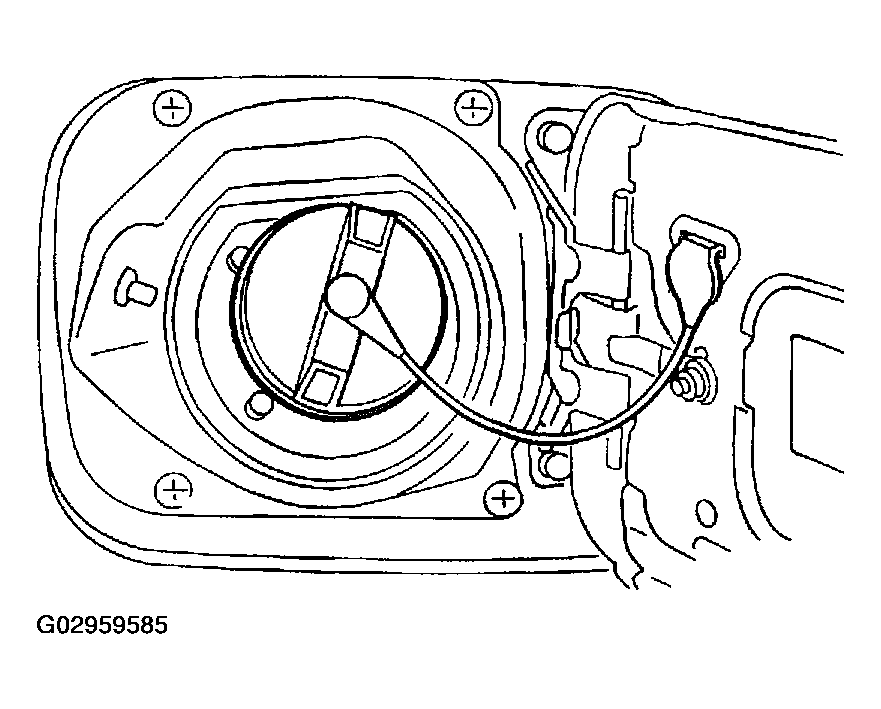

Open fuel flap lid, and remove fuel filler cap.

Fig 1: Removing Fuel Filler Cap
Courtesy of SUBARU OF AMERICA, INC.

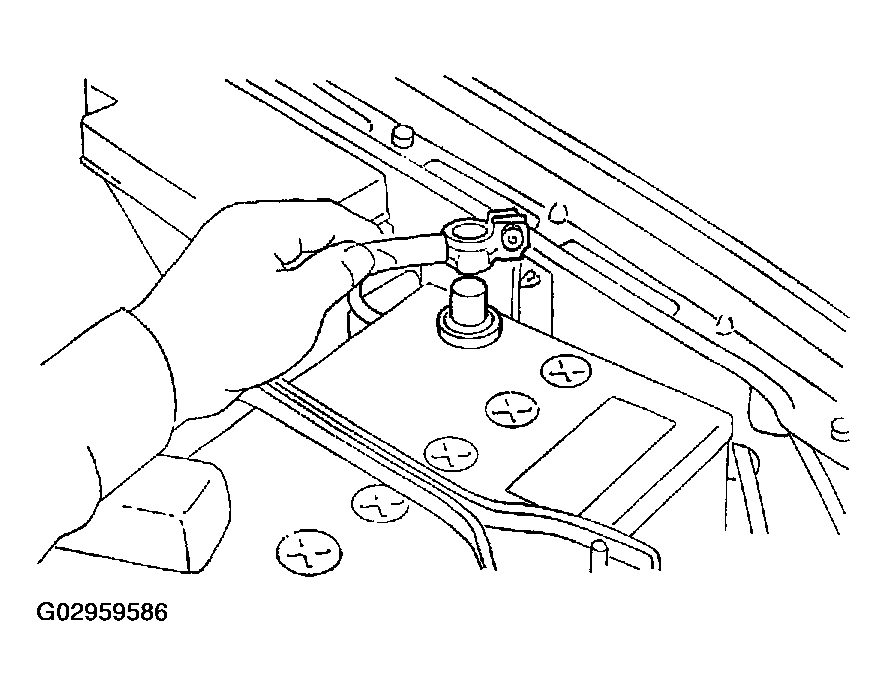

Disconnect battery ground cable.

Fig 2: Disconnecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove air intake duct and air cleaner case. Refer to REMOVAL , Air Intake Duct and REMOVAL , Air Cleaner Case.

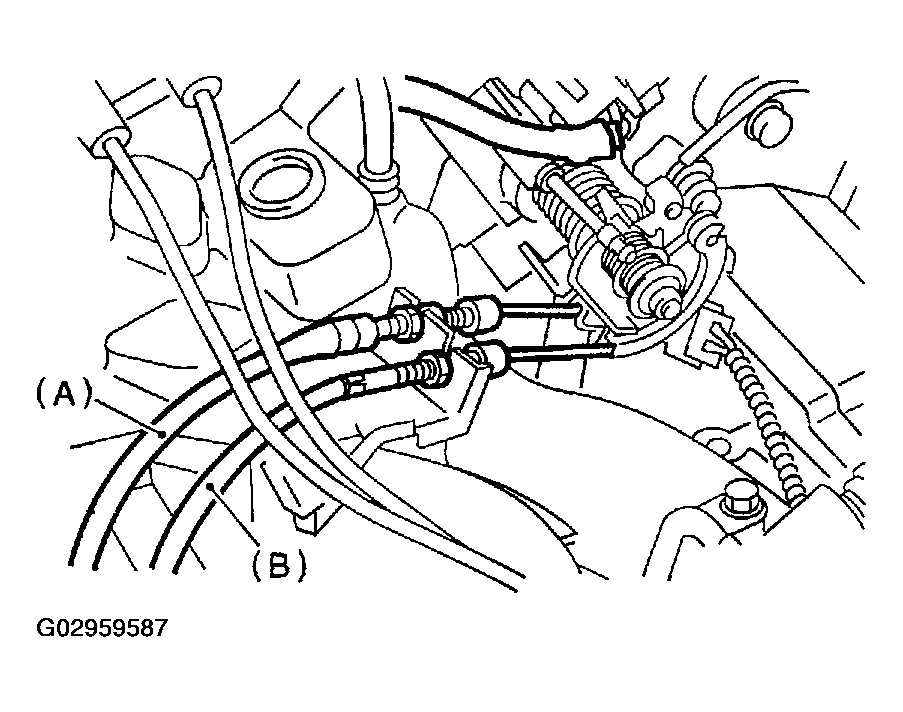

Disconnect accelerator cable (A).
Disconnect cruise control cable (B). (With cruise control model)

Fig 3: Disconnecting Accelerator Cable & Cruise Control Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove power steering pump and tank from brackets.

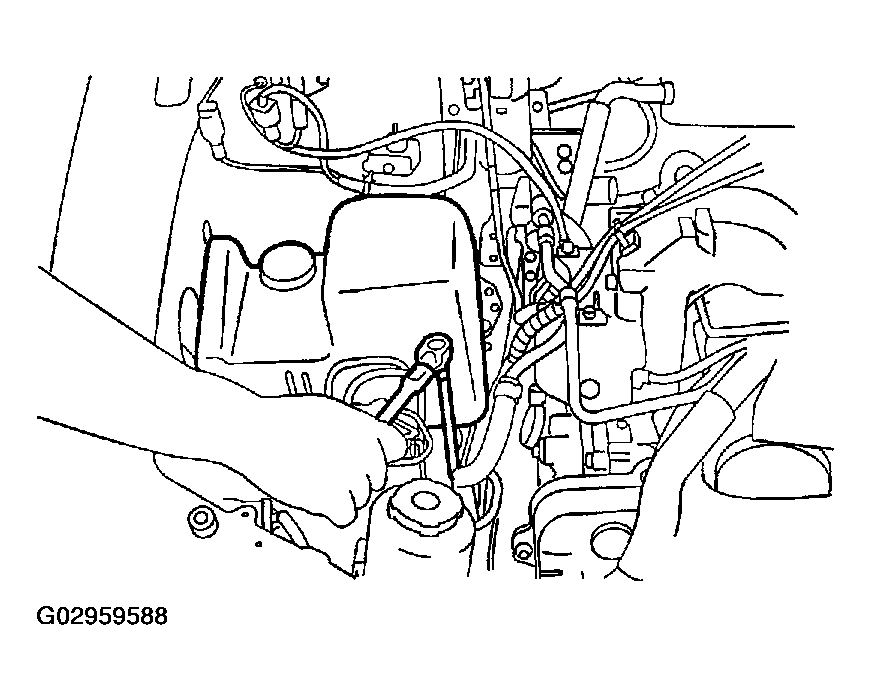

1. Remove resonator chamber.

  Fig 4: Removing Resonator Chamber
  Courtesy of SUBARU OF AMERICA, INC.
2. Remove V-belt covers.

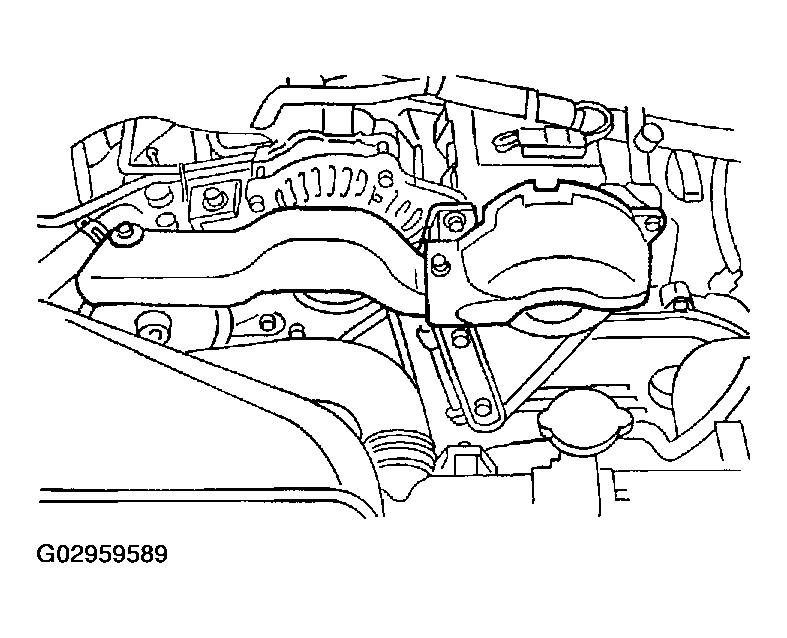

  Fig 5: Removing V-Belt Covers
  Courtesy of SUBARU OF AMERICA, INC.
3. Loosen lock bolt and slider bolt, and remove power steering pump drive V-belt.

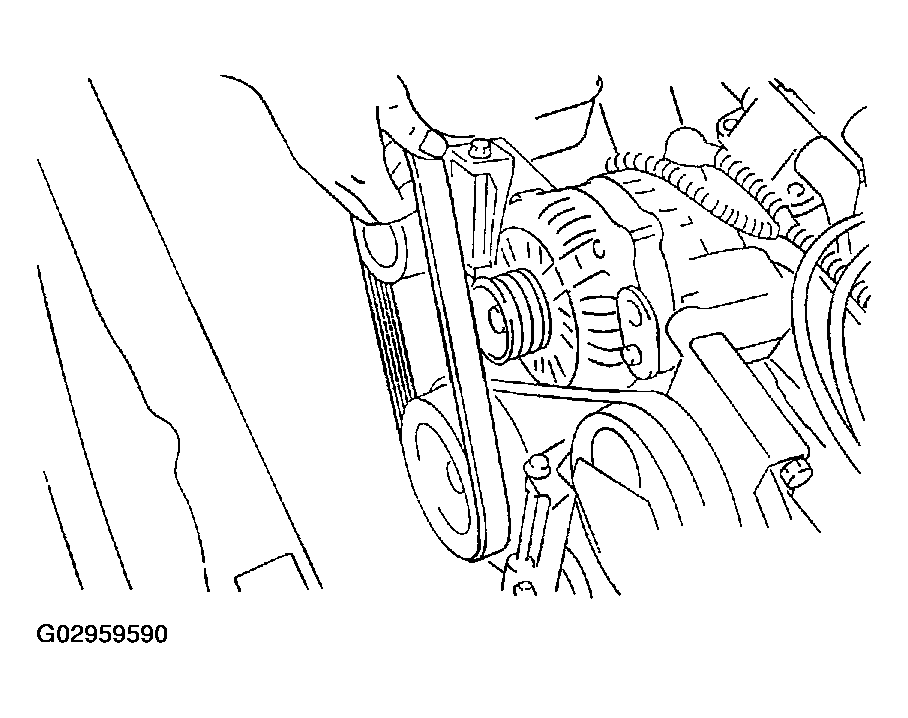

  Fig 6: Removing Power Steering Pump Drive V-Belt
  Courtesy of SUBARU OF AMERICA, INC.

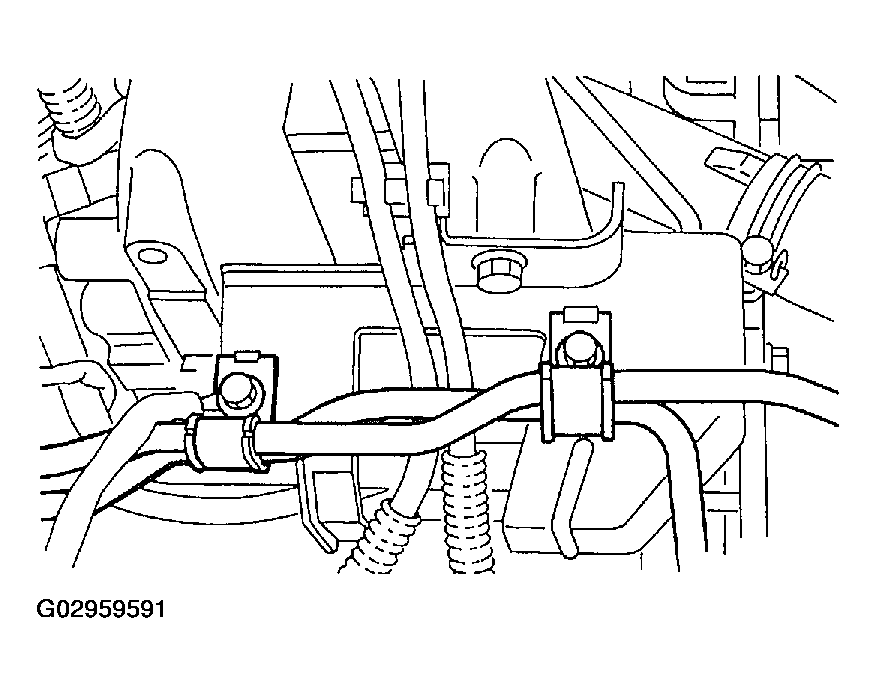

4. Remove bolts which hold power steering pipes onto intake manifold protector.
  NOTE: Do not disconnect power steering hose.

  Fig 7: Removing Bolts Holding Power Steering Pipes Onto Intake Manifold Protector
  Courtesy of SUBARU OF AMERICA, INC.
5. Remove bolts which install power steering pump bracket.

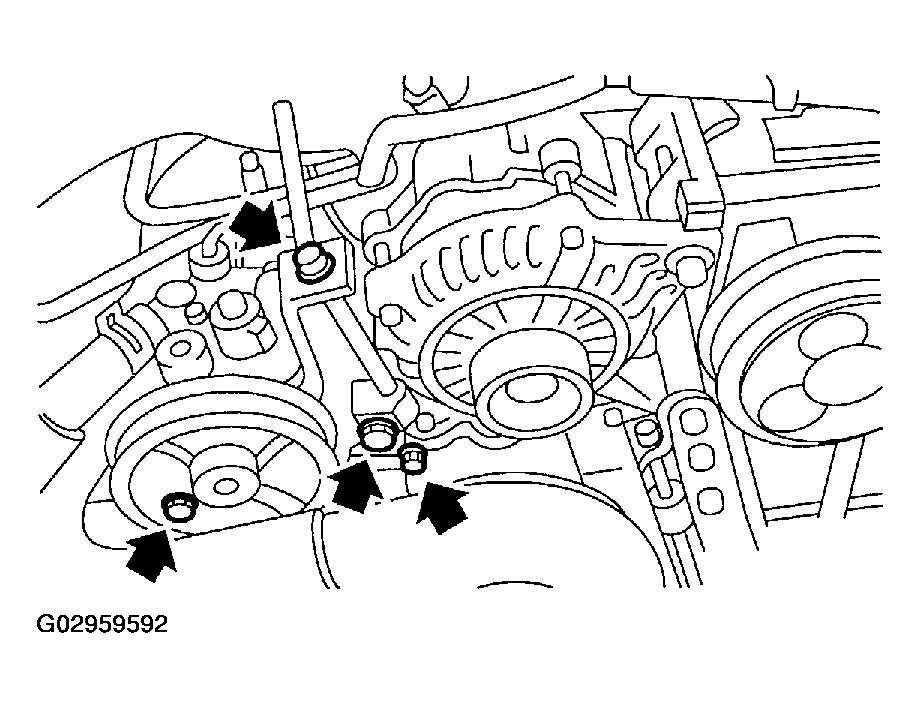

  Fig 8: Removing Power Steering Pump Bracket Bolts
  Courtesy of SUBARU OF AMERICA, INC.

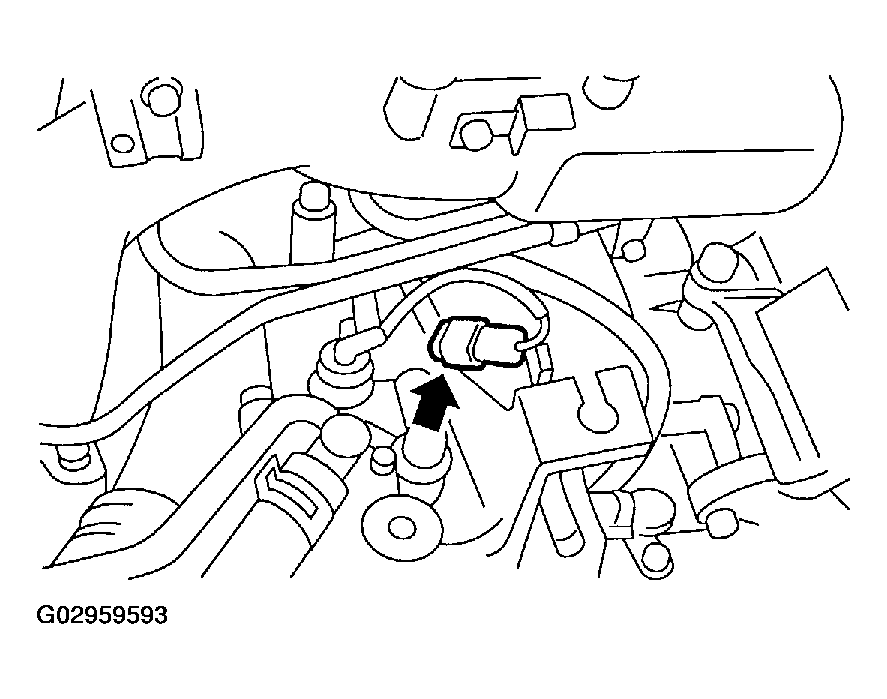

6. Disconnect connector from power steering pump switch.

  Fig 9: Disconnecting Connector From Power Steering Pump Switch
  Courtesy of SUBARU OF AMERICA, INC.
7. Remove power steering tank from the bracket by pulling it upwards.

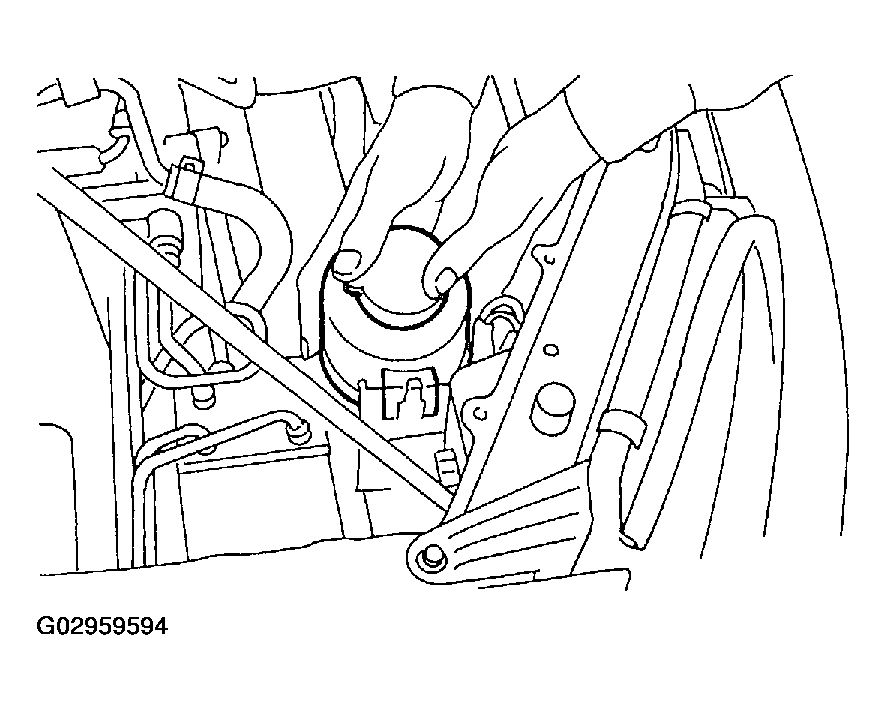

  Fig 10: Removing Power Steering Tank From Bracket
  Courtesy of SUBARU OF AMERICA, INC.

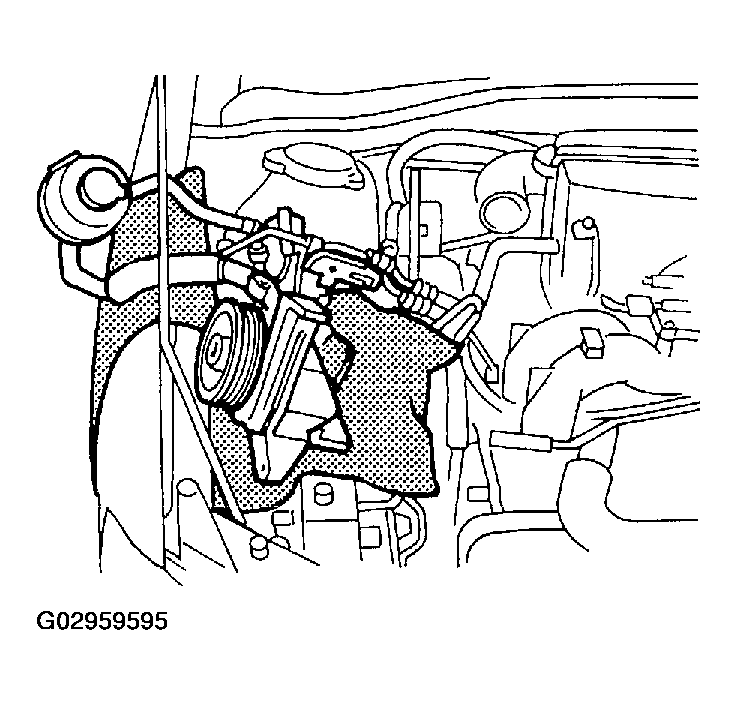

8. Place power steering pump and tank on the right side wheel apron.
Fig 11: Placing Power Steering Pump & Tank On Right Side Wheel Apron
Courtesy of SUBARU OF AMERICA, INC.
Disconnect spark plug cords from spark plugs.

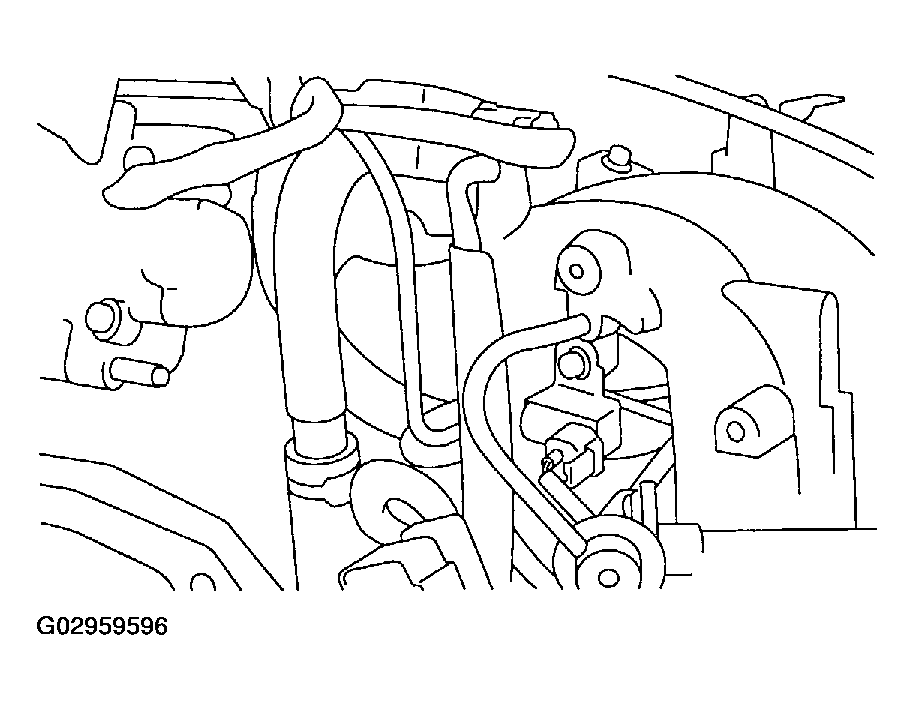

Disconnect PCV hose from intake manifold.

Fig 12: Disconnecting PCV Hose From Intake Manifold
Courtesy of SUBARU OF AMERICA, INC.
Disconnect engine coolant hose from throttle body.

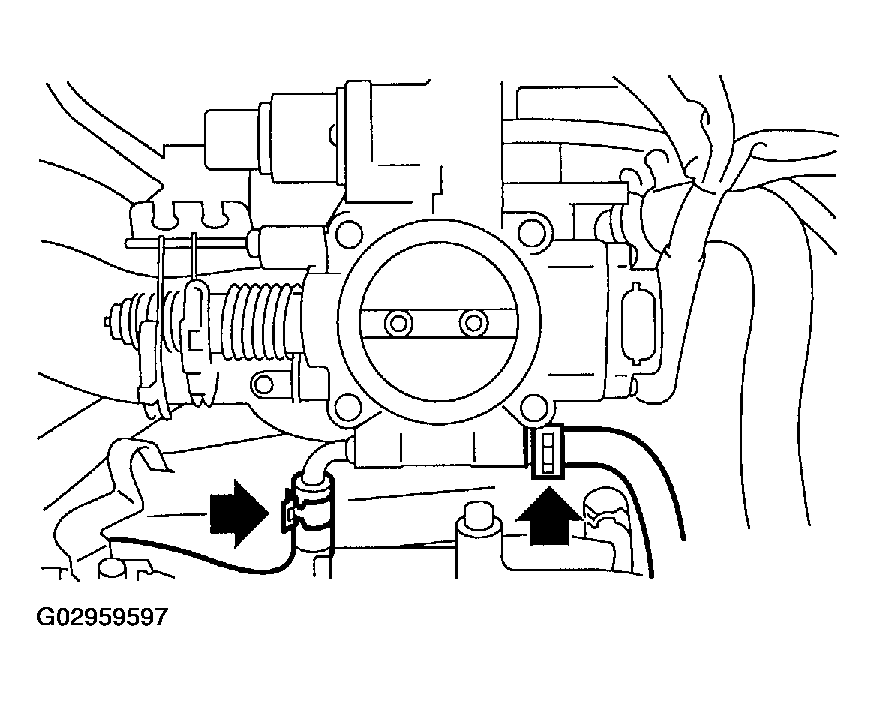

Fig 13: Disconnecting Engine Coolant Hose From Throttle Body
Courtesy of SUBARU OF AMERICA, INC.

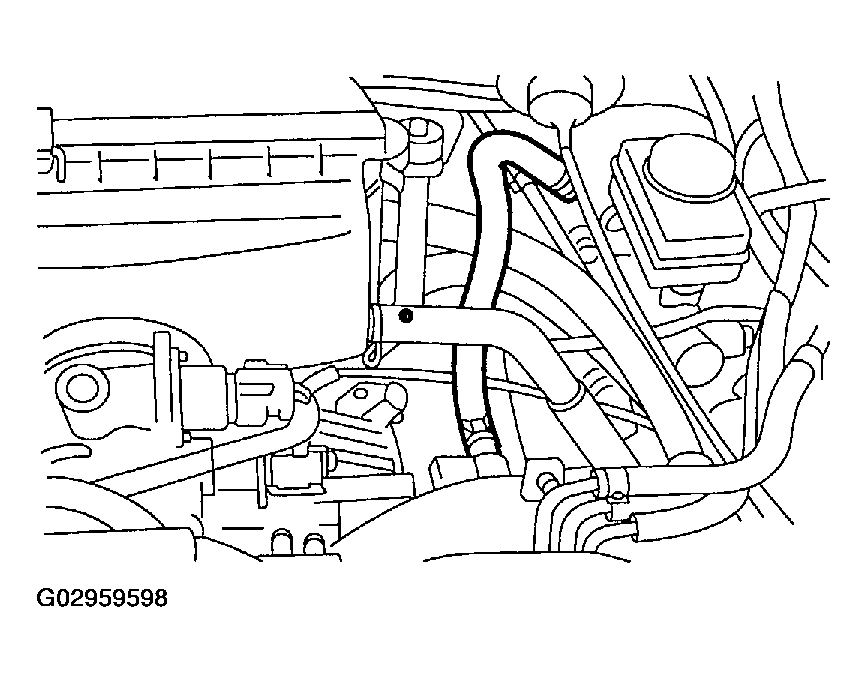

Disconnect brake booster hose.

Fig 14: Disconnecting Brake Booster Hose
Courtesy of SUBARU OF AMERICA, INC.

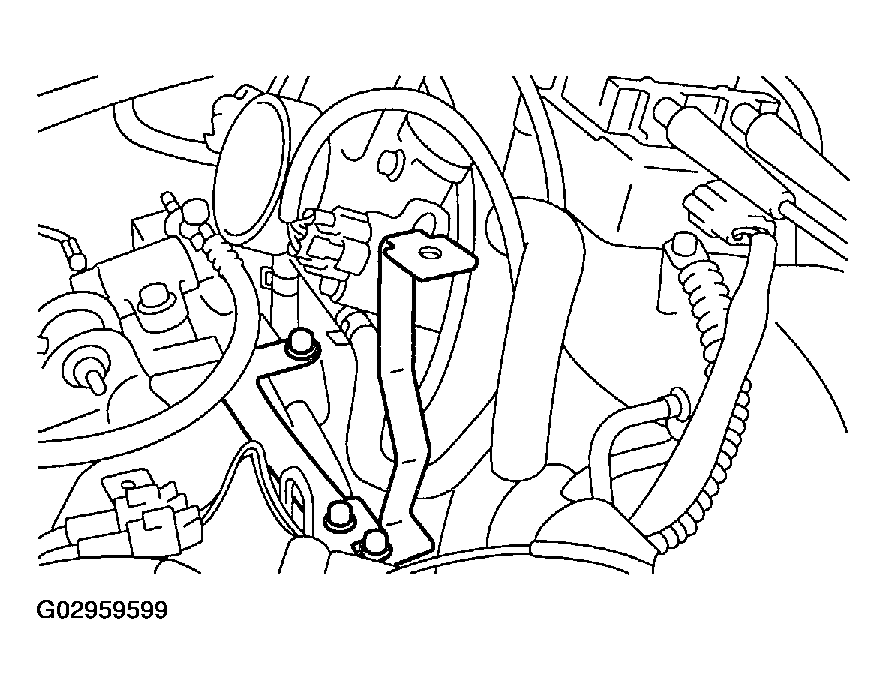

Remove air cleaner case stay RH and engine harness bracket, and disconnect engine harness connectors from bulkhead harness connectors.

Fig 15: Disconnecting Engine Harness Connectors From Bulkhead Harness Connectors
Courtesy of SUBARU OF AMERICA, INC.

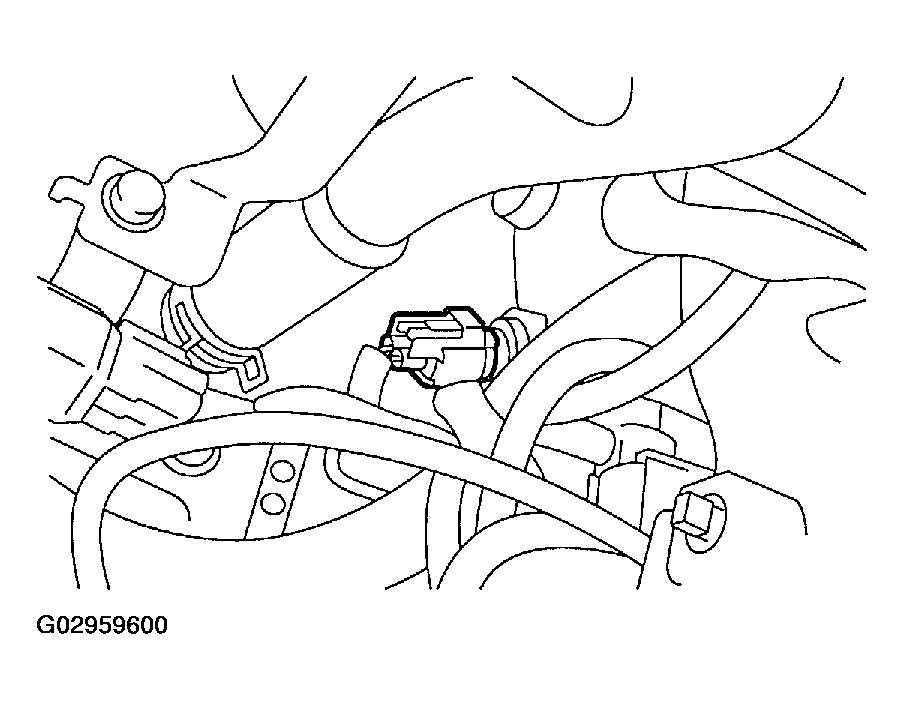

Disconnect connectors from engine coolant temperature sensor.

Fig 16: Disconnecting Connectors From Engine Coolant Temperature Sensor
Courtesy of SUBARU OF AMERICA, INC.
Disconnect knock sensor connector.

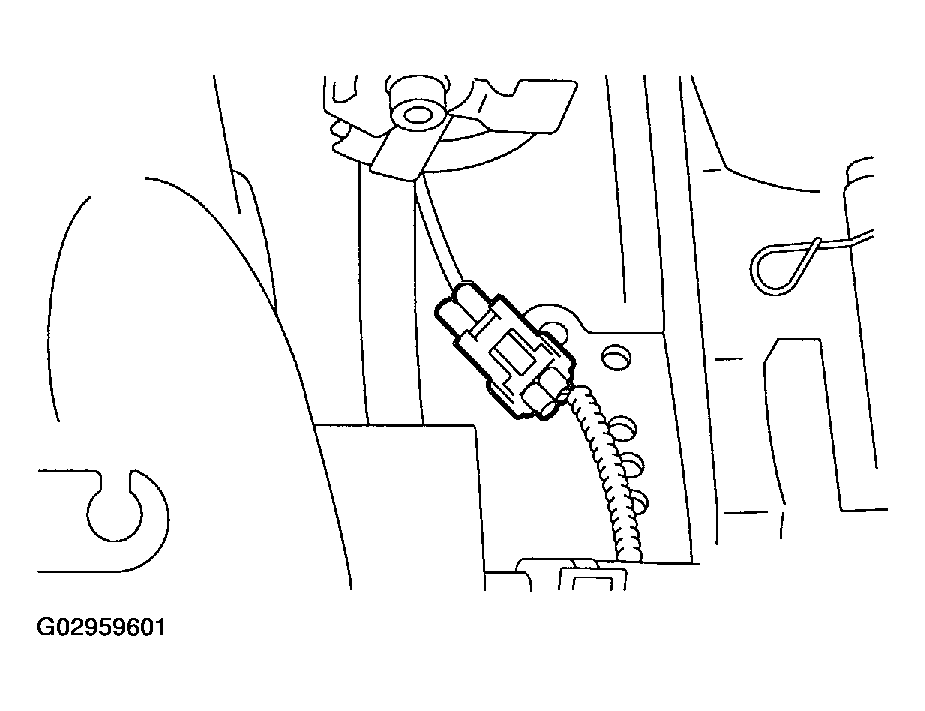

Fig 17: Disconnecting Knock Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.
Disconnect connector from crankshaft position sensor.

Fig 18: Disconnecting Connector From Crankshaft Position Sensor
Courtesy of SUBARU OF AMERICA, INC.

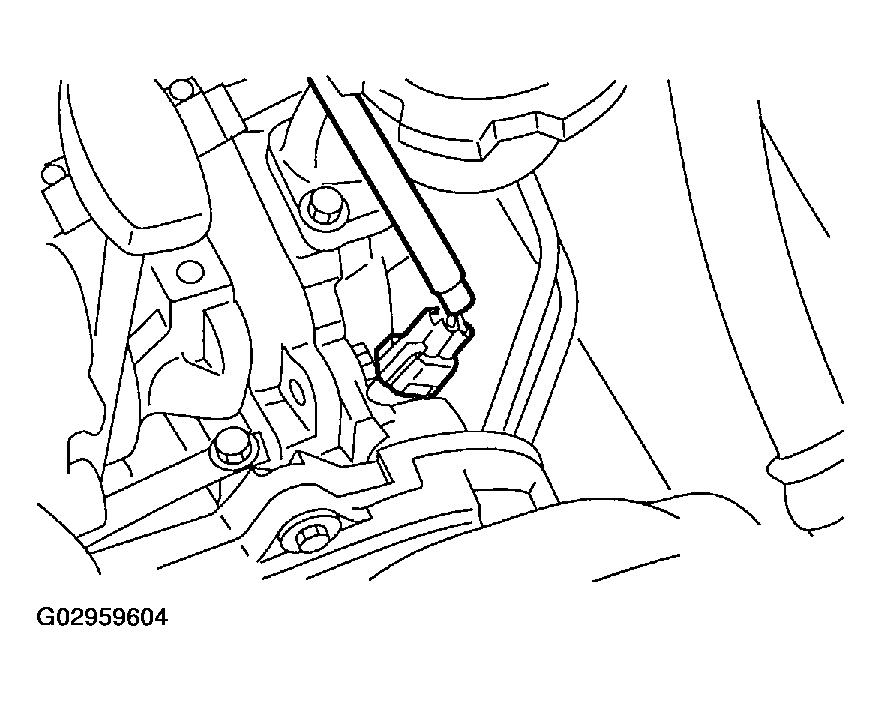

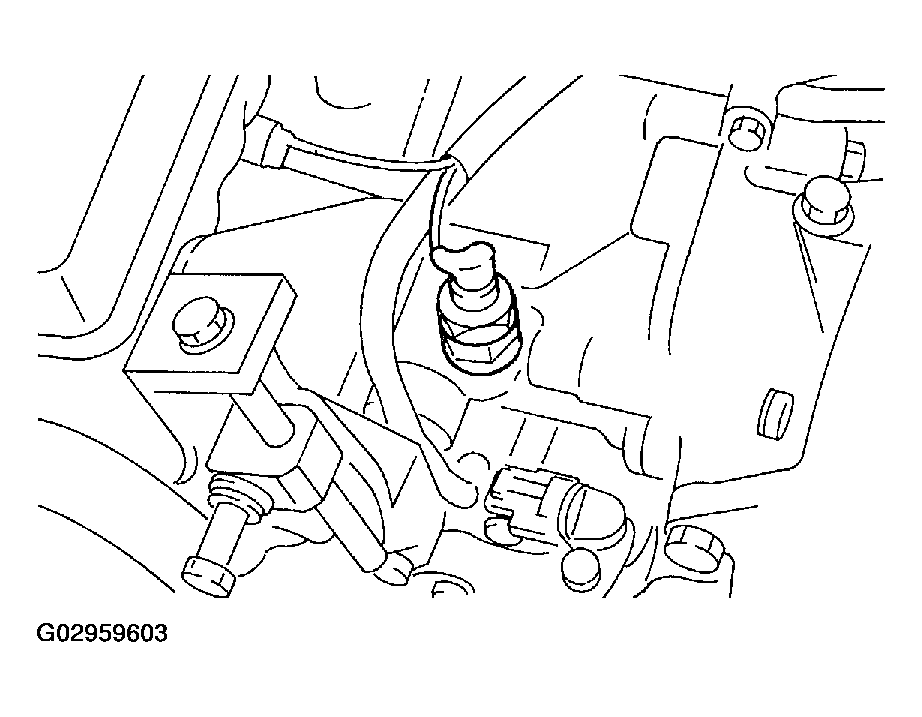

Disconnect connector from oil pressure switch.

Fig 19: Disconnecting Connector From Oil Pressure Switch
Courtesy of SUBARU OF AMERICA, INC.

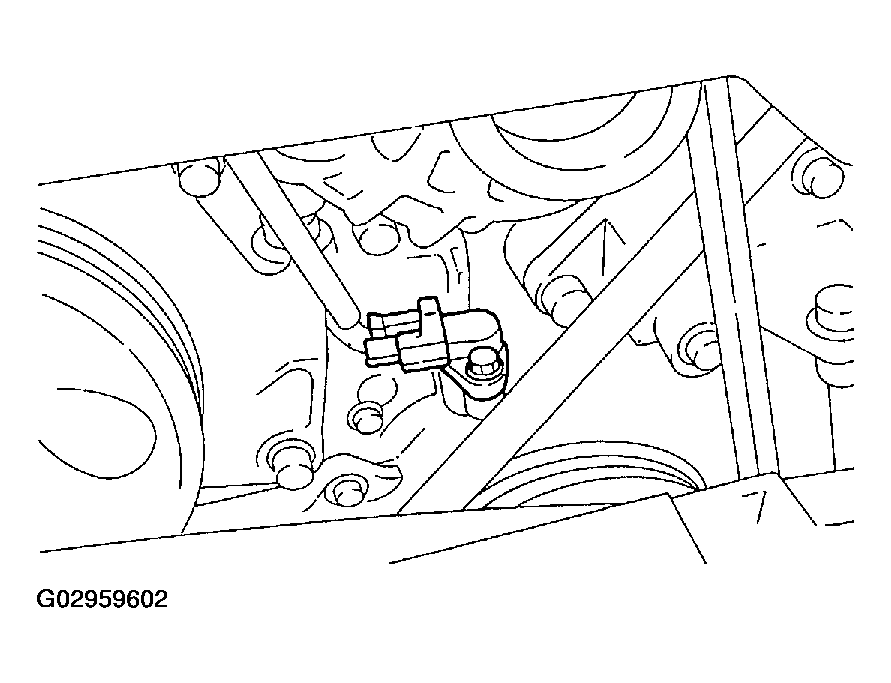

Disconnect connector from camshaft position sensor.

Fig 20: Disconnecting Connector From Camshaft Position Sensor
Courtesy of SUBARU OF AMERICA, INC.

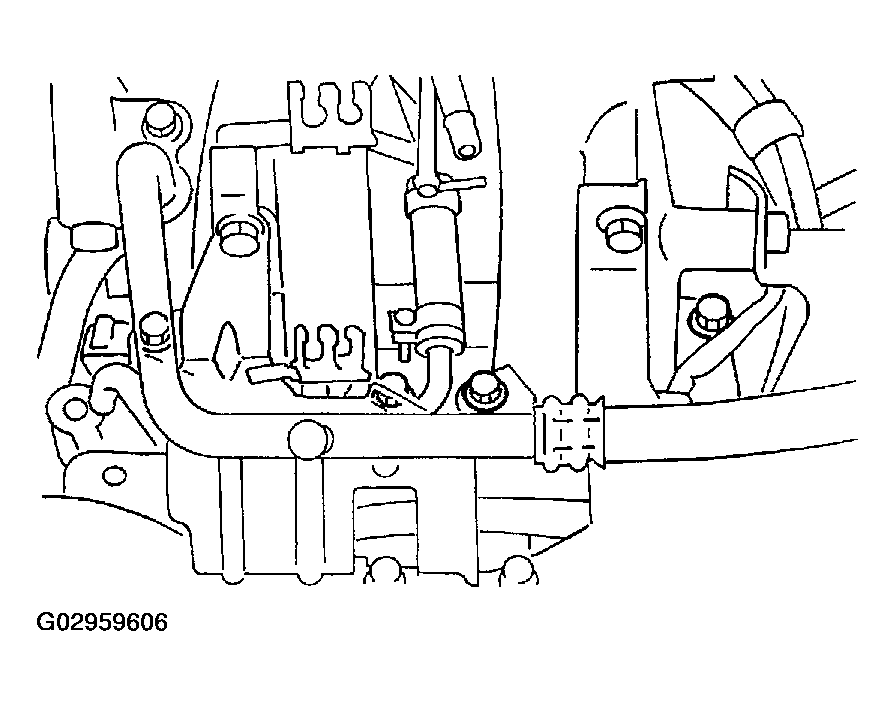

Disconnect fuel hoses from fuel pipes.
WARNING:
- Do not spill fuel.
- Catch fuel from hoses in a container or cloth.

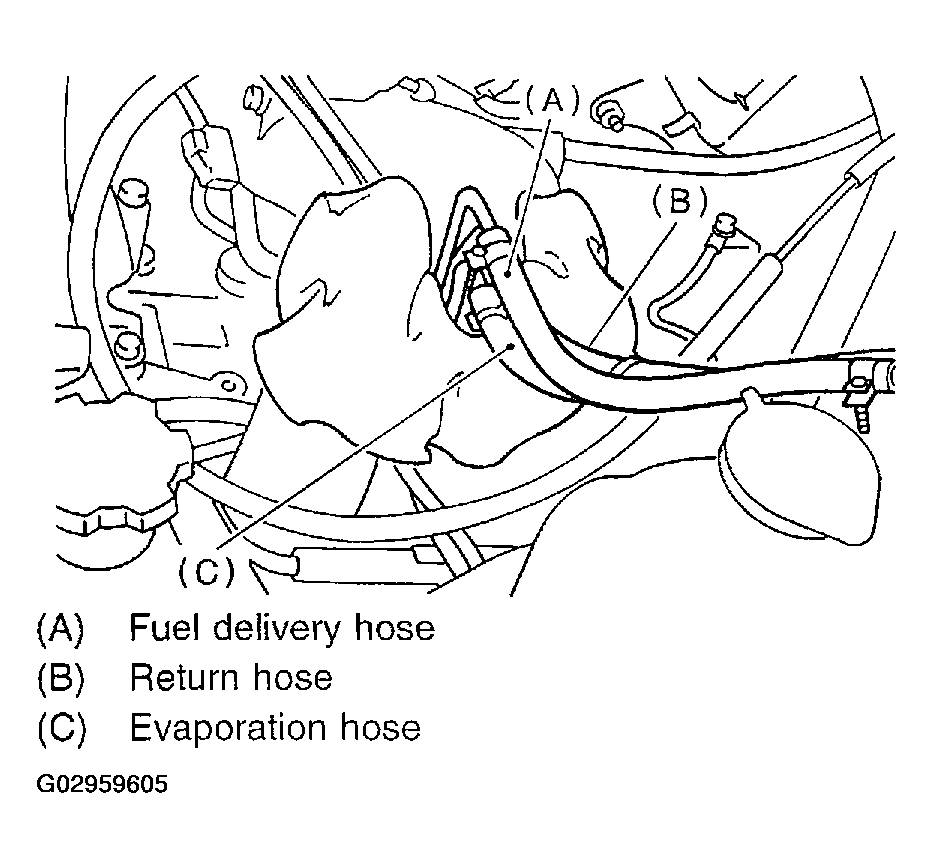

Fig 21: Disconnecting Fuel Hoses From Fuel Pipes
Courtesy of SUBARU OF AMERICA, INC.
Remove bolts which hold intake manifold onto cylinder heads.

Fig 22: Removing Bolts Holding Intake Manifold Onto Cylinder Heads
Courtesy of SUBARU OF AMERICA, INC.
Remove intake manifold.

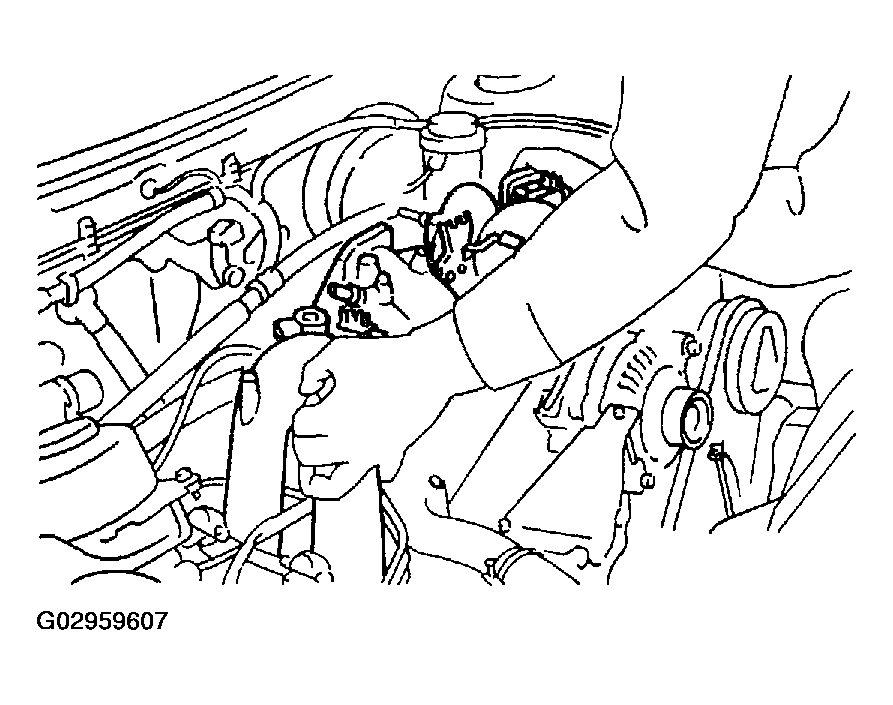

Fig 23: Removing Intake Manifold

G02959607

Courtesy of SUBARU OF AMERICA, INC.
