Body and Frame: Locations

PANEL COMPONENTS

COMPONENTS

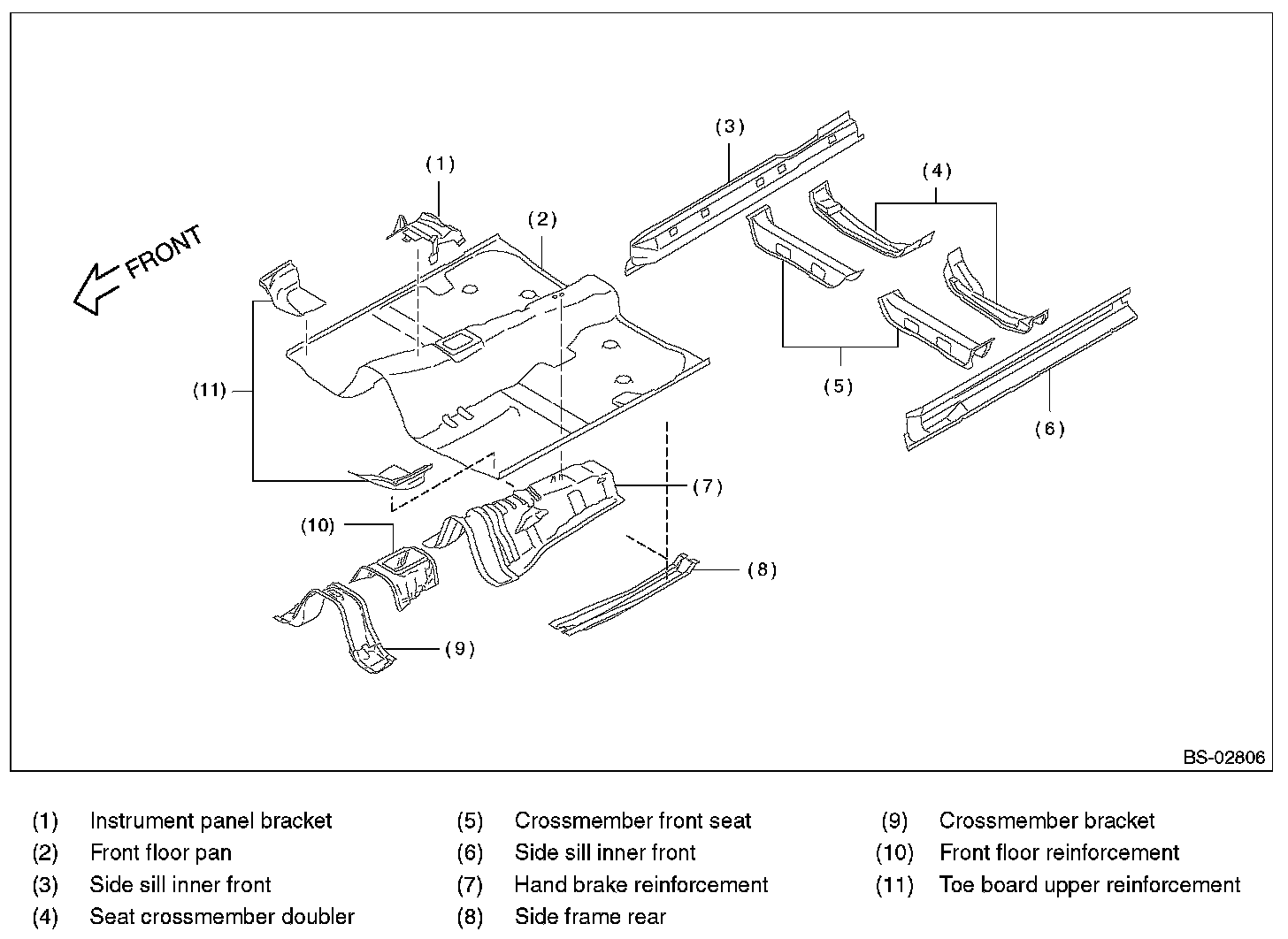

1. FLOOR PANEL

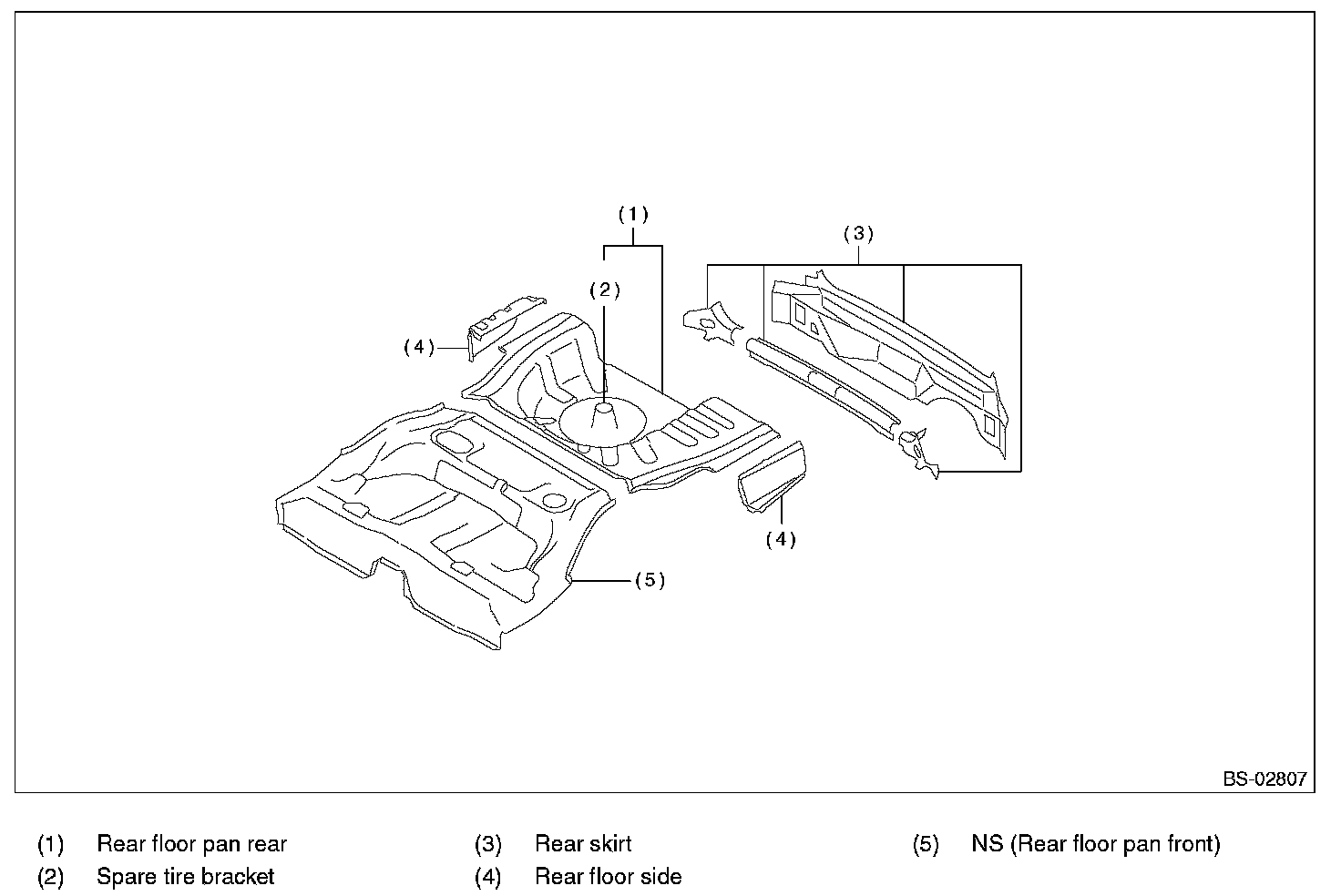

2. FLOOR PANEL & REAR SKIRT

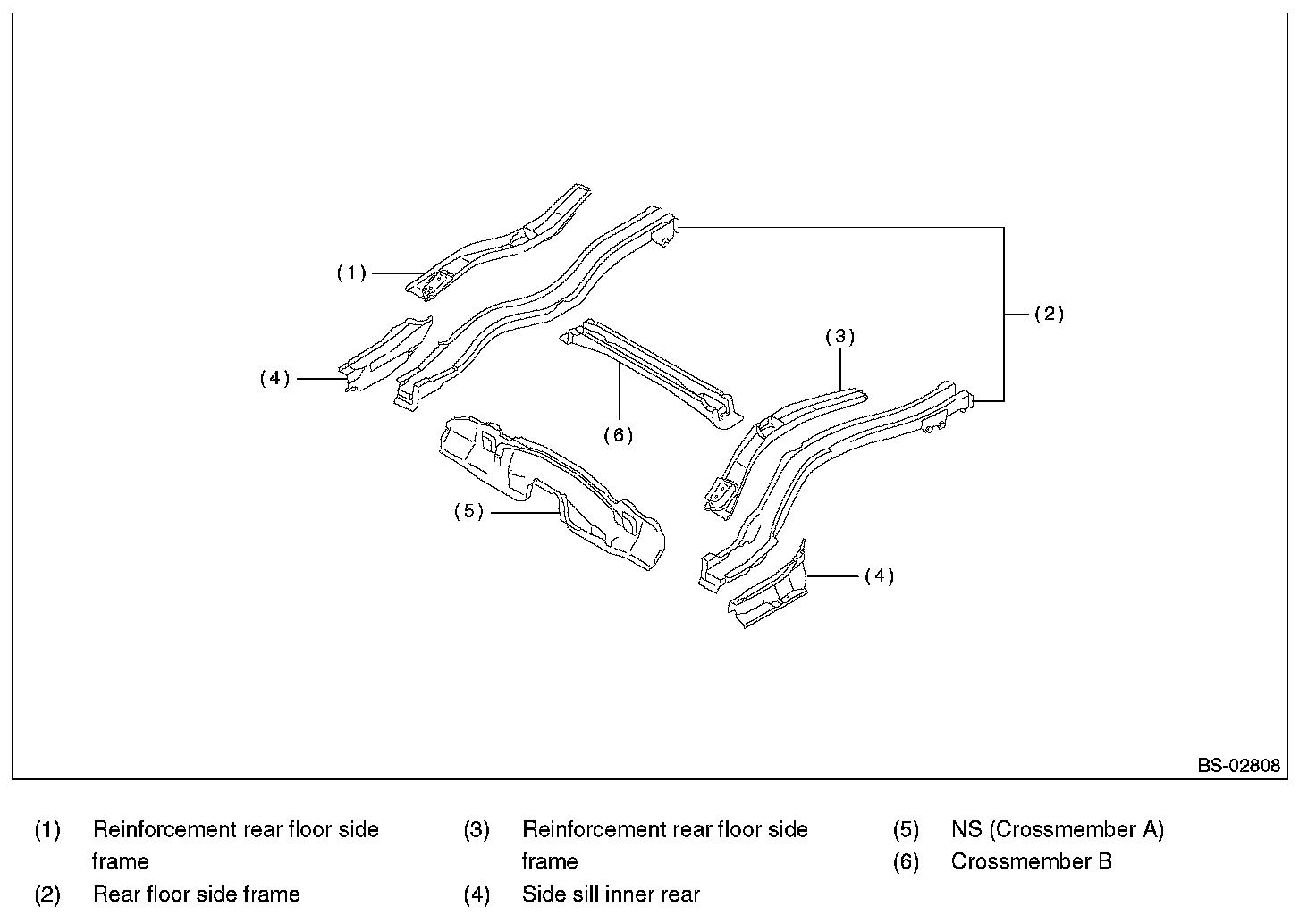

3. REAR FLOOR SIDE FRAME






4. TOE BOARD & FRONT PANEL

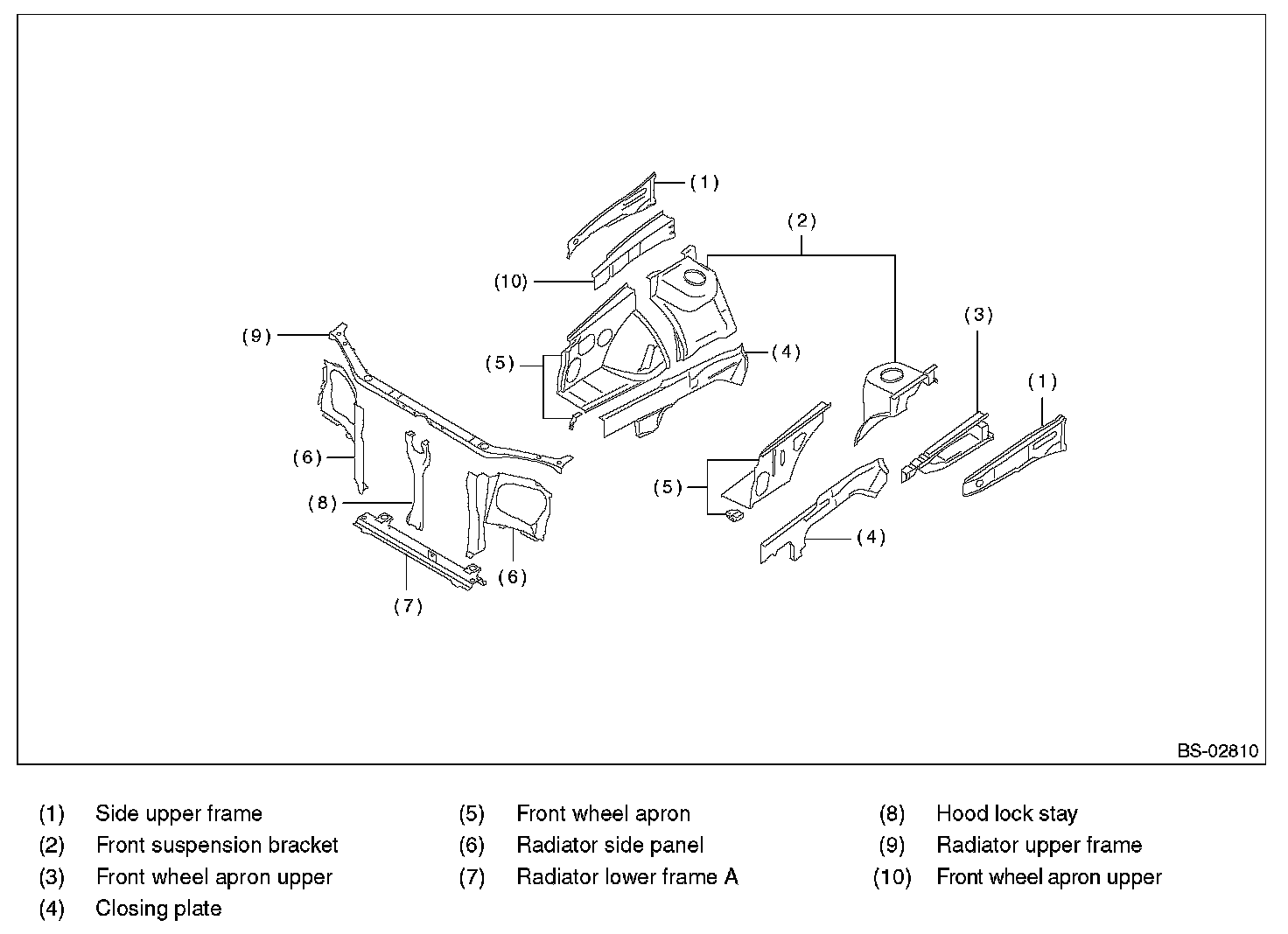

5. RADIATOR PANEL & FRONT WHEEL APRON

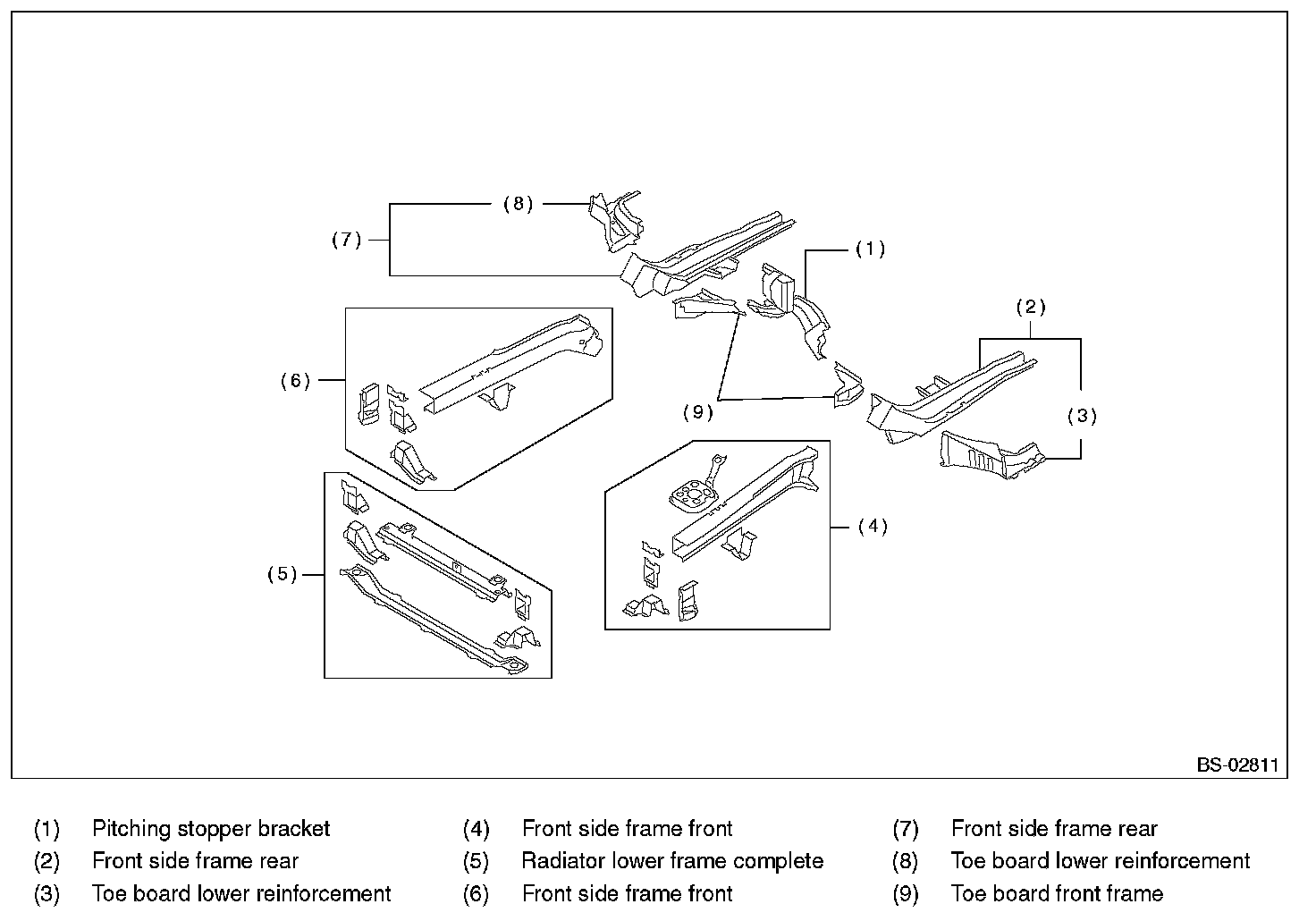

6. FRONT SIDE FRAME

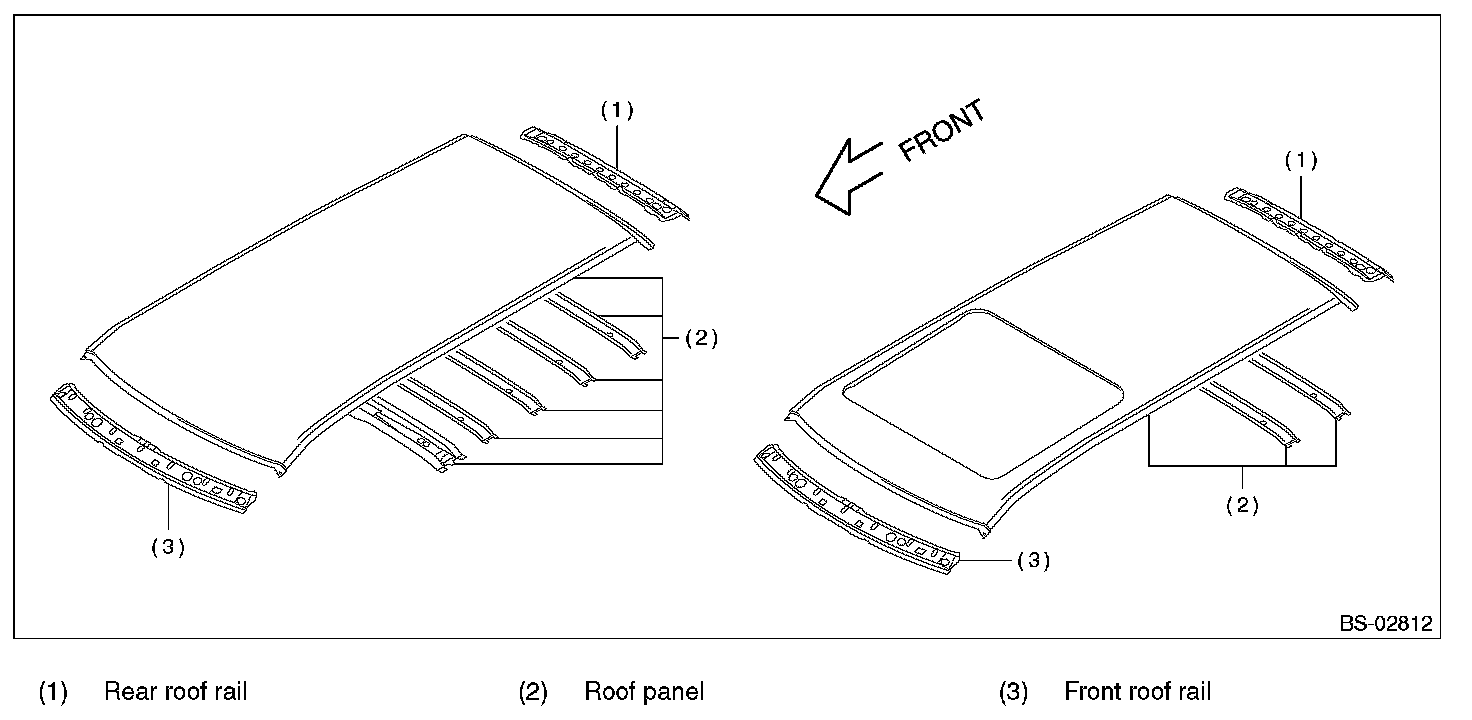

7. ROOF






8. SIDE STRUCTURE

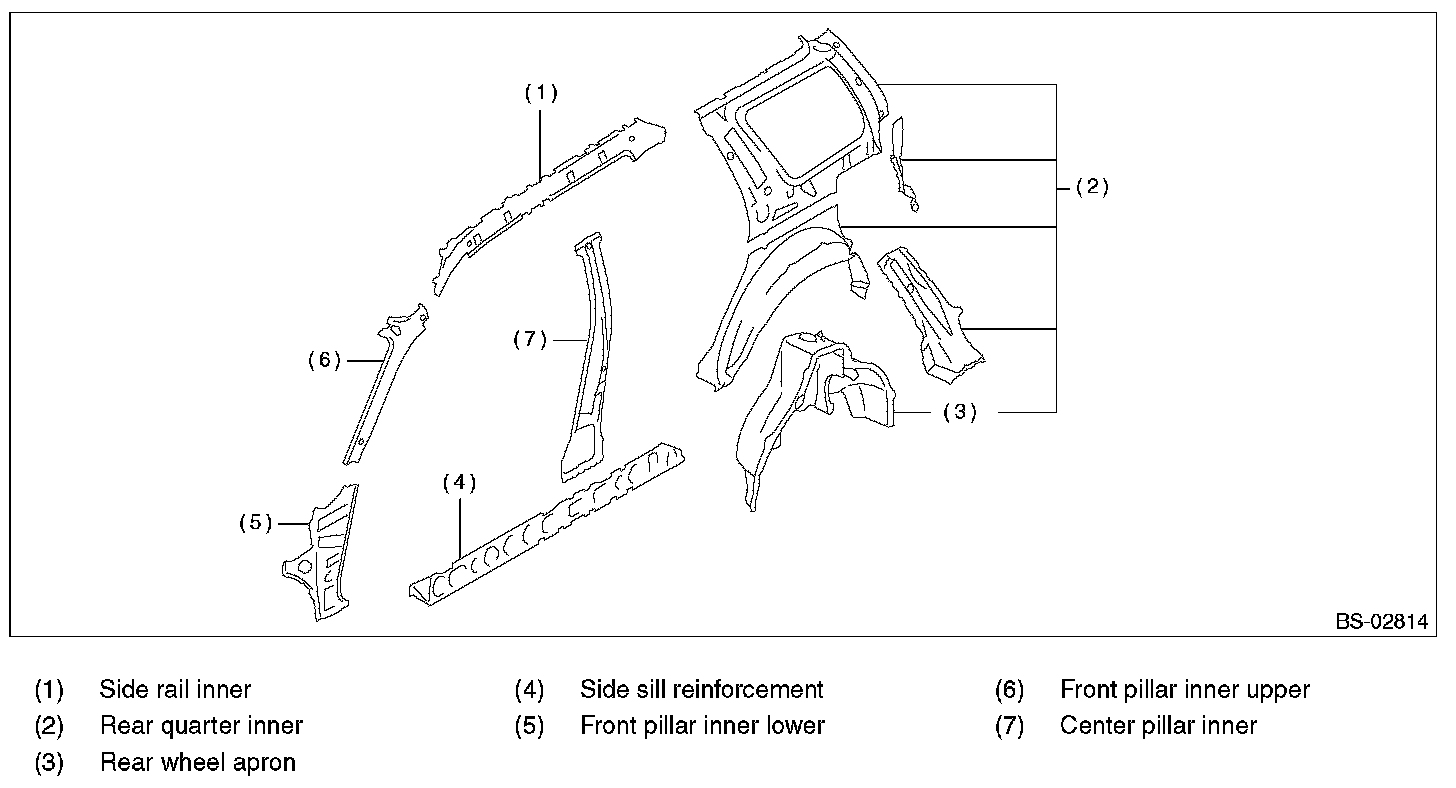

1. Inner panel

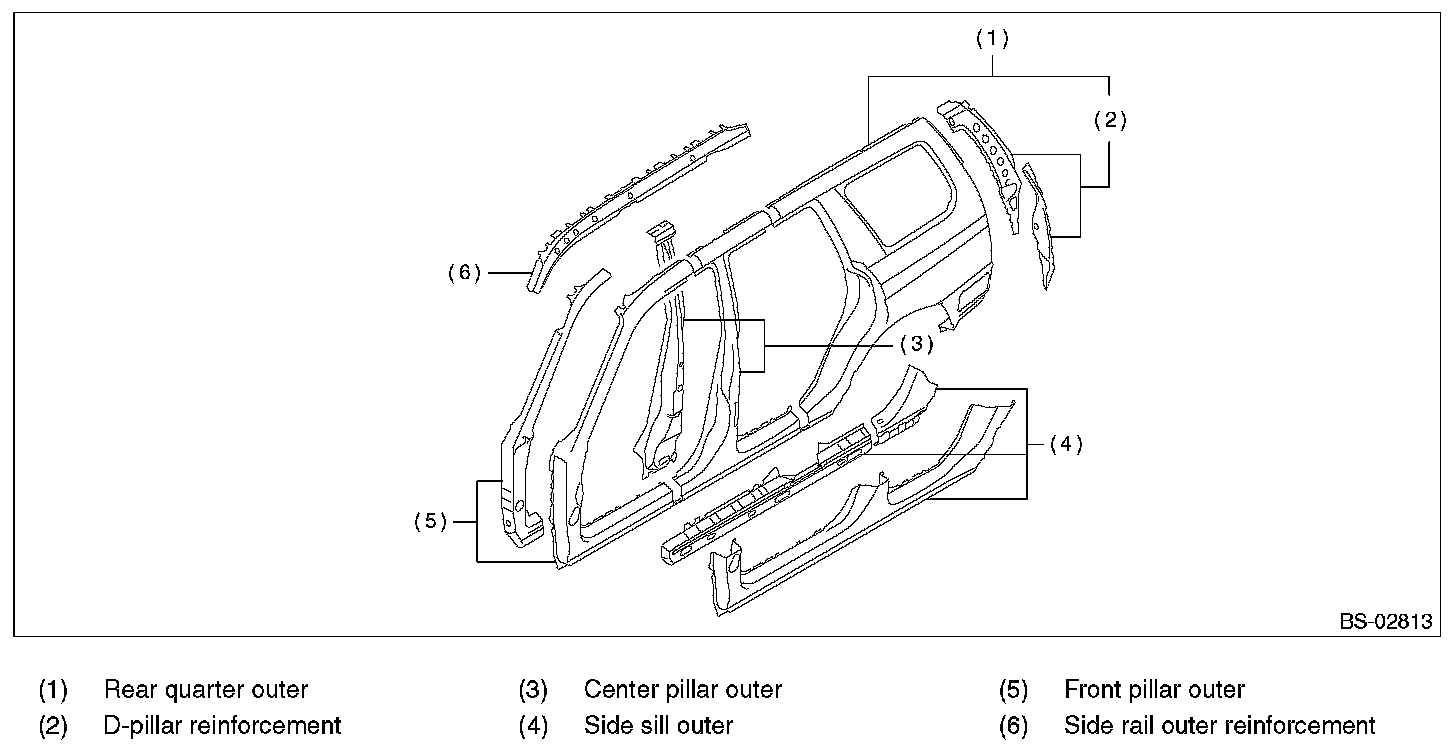

2. Outer panel
