Splash Guard: Service and Repair

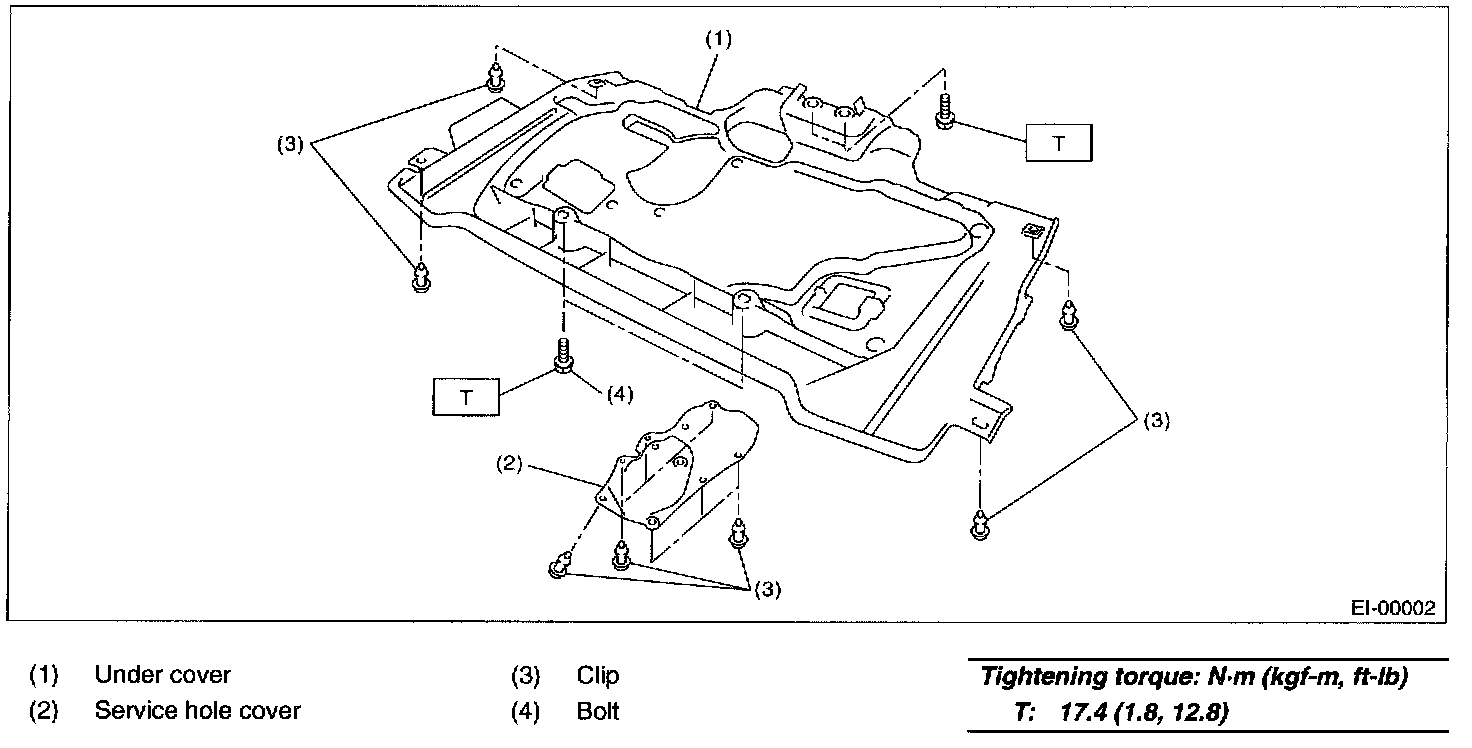

FRONT UNDER COVER

Under Cover:

REMOVAL

1. Lift-up the vehicle.
2. Loosen the bolts, remove the clips, and then remove the under cover.






INSTALLATION

Install in the reverse order of removal.

Tightening torque: 14 N.m (1.42 kgf-m, 10.3 ft-lb)
