Pinout Values and Diagnostic Parameters

Transmission Control Module (TCM) 1/0 Signal

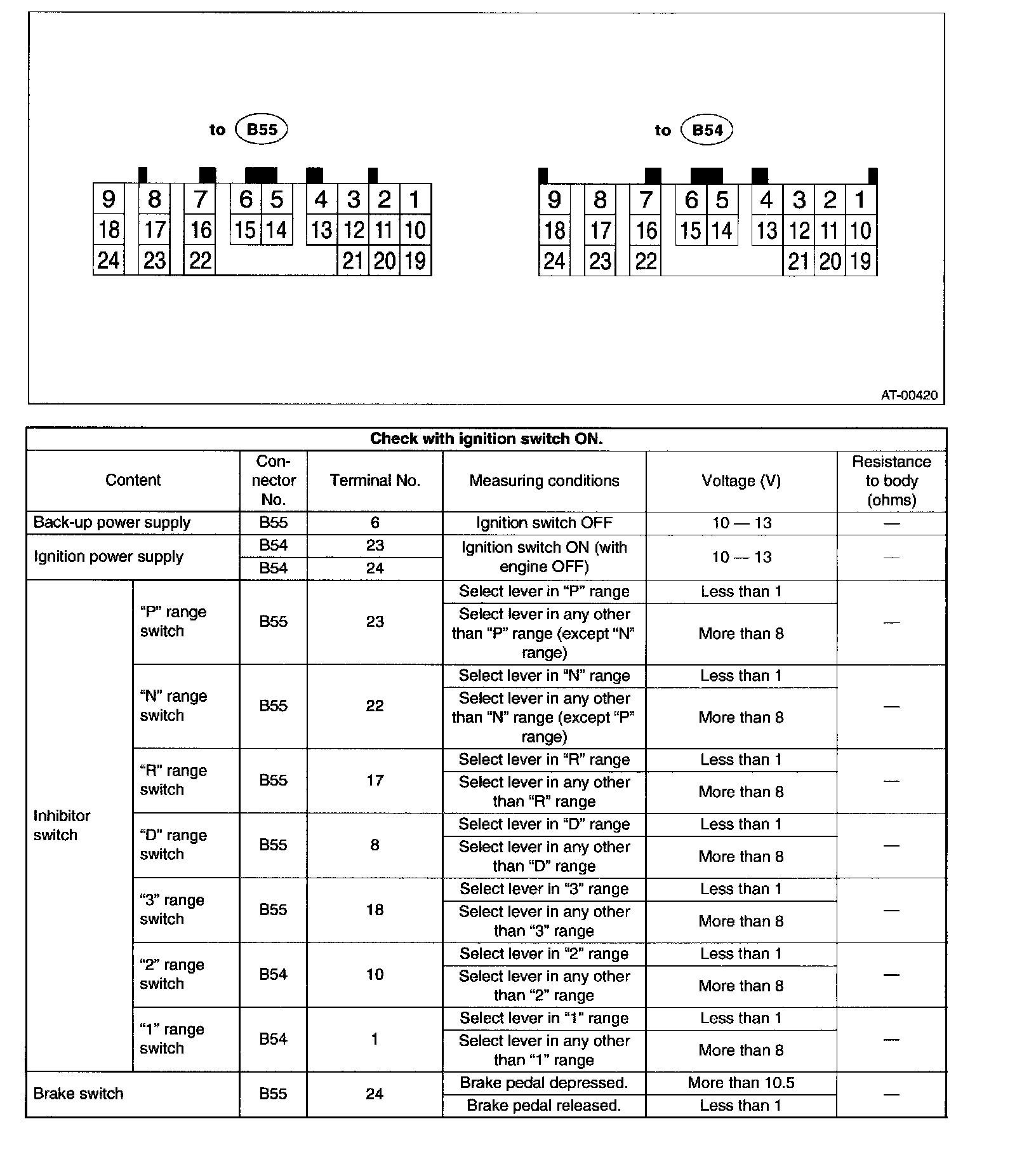

Part 1 Of 3:

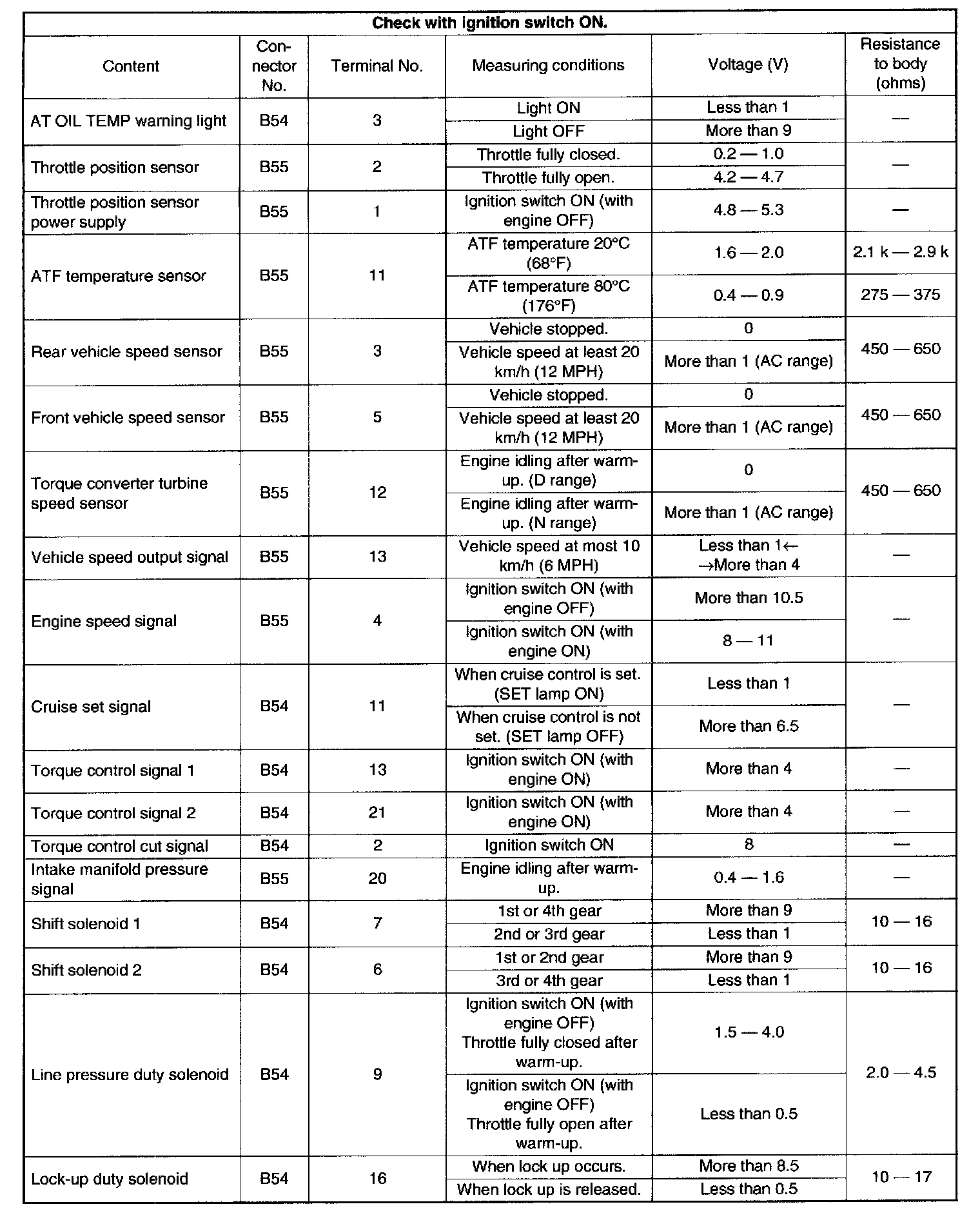

Part 2 Of 3:

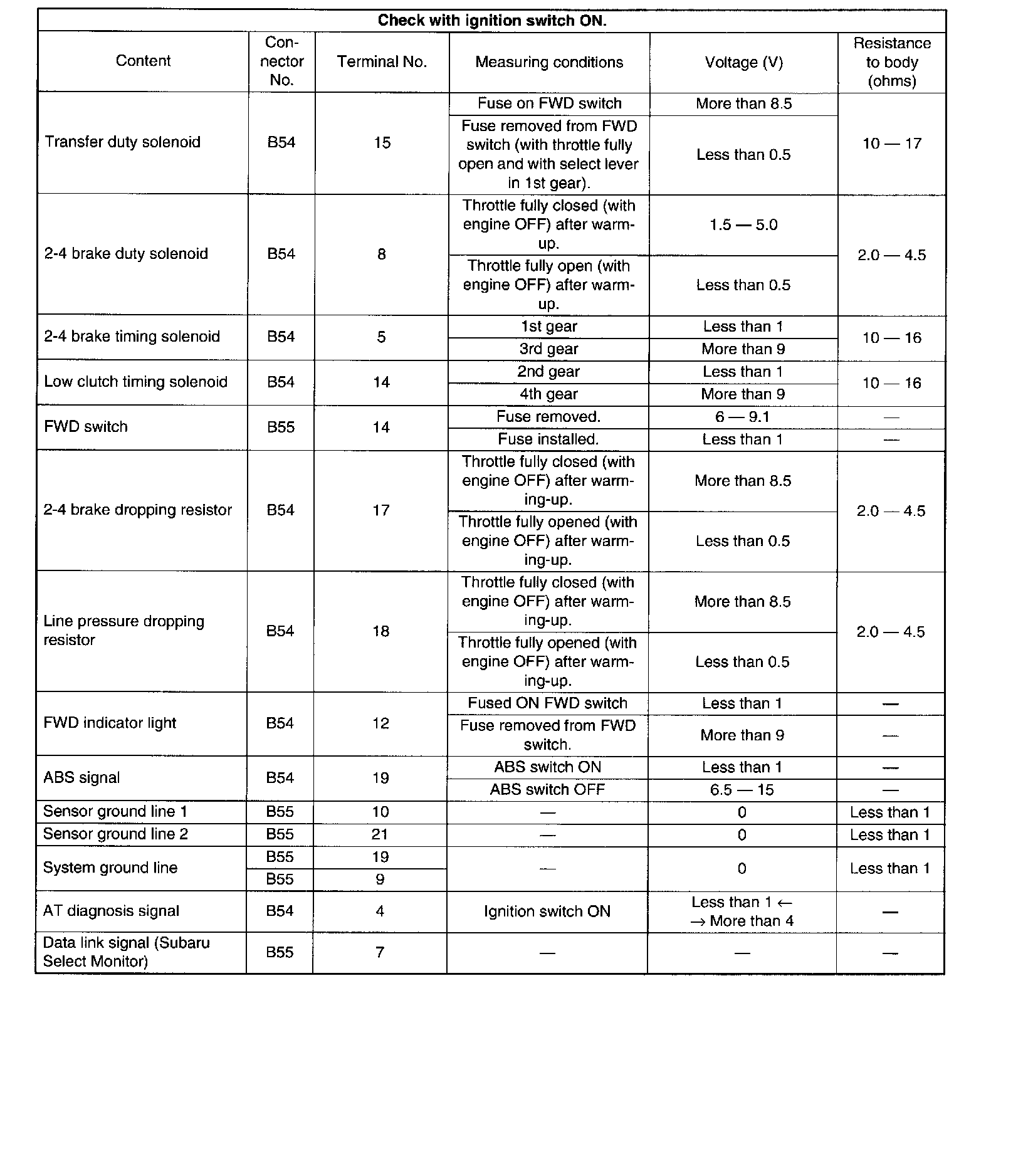

Part 3 Of 3:

ELECTRICAL SPECIFICATION
