Rear Quarter Glass: Removal
Remove the glass in the same procedure as for windshield glass. Refer to
REMOVAL
, Windshield Glass.

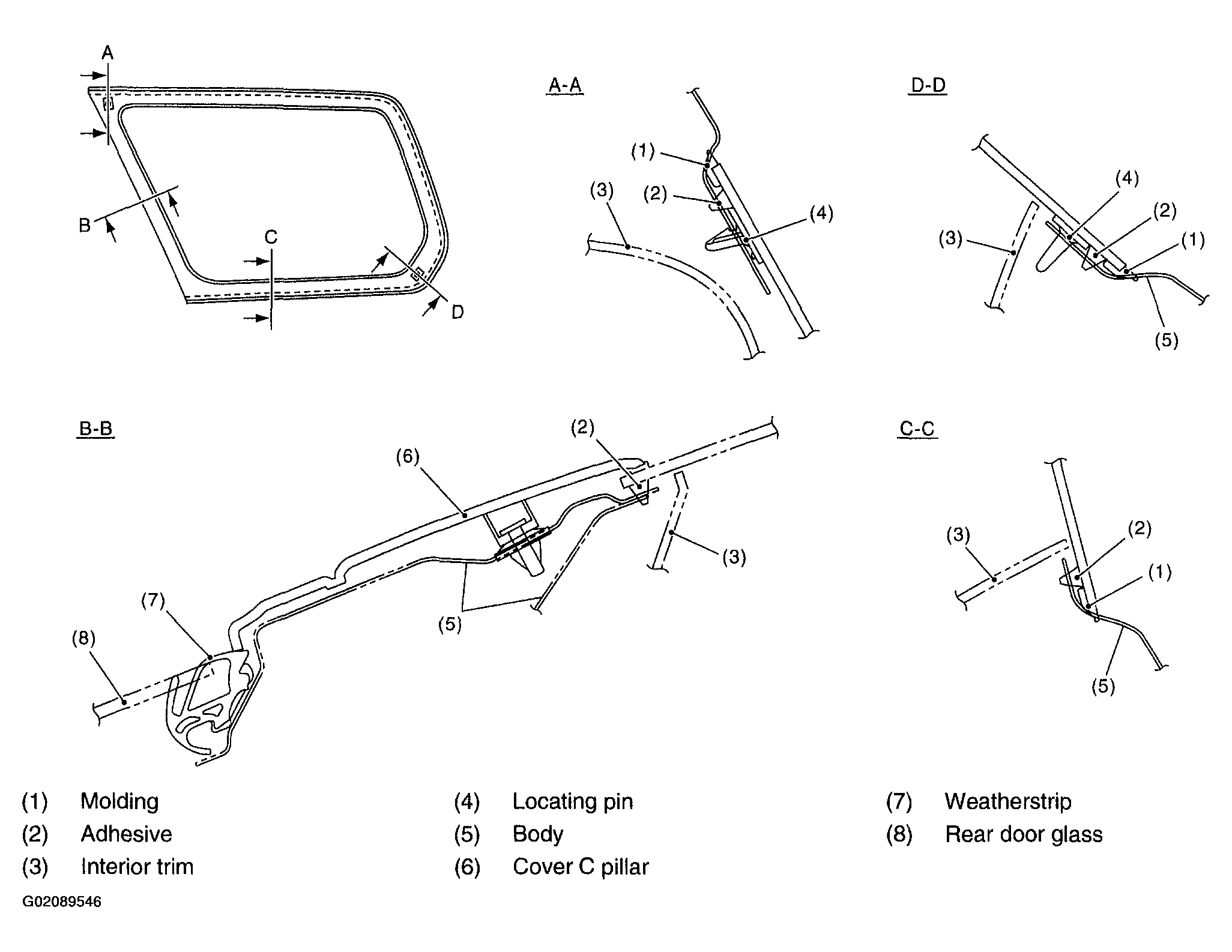

Fig 1: Identifying Components Of Rear Quarter Glass
Courtesy of SUBARU OF AMERICA, INC.
