General Description
>>
Component
>>
At Select Lever
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
At Select Lever

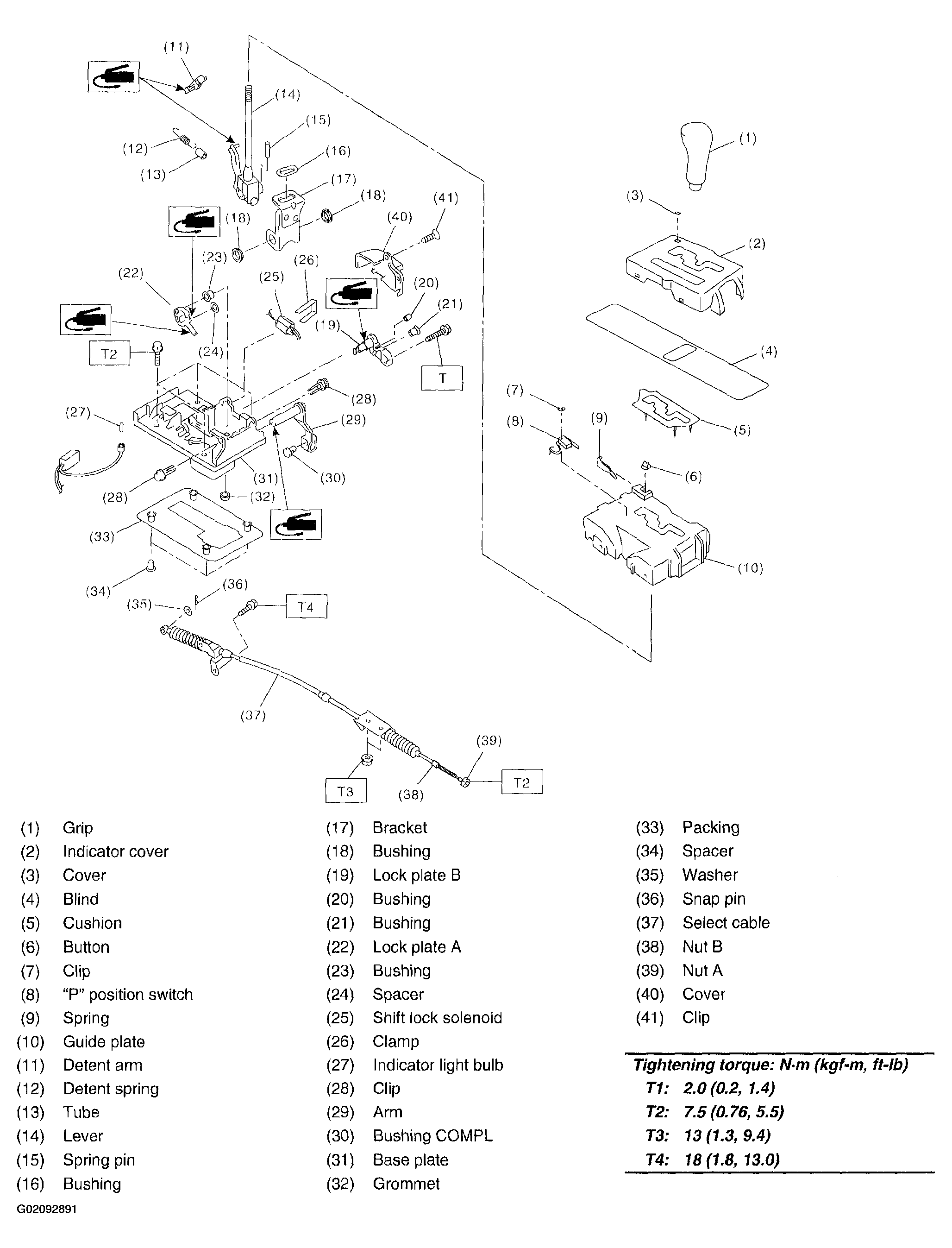

Fig 1: Identifying Automatic Transmission Select Lever Components
Courtesy of SUBARU OF AMERICA, INC.
