Oil Pump

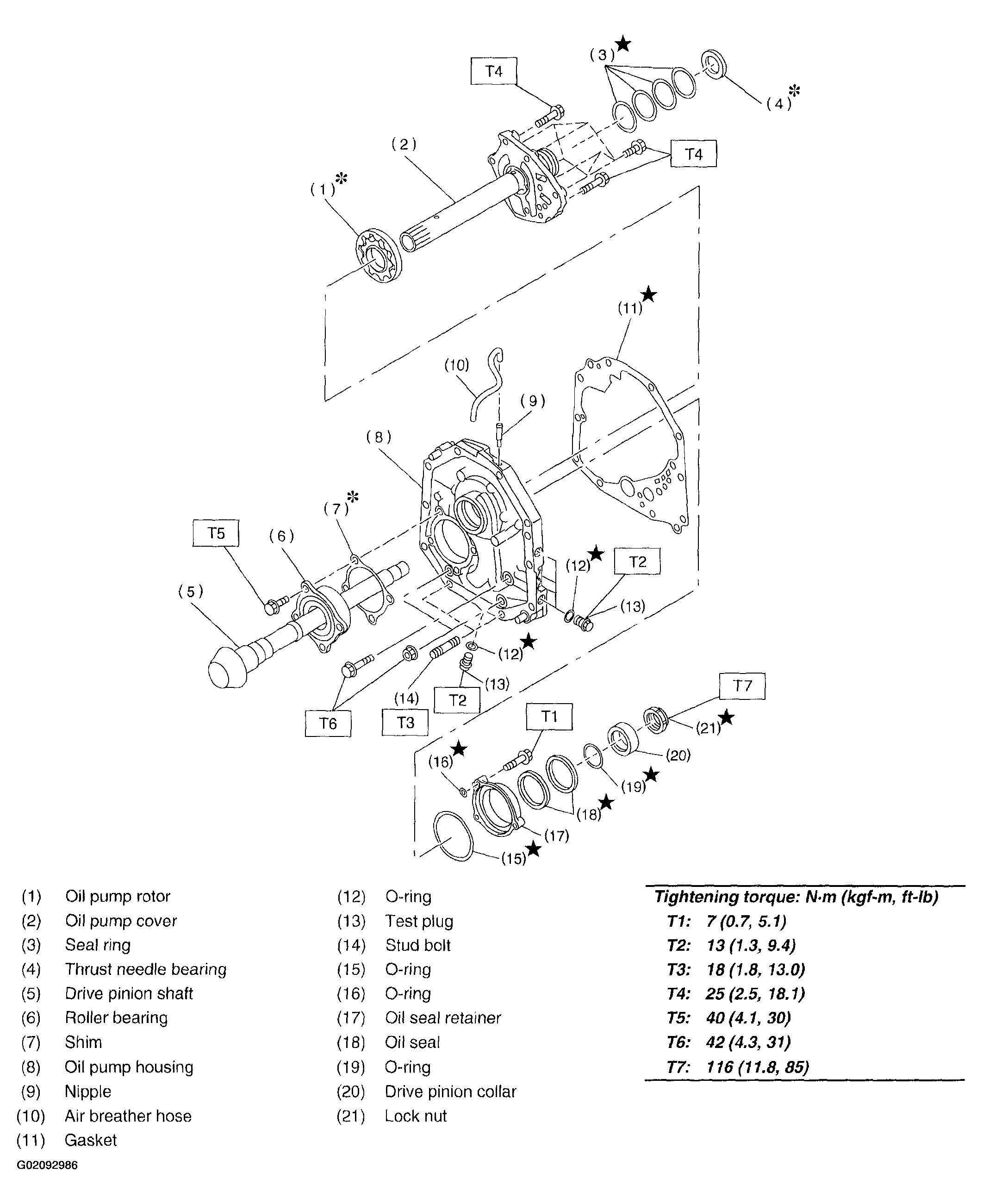

Fig 1: Exploded View Of Oil Pump With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
