Pitching Stopper

  1. Disconnect the ground cable from battery.
  2. Remove the air cleaner case. Refer to REMOVAL , Air Cleaner Case.
  3. Remove the pitching stopper.

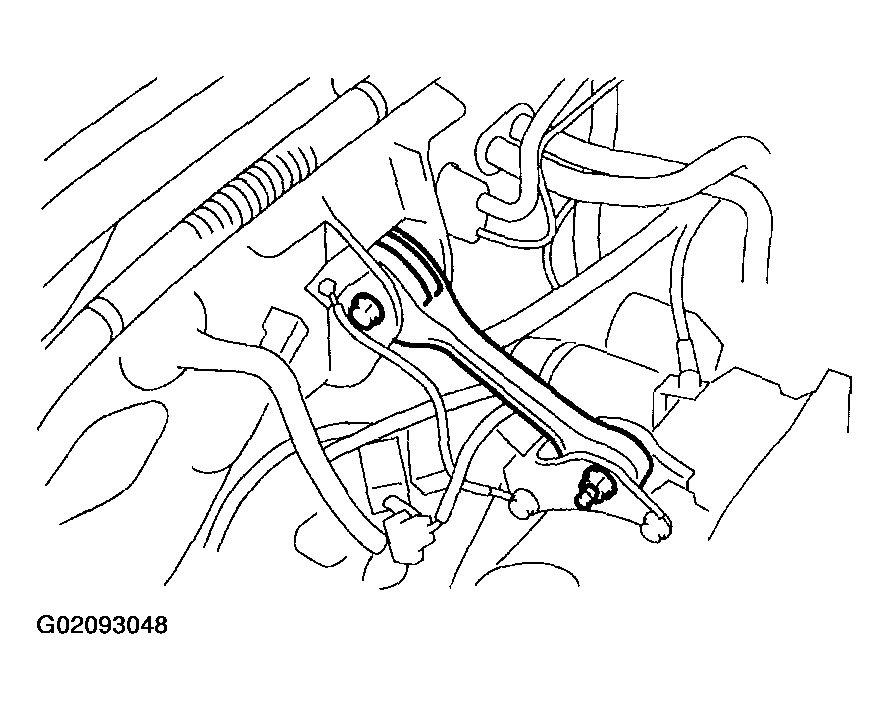

    Fig 1: Removing Pitching Stopper
    G02093048Courtesy of SUBARU OF AMERICA, INC.
