Oil Pressure System: Inspection

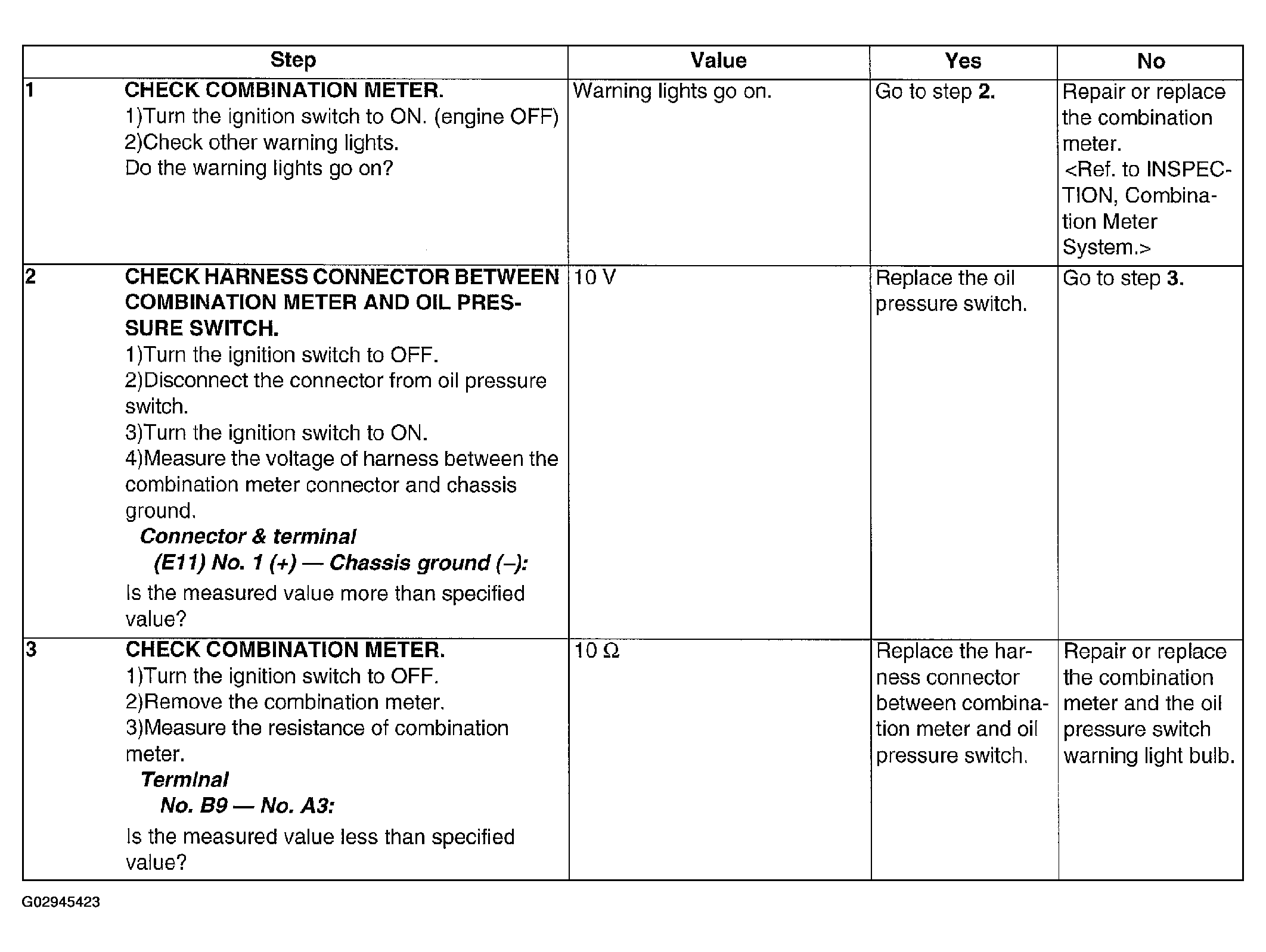

Fig 1: Oil Pressure System Inspection Table
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
