Cruise Control Command Switch: Removal

WARNING: Before servicing, be sure to read the notes in the AB section for proper handling of the driver's AIRBAG module. See AIR BAG SAFETY PRECAUTIONS , General Description.

Set the front wheels in straight ahead position.
Turn ignition switch OFF.
Disconnect the ground terminal from battery and wait for at least 20 seconds before starting work.
Using TORX(R) BIT T30 (Tamper resistant type), loosen two TORX(R) bolts which secure driver's AIRBAG module.

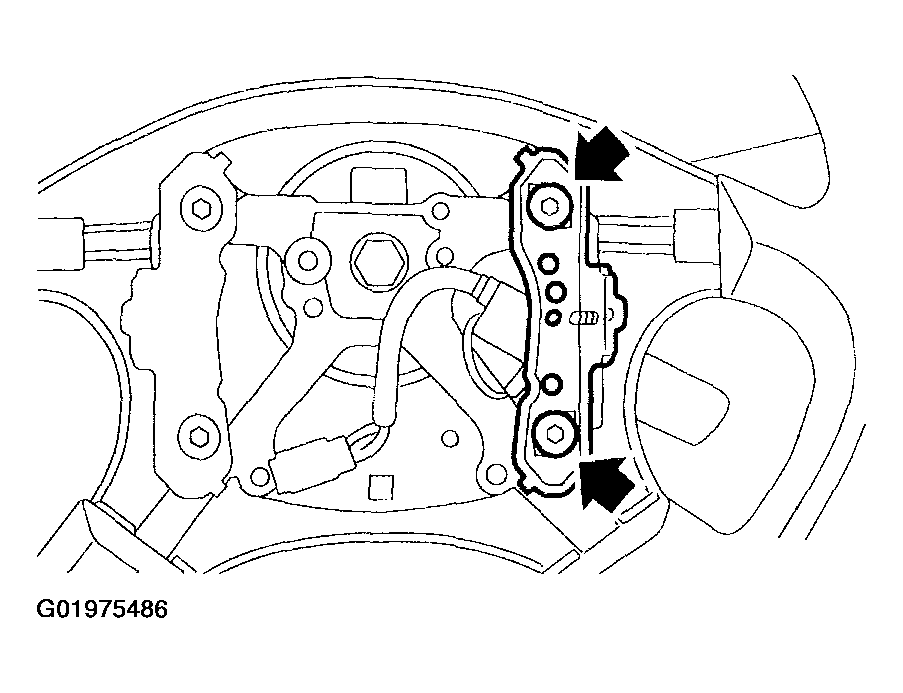

Fig 1: Loosening Bolts Securing Driver's Airbag Module
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the AIRBAG module connector on back of the AIRBAG module.
Remove the horn switch from the steering wheel as shown.

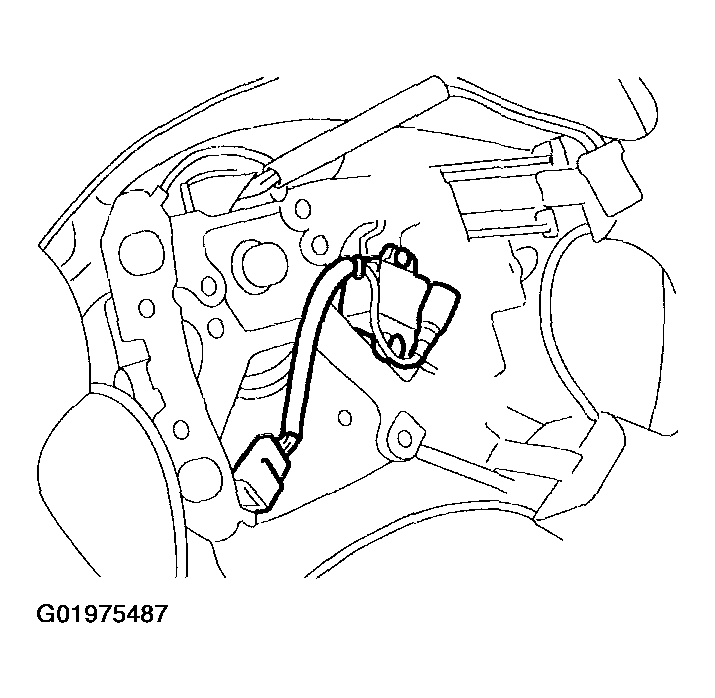

Fig 2: Removing Horn Switch From Steering Wheel
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the horn and cruise control command switch connector, then remove the cruise control command switch.

Fig 3: Disconnecting Horn & Cruise Control Command Switch Connector
Courtesy of SUBARU OF AMERICA, INC.
