Ignition System - SOHC: General Description: Components

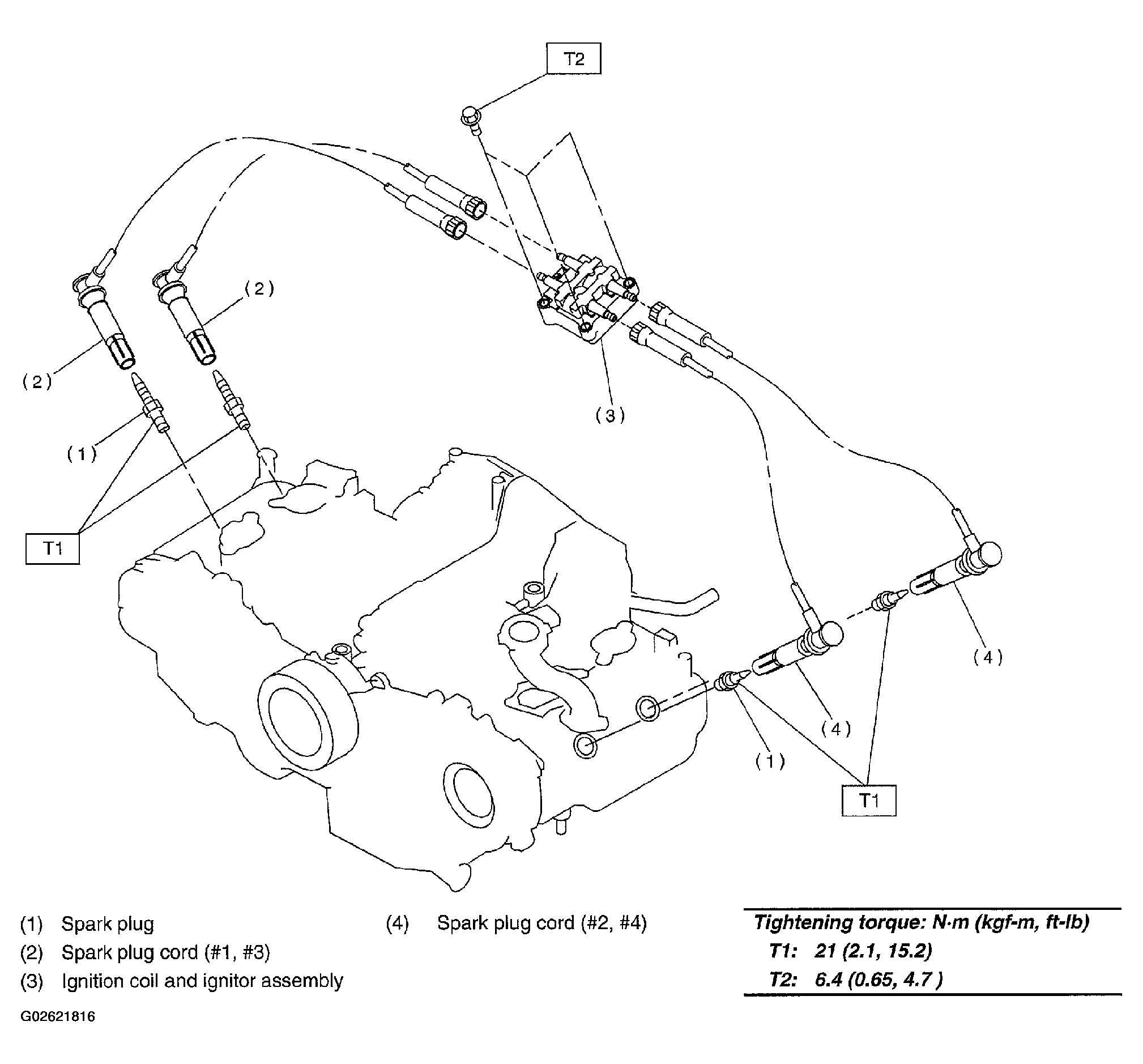

Fig 1: Ignition System Replacement Components With Torque Specifications
G02621816Courtesy of SUBARU OF AMERICA, INC.
