Sub Frame: Removal

Lift-up the vehicle.
Remove the under cover.
Remove the bolt cover.

Fig 1: Removing Bolt Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the clip.

Fig 2: Removing Clip
Courtesy of SUBARU OF AMERICA, INC.
Remove the sub frame.

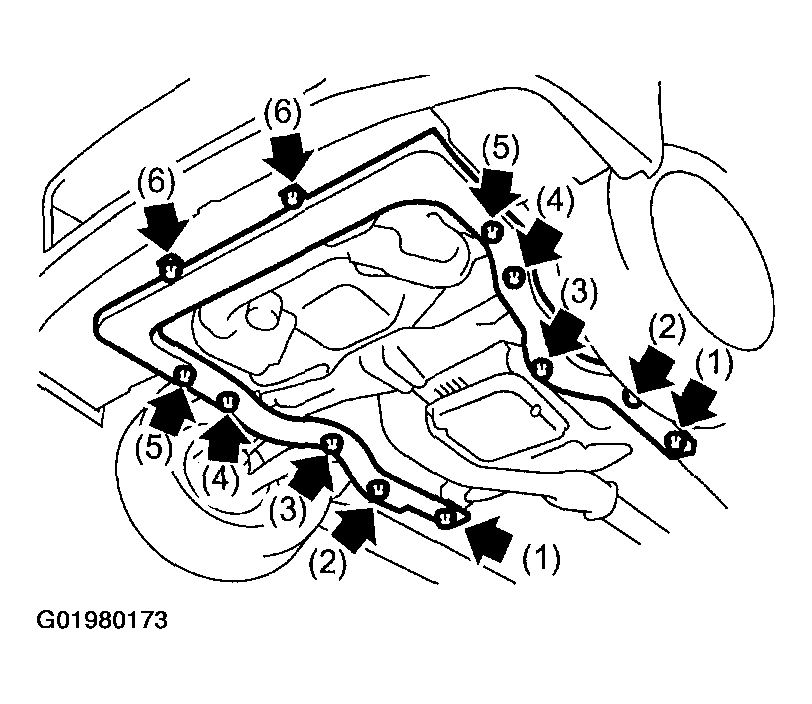

NOTE: Loosen bolt (1) and leave a few threads caught, then remove the bolts in the order of (2), (3), (4), (5), and (6).

Fig 3: Removing Sub Frame Bolts In Indicated Order
Courtesy of SUBARU OF AMERICA, INC.
