Check Key Warning Switch
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Check Key Warning Switch

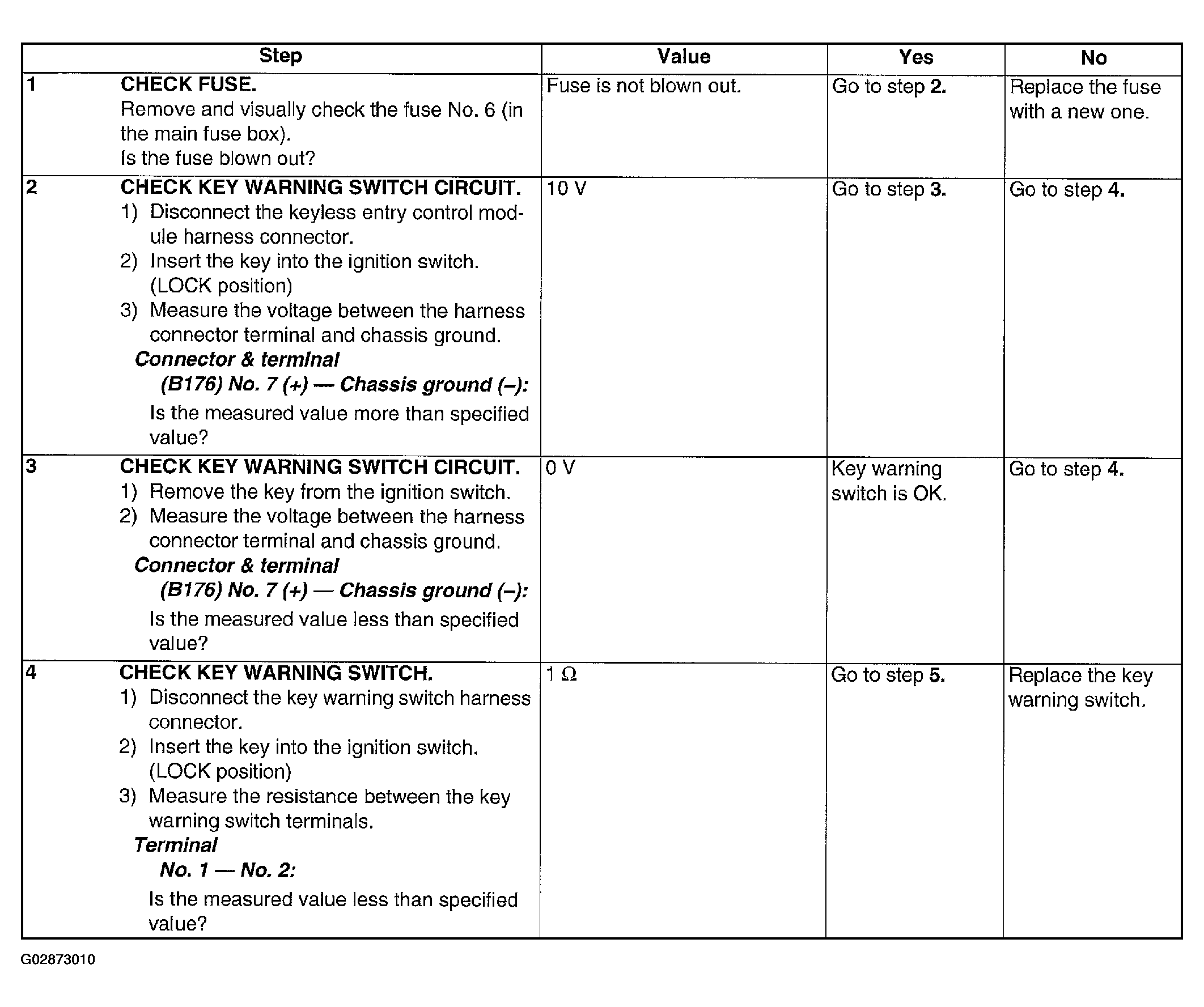

Fig 1: Checking Key Warning Switch Chart (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

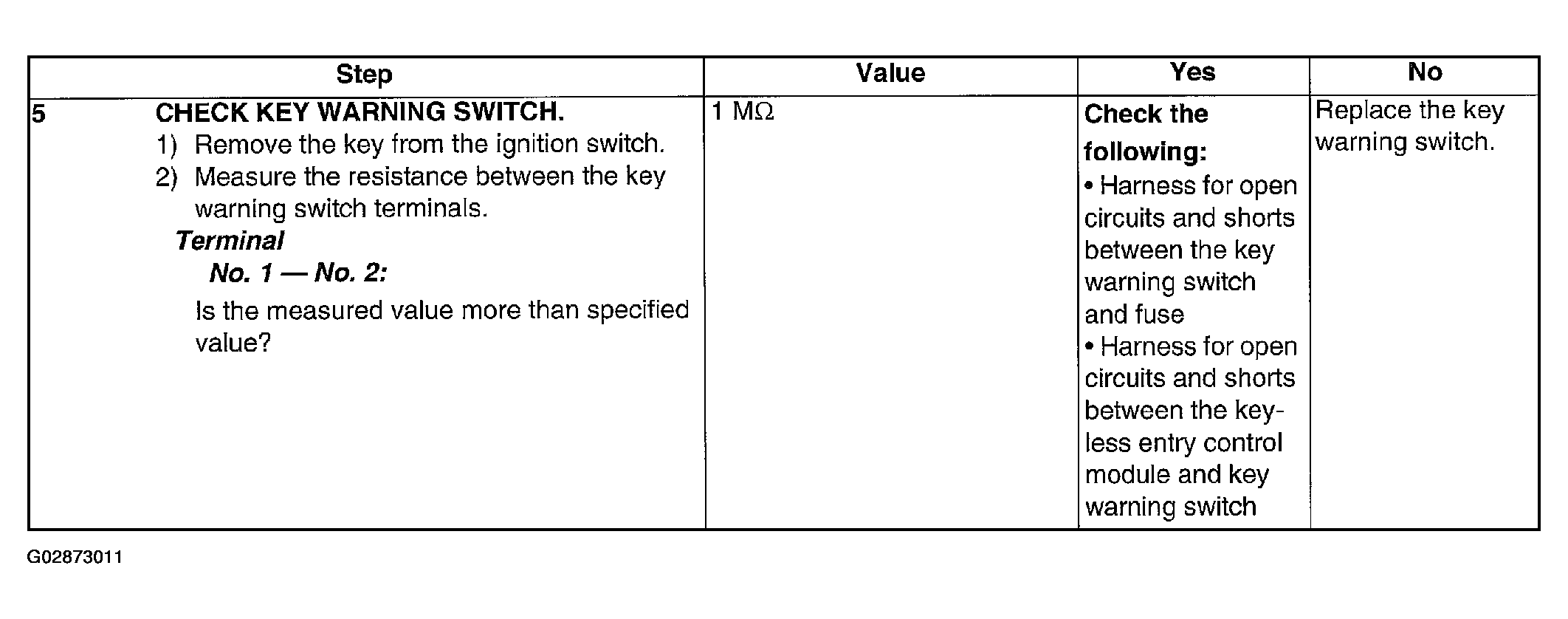

Fig 2: Checking Key Warning Switch Chart (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
