Front Regulator and Motor Assembly: Removal

Remove door trim. < Ref. to REMOVAL , Front Door Trim.>
Remove sealing cover. < Ref. to REMOVAL , Front Sealing Cover.>
Remove inner remote. < Ref. to REMOVAL , Front Inner Remote.>
Remove door glass. < Ref. to REMOVAL , Front Door Glass.>
Disconnect electrical connector.
Loosen four bolts and two nuts to pull out regulator assembly.

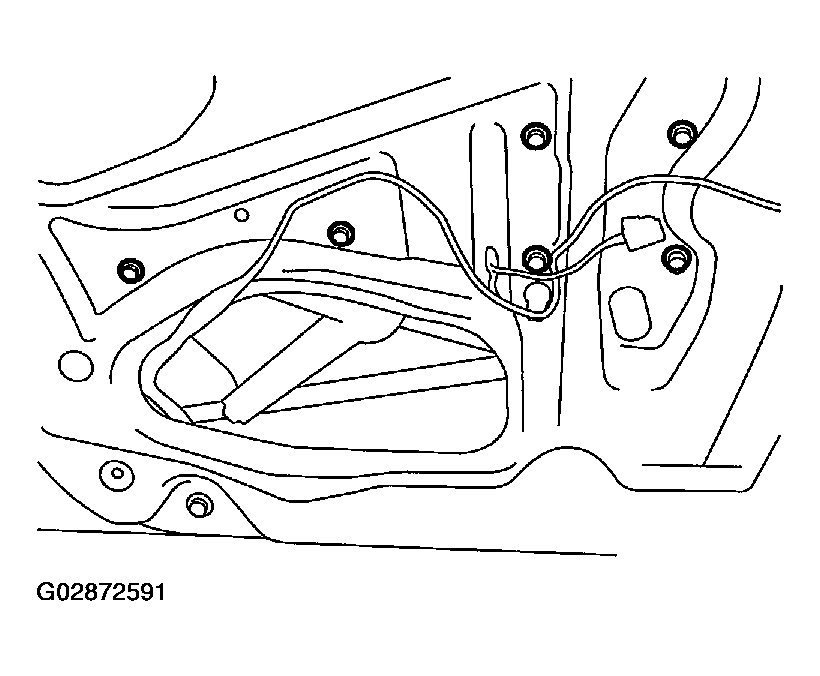

Fig 1: Removing Regulator Assembly
Courtesy of SUBARU OF AMERICA, INC.
Loosen screws to remove motor assembly.

Fig 2: Removing Motor Assembly
Courtesy of SUBARU OF AMERICA, INC.
