Diagnostic Procedures:

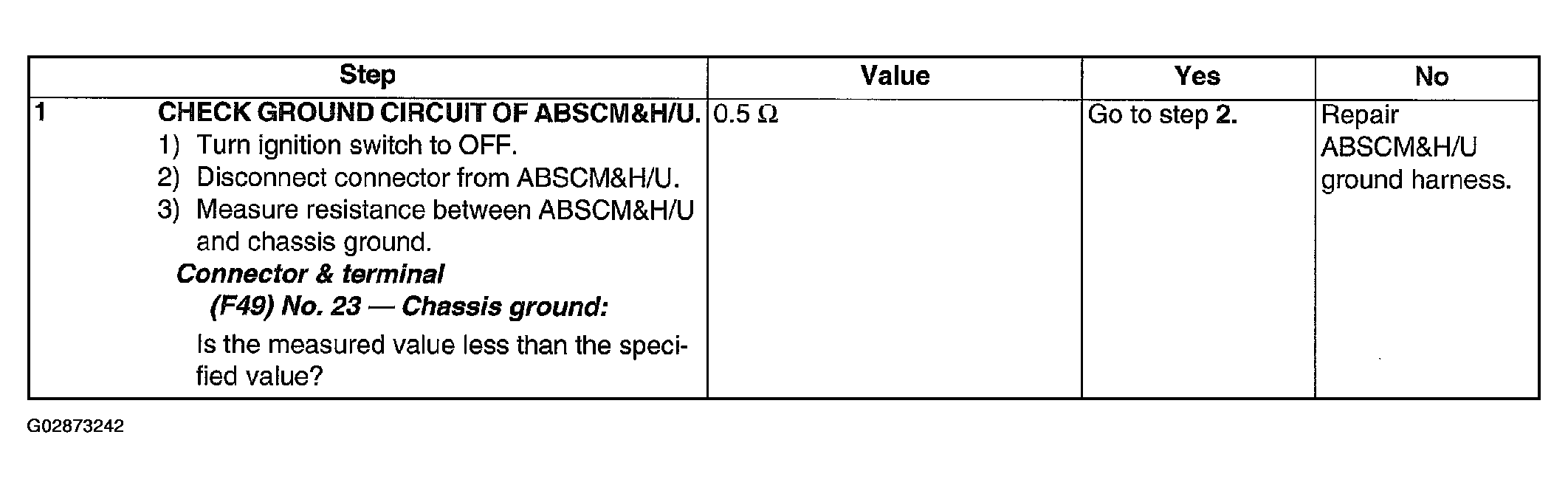

Fig 1: DTC 41: Abnormal ABS Control Module Diagnostic Chart (Step 1)
G02873242Courtesy of SUBARU OF AMERICA, INC.

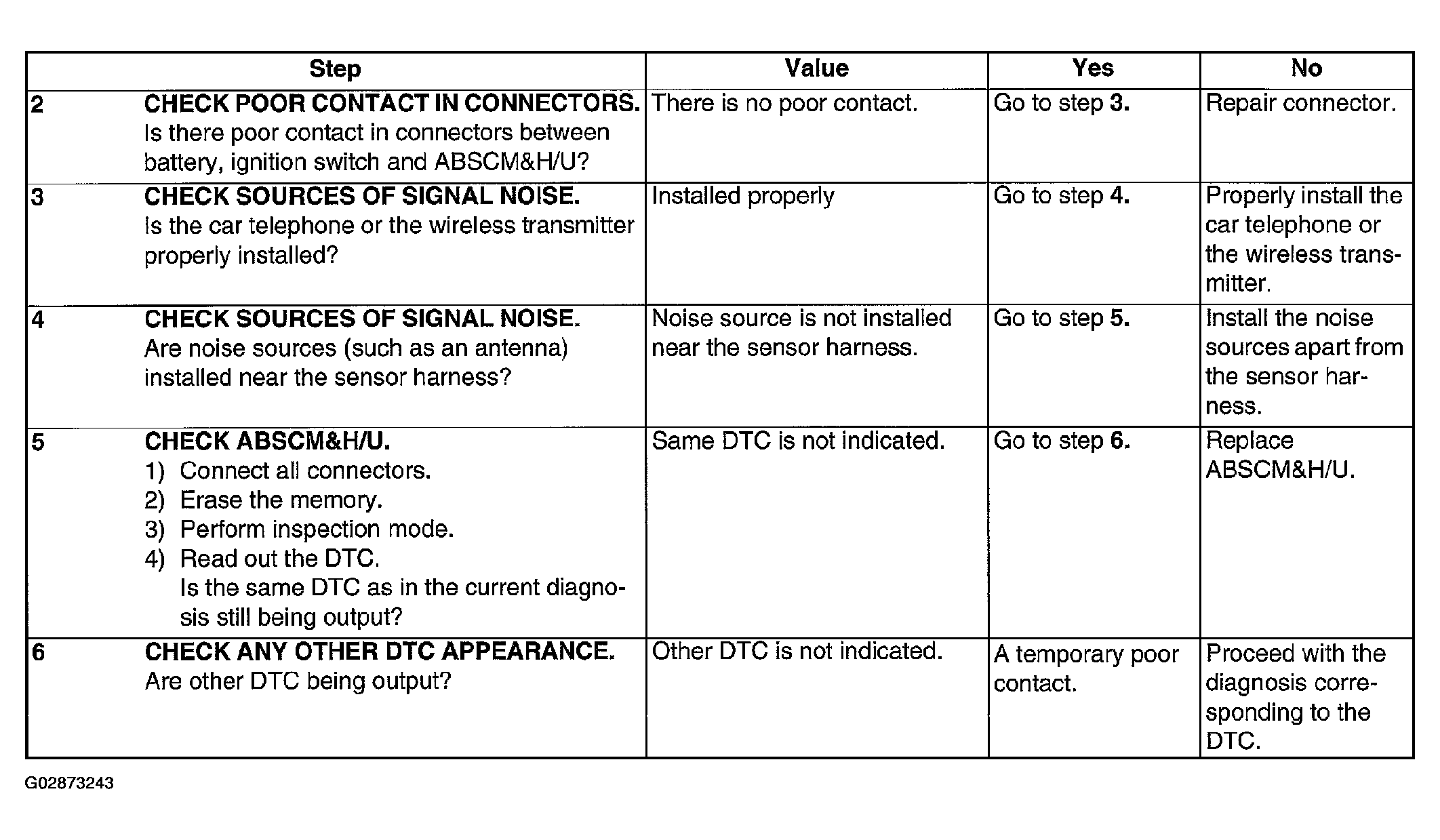

Fig 2: DTC 41: Abnormal ABS Control Module Diagnostic Chart (Steps 2 - 6)
G02873243Courtesy of SUBARU OF AMERICA, INC.
