Home >> Subaru >> 2003 >> Outback Base, 4D Sedan >> Repair and Diagnosis >> Brakes >> Traction Control >> Abs (Diagnostics) >> Diagnostics Chart with Subaru Select Monitor >> Communication For Initializing Impossible >> Diagnostic Procedures:
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Diagnostic Procedures:

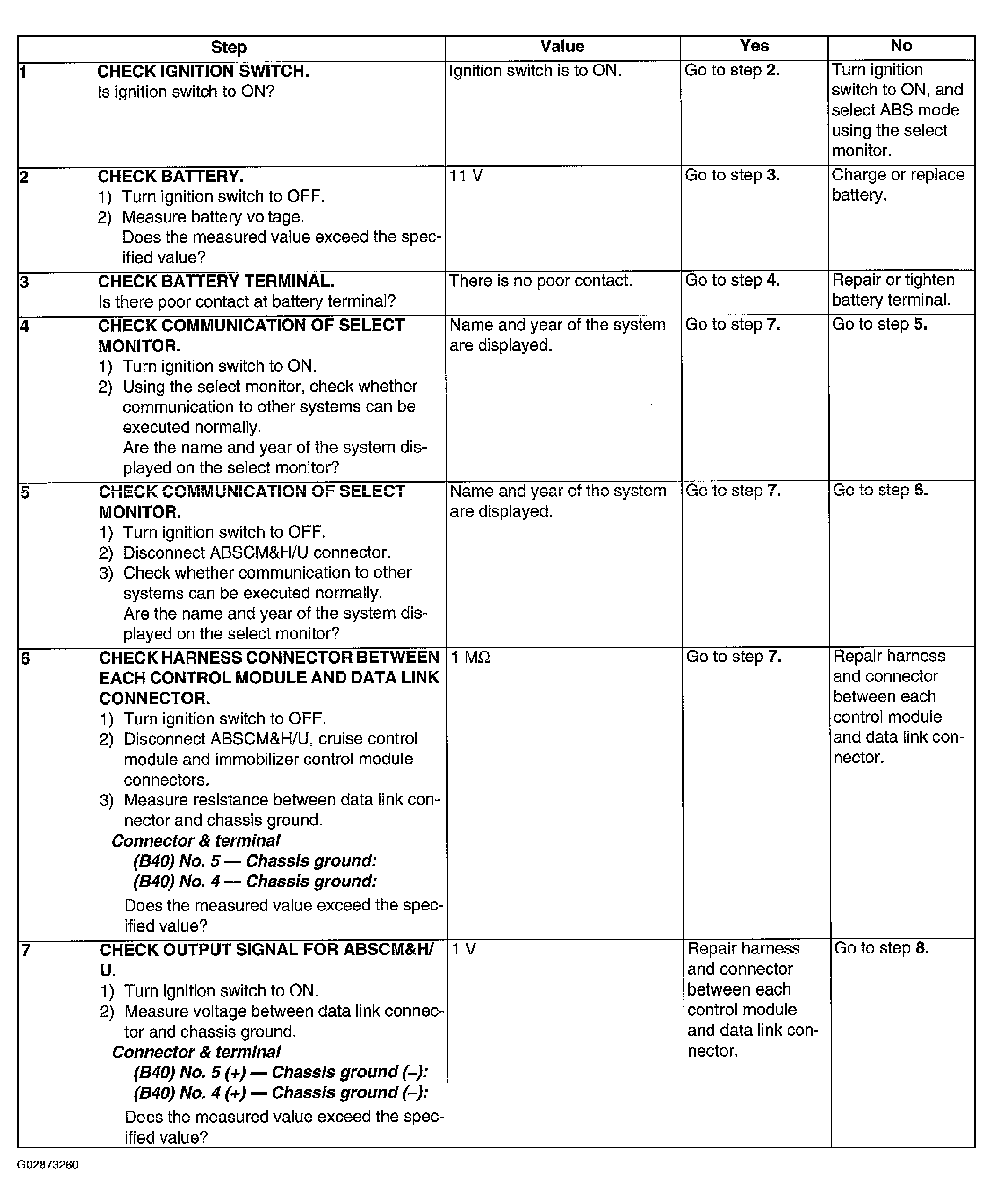

Fig 1: Communication For Initializing Impossible Diagnostic Chart (Steps 1 - 7)
G02873260Courtesy of SUBARU OF AMERICA, INC.

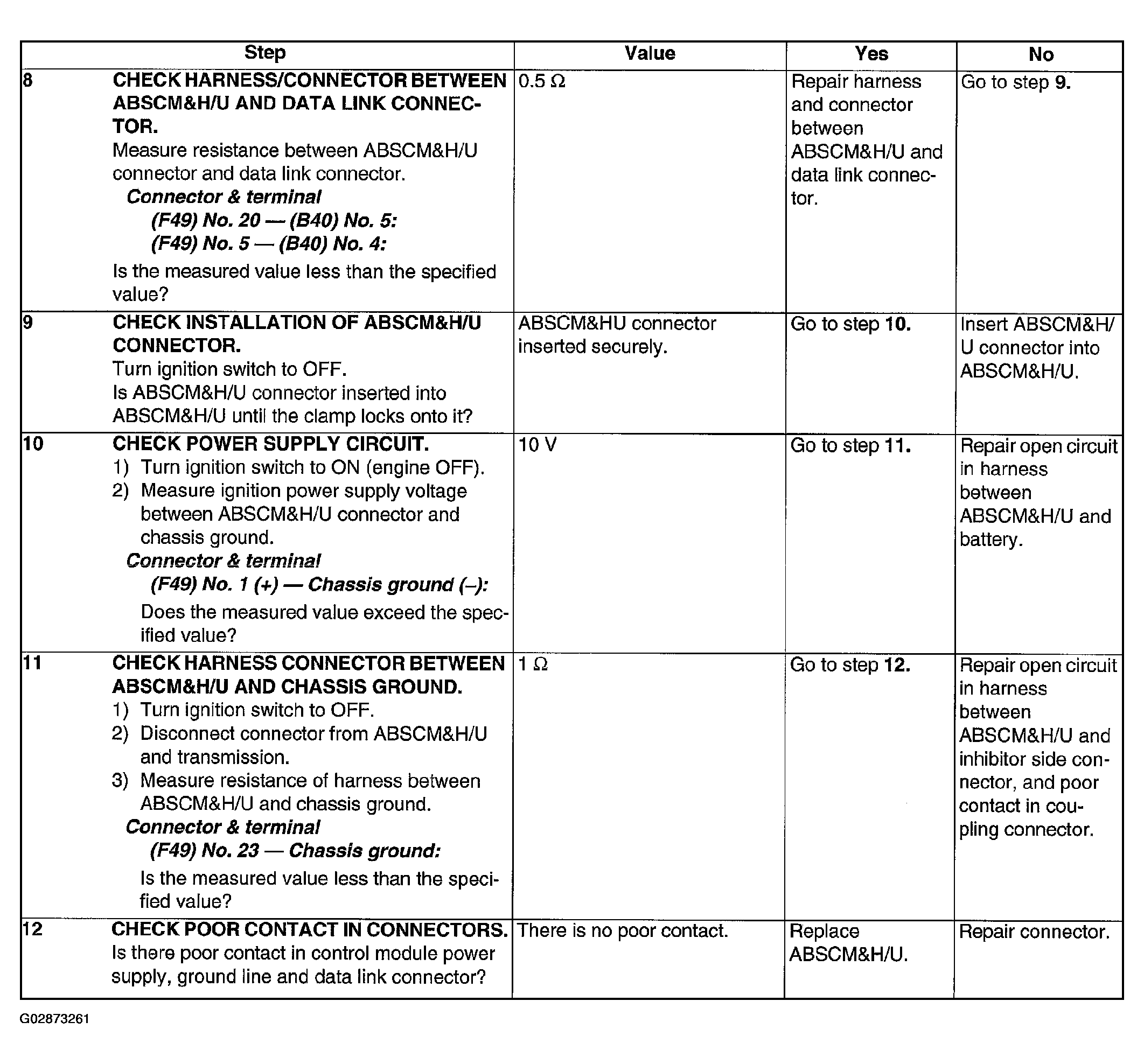

Fig 2: Communication For Initializing Impossible Diagnostic Chart (Steps 8 - 12)
G02873261Courtesy of SUBARU OF AMERICA, INC.
