Without SUBARU Select Monitor

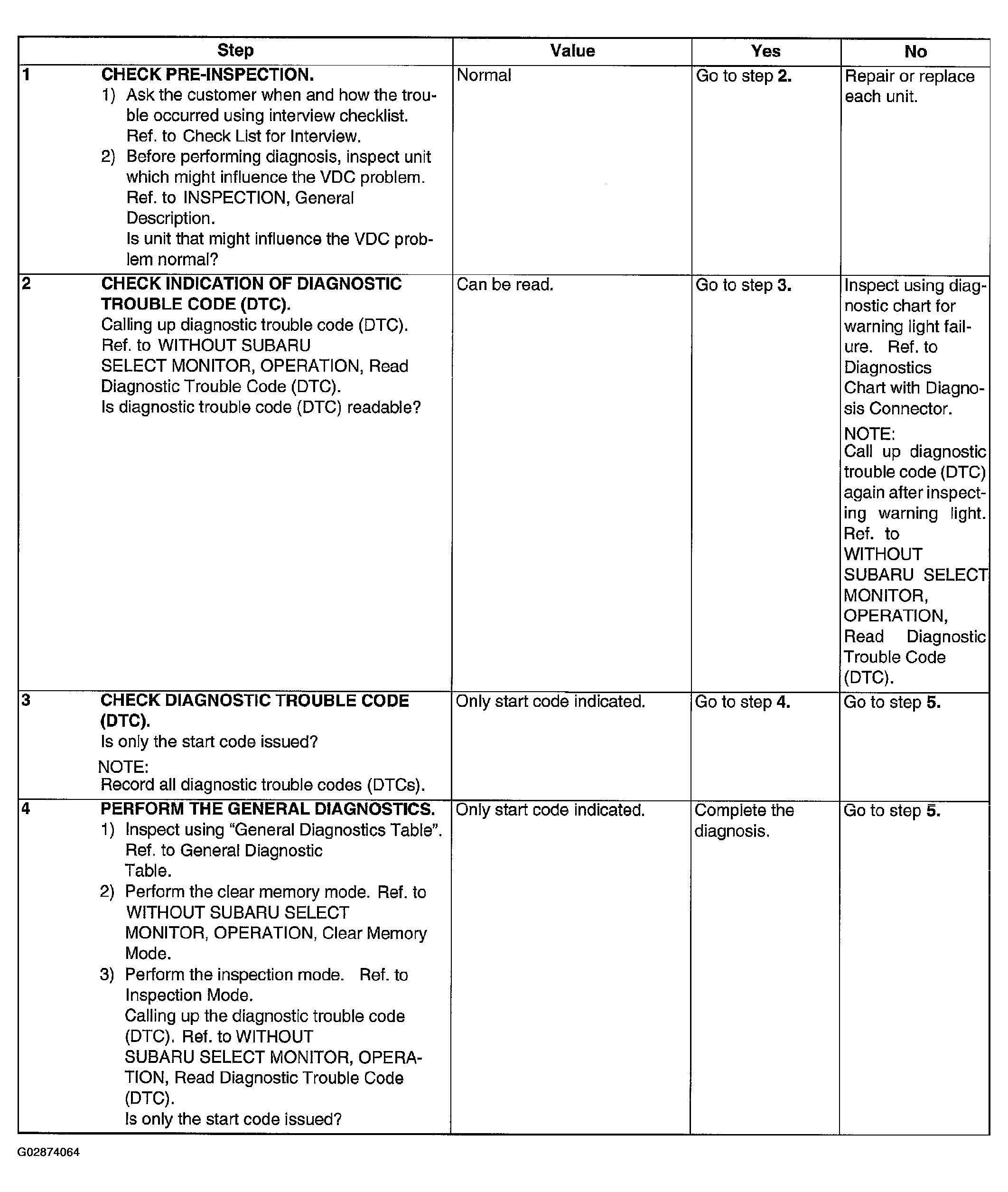

Fig 1: Basic Diagnostics Chart (Without Subaru Select Monitor - Steps 1 - 4)

Courtesy of SUBARU OF AMERICA, INC.

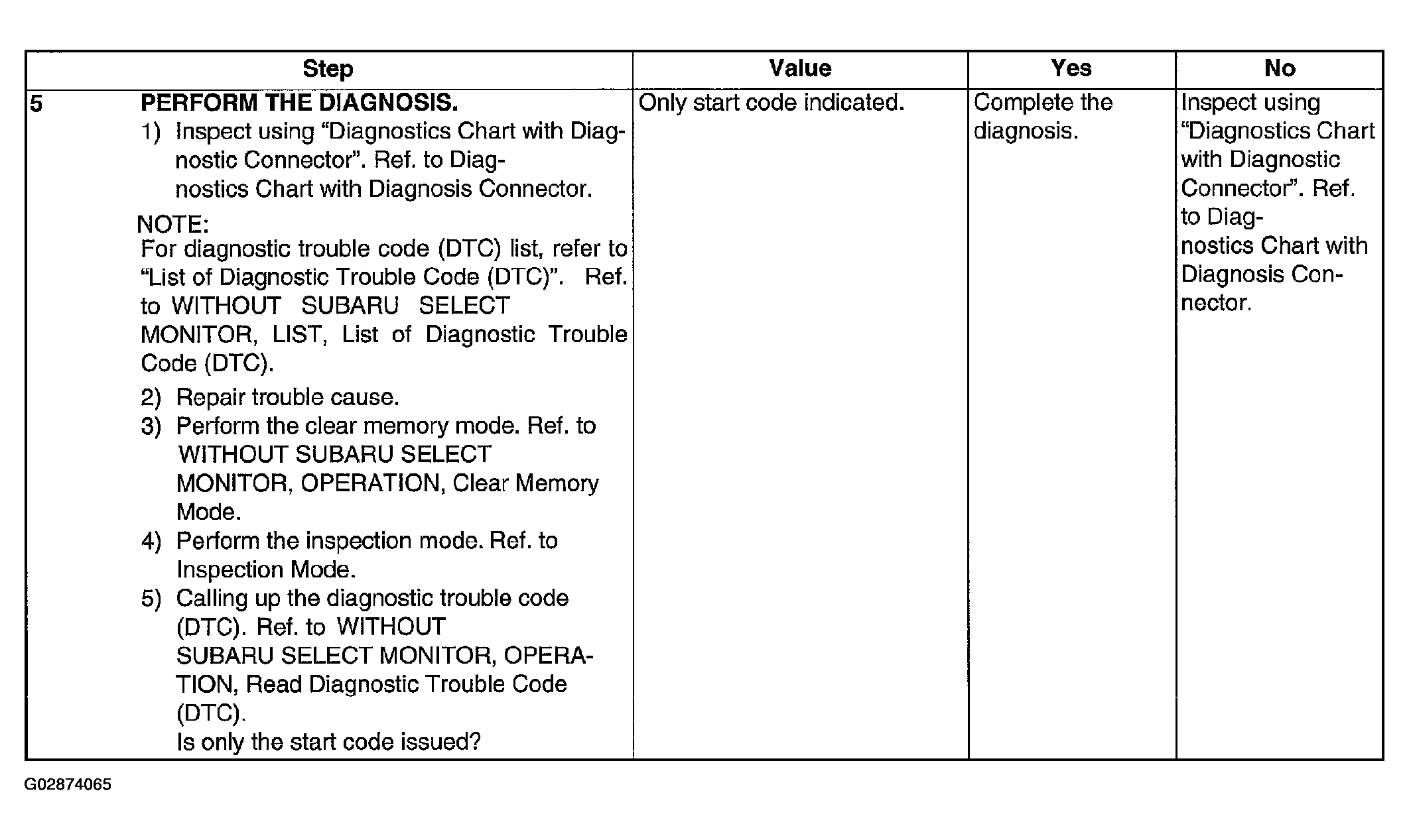

Fig 2: Basic Diagnostics Chart (Without Subaru Select Monitor - Step 5)

Courtesy of SUBARU OF AMERICA, INC.

CAUTION: Remove foreign matter (dust, water, etc.) from the VDCCM connector during removal and installation.

NOTE:

To check harness for broken wires or short circuits, shake it while holding it or the connector.
When ABS and/or VDC warning light illuminates, read and record diagnostic trouble code (DTC) indicated by ABS warning light.
