VDC Off Switch: Removal

LHD MODEL

1. Remove screws and clip from instrument panel lower cover.
2. Remove front cover (A) while disconnecting connector.
3. Remove two screws (B) and then remove center panel (C) while disconnecting connector.
   Fig 1: Removing Center Panel

   Courtesy of SUBARU OF AMERICA, INC.
4. Remove fitting screws, and slightly pull radio and switch assembly out from center console.

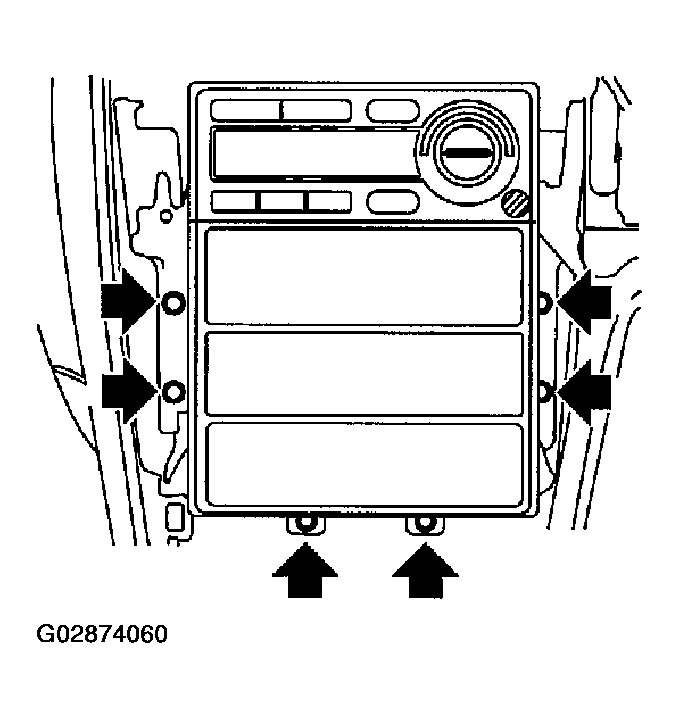

   Fig 2: Removing Fitting Screws

   Courtesy of SUBARU OF AMERICA, INC.
5. Disconnect electric connectors and antenna feeder cord and then disconnect heater control unit.
6. Remove screw and detach the bracket and then remove switch panel.

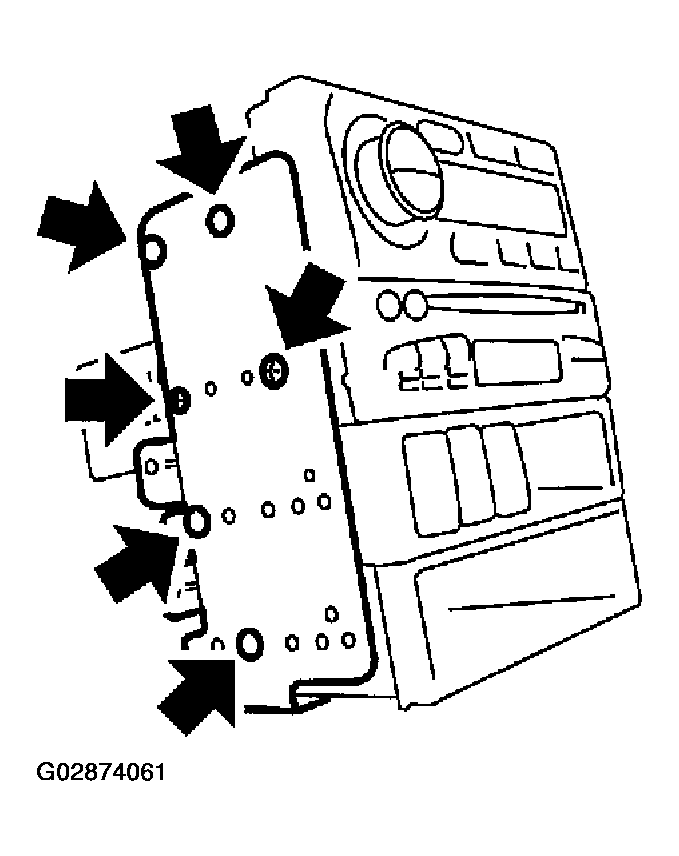

   Fig 3: Removing Switch Panel

   Courtesy of SUBARU OF AMERICA, INC.
7. Remove VDC off switch by pushing it outward.
   Fig 4: Removing VDC Off Switch

   Courtesy of SUBARU OF AMERICA, INC.
