Forester, Impreza & Outback Sport

Turn ignition off. Disconnect electrical harness connector from fuel pump relay. Fuel pump relay is a round relay located under right side of instrument panel. See Fig 1 and Fig 2 . Start and run engine until it stalls. After engine stalls, crank engine for 5 seconds. Turn ignition off. Reconnect fuel pump relay connector.

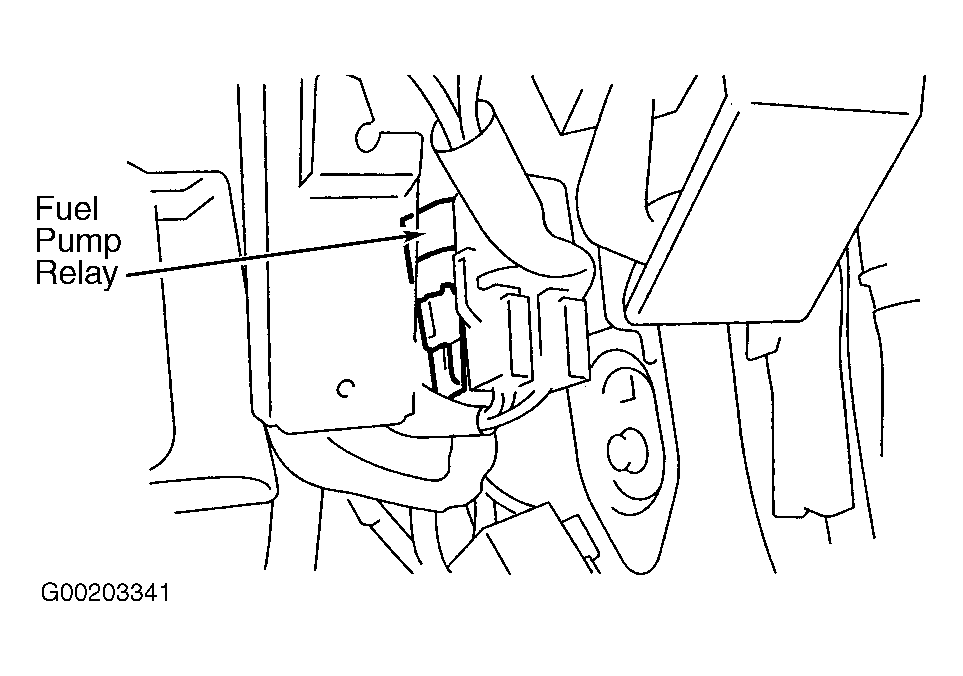

Fig 1: Locating & Identifying Fuel Pump Relay (Forester)

Courtesy of SUBARU OF AMERICA, INC.

Fig 2: Locating & Identifying Fuel Pump Relay (Impreza & Outback Sport)

Courtesy of SUBARU OF AMERICA, INC.
