Clutch Assembly

WARNING: This page is about a different variant/trim than selected.

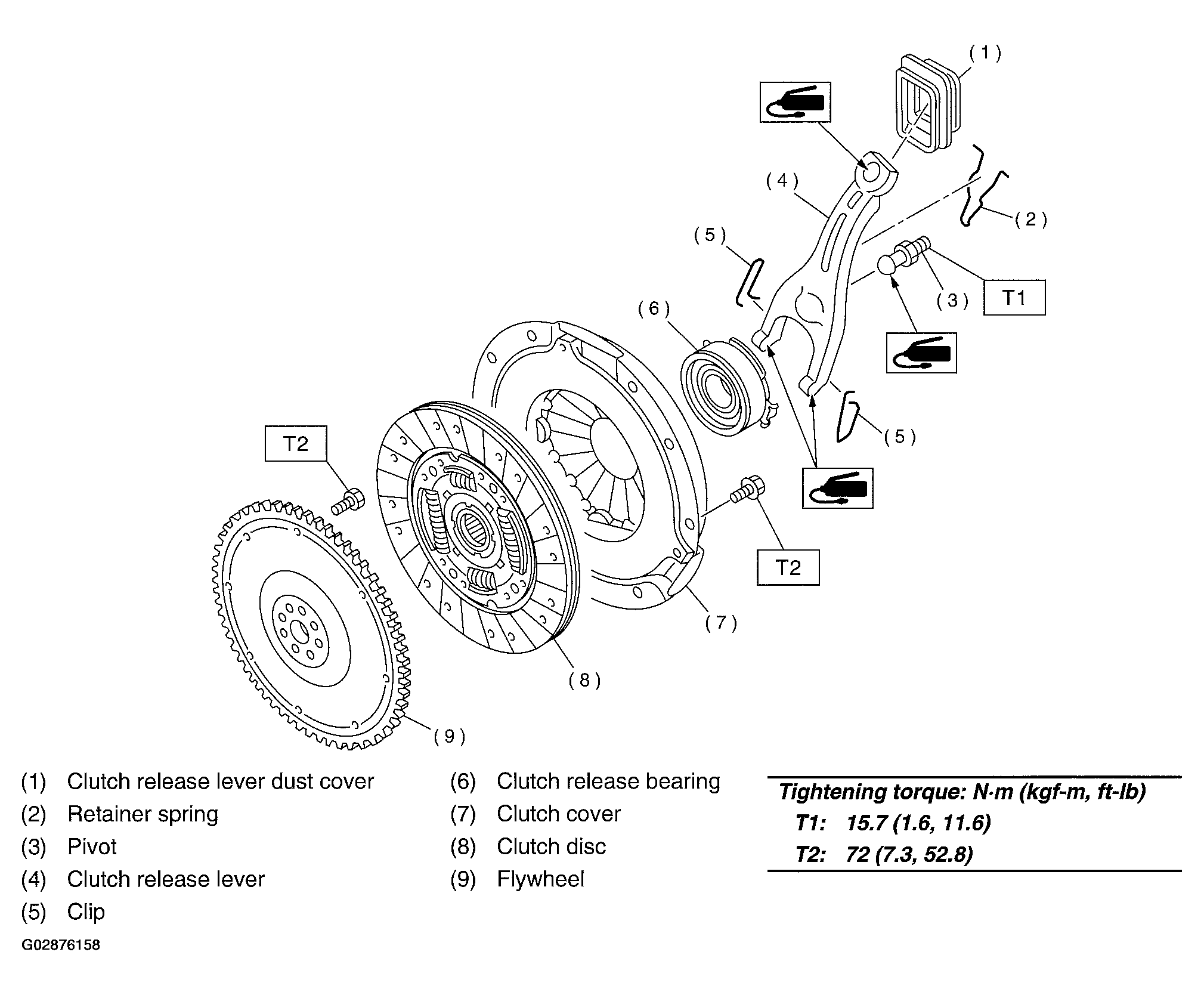

Fig 1: Clutch Assembly Components With Torque Specifications
G02876158Courtesy of SUBARU OF AMERICA, INC.
