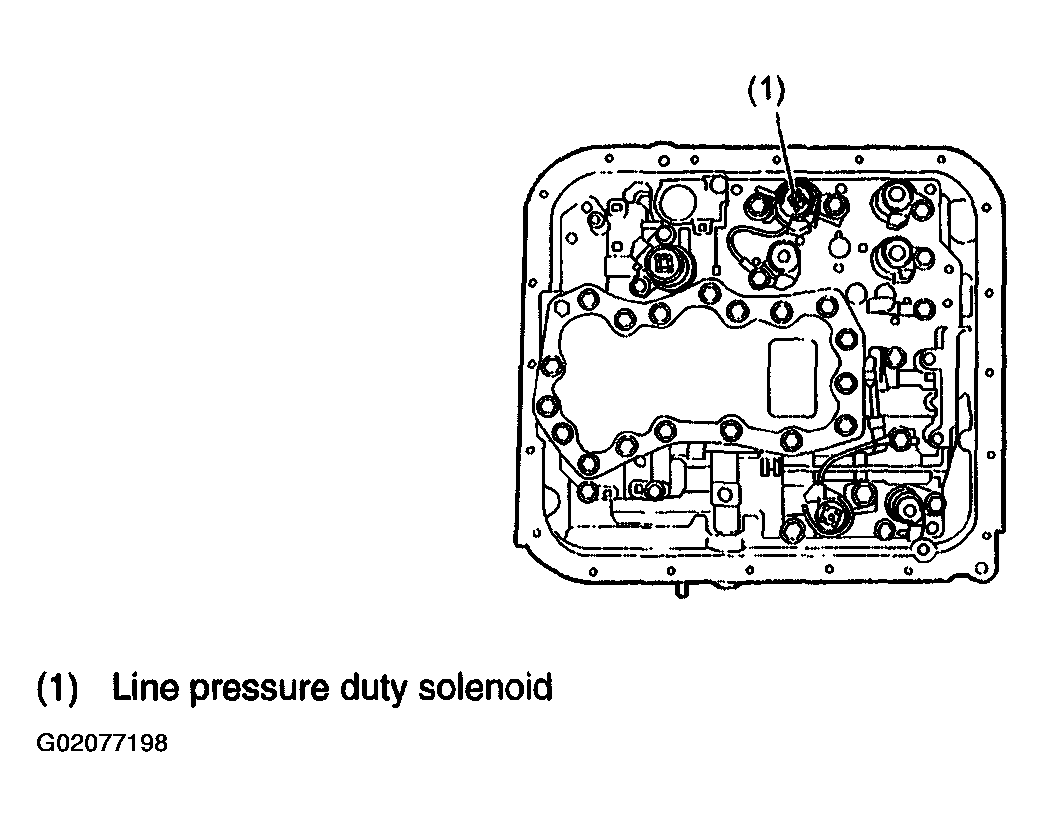

Line Pressure Duty Solenoid
This solenoid is mounted on the transmission hydraulic control valve body. Its duty ratio is controlled by signals from the TCM. This solenoid then controls the pressure modifier valve and accumulator control valve A to adjust the line pressure to an optimum pressure level suitable for operating conditions.
