Lock-Up Duty Solenoid

This solenoid is mounted on the transmission hydraulic control valve body. Its duty ratio is controlled by signals from the TCM. It then controls the lock-up control valve to provide smooth engagement and disengagement of the lock-up clutch.

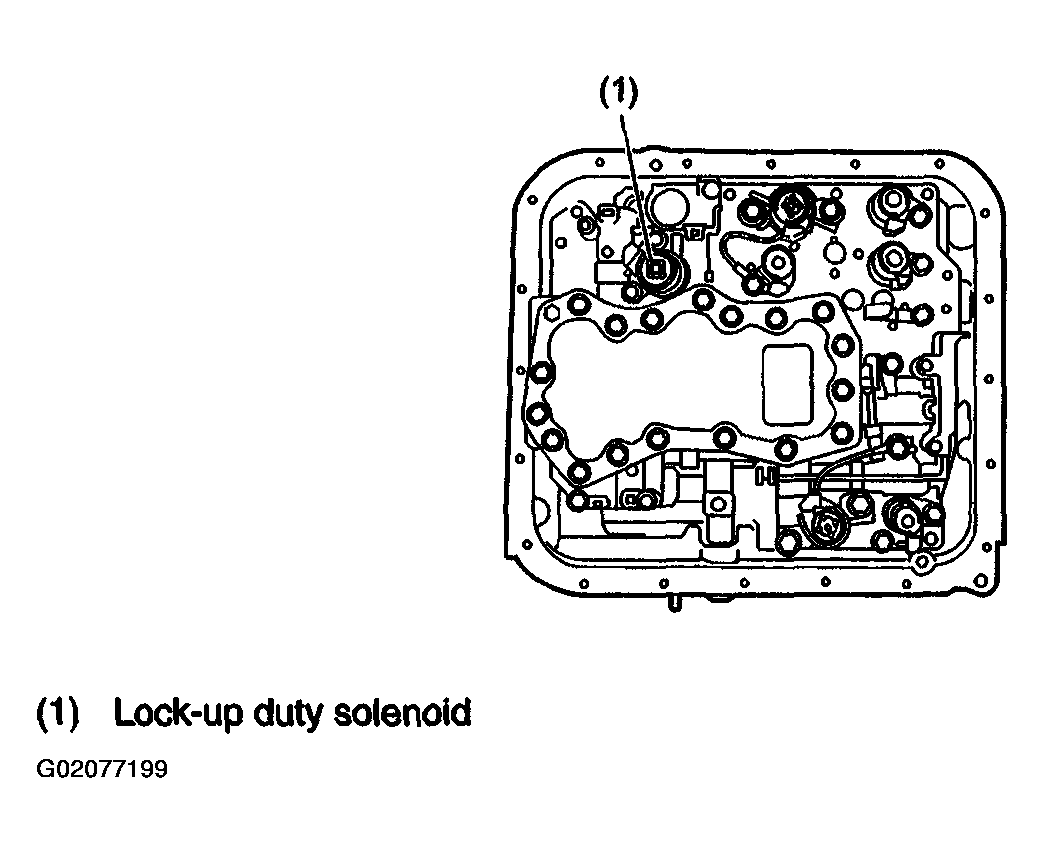

Fig 1: Identifying Lock-Up Duty Solenoid

Courtesy of SUBARU OF AMERICA, INC.
