Hydraulic Control Valve: Construction

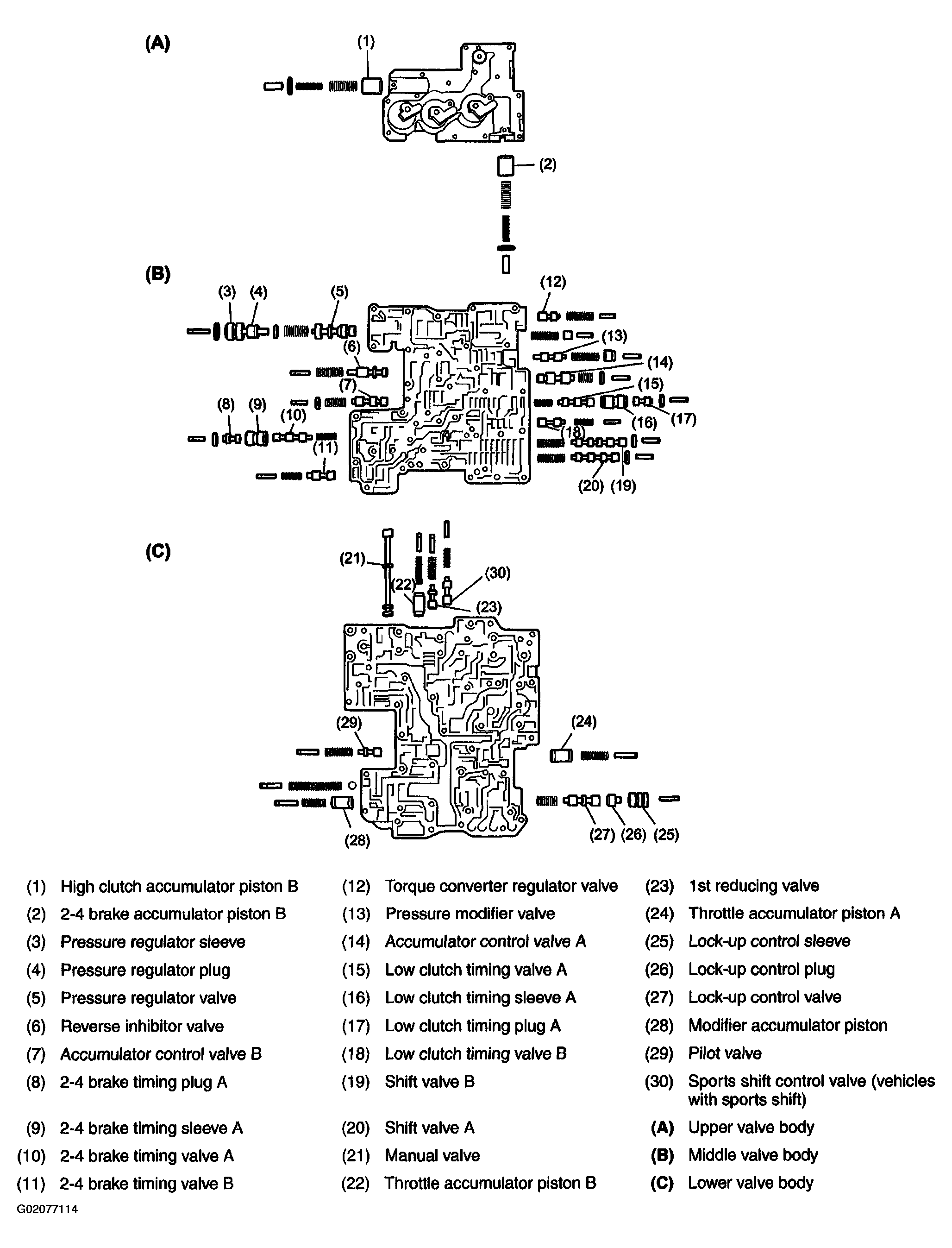

Fig 1: Identifying Hydraulic Control Valve
G02077114Courtesy of SUBARU OF AMERICA, INC.
